HW2XA2C | Veris HW2 Series Humidity Sensor, Wall, Replaceable 2%, Temperature, 1K Ohm Platinum RTD | Veris Industries

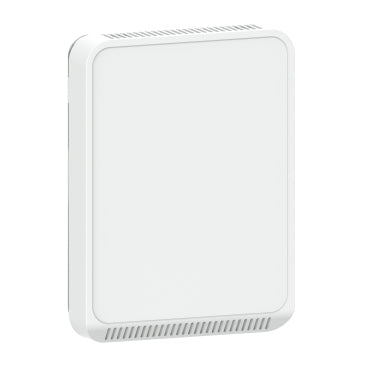

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HW2XA2C
Documents and manuals
Veris Industries HW2XA2C Documents
Overview
Details for HW2XA2C
Veris Industries HW2XA2C Combination Sensor: Precision Sensing for Industrial Applications
The Veris Industries HW2XA2C Combination Sensor is a highly accurate and reliable sensor designed for industrial applications where precise measurement is critical. It combines two sensors in one device, providing both humidity and temperature readings with exceptional accuracy and stability.
Key Features:
- Dual sensor design: Measures humidity and temperature simultaneously
- +/-2% RH accuracy: Ensures highly accurate humidity measurements
- +/-0.5% FS accuracy: Delivers precise temperature readings
- Wide measurement range: Measures humidity from 0 to 100% RH and temperature from -40°F to 150°F
- Fast response time: Provides quick and reliable sensing
- Compact size: Integrates easily into limited spaces
Benefits:
- Improved process control: Accurate humidity and temperature monitoring allows for optimal process control in industrial environments
- Reduced downtime: Early detection of humidity and temperature deviations helps prevent equipment failures and minimize downtime
- Enhanced safety: Precise sensing enables proactive measures to maintain safe working conditions
- Increased productivity: Optimized humidity and temperature levels contribute to efficient operation and increased productivity
Applications:
The Veris Industries HW2XA2C Combination Sensor finds applications in a wide range of industrial settings, including:
- Environmental monitoring: Data centers, server rooms, manufacturing facilities
- Process control: Food and beverage processing, pharmaceutical manufacturing
- HVAC systems: Maintaining optimal humidity and temperature levels for comfort and energy efficiency
- Research and development: Laboratories and testing facilities where accurate sensing is essential
Shop now with our HVAC supply store for the best prices and fast shipping on the Veris Industries HW2XA2C Combination Sensor. Trust our expertise for all your industrial supply needs. The Veris HW2 Series of humidity sensors for rooms is a flexible multi-sensor platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is medium matte white. No user interface, the device is protected by a blank cover. This air quality sensor include a 1K Ohm Platinum RTD and humidity elements. The relative humidity sensor is replaceable with a NIST certified version, 1 or 2%. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.
Specifications
- Range
- SpaceLogic
- Product or Component Type
- Sensor
- Product name
- SpaceLogic Room Unit
- Type of Measurement
- Humidity, Temperature
- Device Application
- HVAC, Temperature control, Fan speed controller
- Product Specific Application
- Humidity control
- product certifications
- CE EN 61000-6-2, CE EN 61000-6-3, CE EN 61326-1, RCM, EAC, ICES-003, CULus
- Display Type
- Without Display
- Location
- Living Space
- Mounting Support
- Wall Mount
- Depth
- 0.94 in (24 mm)
- Height
- 3.35 in (85 mm)
- Width
- 4.53 in (115 mm)
- Network Frequency
- 50 Hz, 60 Hz
- Ambient Air Temperature for Operation
- 32…122 °F (0…50 °C)
- Standards
- UL 916, FCC Part 15 class B
- Color
- White
- Sensor Type
- 1000 Ohm Pt RTD thermistor, Thin-film capacitive
- [Us] Rated Supply Voltage
- 24 V AC, 20...30 V DC
- Device presentation
- Complete product
- Surface Finish
- Matte
- Communication Network Type
- Wired
- Material
- ABS (acrylonitrile butadiene-styrene)
- Function Available
- With temperature sensor, With humidity sensor
- Hysteresis
- 1.5 %
- connections - terminals
- Screw terminal - 2 AWG 24...AWG 18)
- Number of Outputs
- 1 fan, 1 configurable
- output type
- Analog
- output voltage
- 0...10 V fan speed, 0...5 V configurable analog output, 0...10 V configurable analog output
- range compatibility
- EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
- Humidity setting range
- 0…100 %
- Temperature setting range
- 50…95 °F (10…35 °C), 32…122 °F (0…50 °C)
- GTIN
- 3606481902252
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Weight
- 6.41 oz (181.82 g)
