HW2XA2A | Veris HW2 Series Humidity Sensor, Wall, Replaceable 2%, Temperature Transmitter | Veris Industries
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HW2XA2A
Documents and manuals
Veris Industries HW2XA2A Documents
Overview
Details for HW2XA2A
Humidity Sensor Wall Mount (HW2XA2A) by Veris Industries: Precise Humidity Monitoring
The Veris Industries HW2XA2A Humidity Sensor Wall Mount is a high-precision humidity sensor designed for industrial and commercial applications. With its wall-mounted design, it provides accurate and continuous monitoring of relative humidity levels, making it ideal for environments such as warehouses, laboratories, and cleanrooms.
Key Features:
* Accurate humidity measurement: Provides precise relative humidity readings with high resolution, ensuring reliable data for environmental control.
* Rugged construction: Built to withstand harsh industrial environments, the sensor features a durable construction that protects against dust, moisture, and extreme temperatures.
* Wall-mounted design: Conveniently mount the sensor on any wall surface for easy installation and accessibility in various locations.
* Versatile applications: Ideal for a wide range of industries, including manufacturing, healthcare, pharmaceuticals, and food processing, where precise humidity control is critical.
Benefits:
* Optimize environmental conditions: Accurate humidity monitoring allows for precise control of indoor environments, ensuring optimal conditions for product storage, manufacturing processes, and employee comfort.
* Prevent damage and loss: By monitoring humidity levels, businesses can prevent damage to sensitive equipment, materials, and inventory caused by excessive moisture or dryness.
* Increase efficiency and productivity: Optimal humidity levels can enhance efficiency in production processes and improve productivity by ensuring stable operating conditions.
* Comply with industry standards: The HW2XA2A sensor meets or exceeds industry standards for humidity measurement, ensuring compliance with quality and safety regulations.

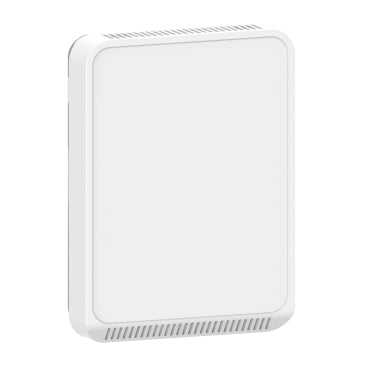

Shop our HVAC supply store today for the best prices and fast shipping on the Veris Industries HW2XA2A Humidity Sensor Wall Mount! The Veris HW2 Series of humidity sensors for rooms is a flexible multi-sensor platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is medium matte white. No user interface, the device is protected by a blank cover. This air quality sensor include a temperature and humidity elements. The relative humidity sensor is replaceable with a NIST certified version, 1 or 2%. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.
Specifications
- Range
- SpaceLogic
- Product or Component Type
- Sensor
- Product name
- SpaceLogic Room Unit
- Type of Measurement
- Humidity, Temperature
- Device Application
- HVAC, Temperature control, Fan speed controller
- Product Specific Application
- Humidity control
- product certifications
- CE EN 61000-6-2, CE EN 61000-6-3, CE EN 61326-1, RCM, EAC, ICES-003, CULus
- Display Type
- Without Display
- Location
- Living Space
- Mounting Support
- Wall Mount
- Depth
- 0.94 in (24 mm)
- Height
- 3.35 in (85 mm)
- Width
- 4.53 in (115 mm)
- Network Frequency
- 50 Hz, 60 Hz
- Ambient Air Temperature for Operation
- 32…122 °F (0…50 °C)
- Standards
- UL 916, FCC Part 15 class B
- Color
- White
- Sensor Type
- Transmitter, Thin-film capacitive
- [Us] Rated Supply Voltage
- 24 V AC, 20...30 V DC
- Device presentation
- Complete product
- Surface Finish
- Matte
- Communication Network Type
- Wired
- Material
- ABS (acrylonitrile butadiene-styrene)
- Function Available
- With temperature sensor, With humidity sensor
- Hysteresis
- 1.5 %
- connections - terminals
- Screw terminal - 2 AWG 24...AWG 18)
- Number of Outputs
- 1 fan, 1 configurable
- output type
- Analog
- output voltage
- 0...10 V fan speed, 0...5 V configurable analog output, 0...10 V configurable analog output
- range compatibility
- EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
- Humidity setting range
- 0…100 %
- Temperature setting range
- 50…95 °F (10…35 °C), 32…122 °F (0…50 °C)
- GTIN
- 3606481902245
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Weight
- 6.41 oz (181.82 g)
