HW2TA2A | Veris HW2 Series Humidity Sensor, Wall, Replaceable 2%, Color Touchscreen, Temperature Transmitter | Veris Industries

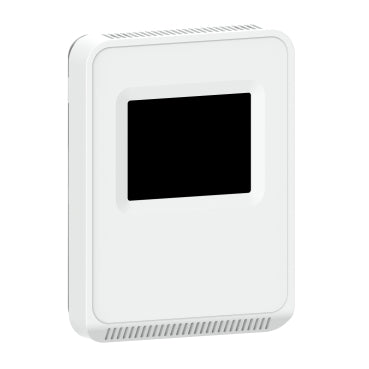

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HW2TA2A
Documents and manuals
Veris Industries HW2TA2A Documents
Overview
Details for HW2TA2A
The Humidity Sensor WallMt is a reliable and accurate sensor for measuring humidity levels in various industrial settings. Manufactured by Veris Industries, this sensor is designed for wall mounting, making it easy to install and monitor. With a humidity accuracy of 2%, this sensor ensures precise readings are taken even in fluctuating environmental conditions. Whether you need to monitor humidity levels for quality control, process optimization, or other industrial applications, the Humidity Sensor WallMt is an excellent choice.
Shop now at our HVAC supply store for the best prices and fast shipping! The Veris HW2 Series of humidity sensors for rooms is a flexible multi-sensor platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is medium matte white. The user interface is assured by a color touchscreen with control and setpoint menu. This air quality sensor include a temperature and humidity elements. The relative humidity sensor is replaceable with a NIST certified version, 1 or 2%. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.
Specifications
- Range
- SpaceLogic
- Product or Component Type
- Sensor
- Product name
- SpaceLogic Room Unit
- Type of Measurement
- Humidity, Temperature
- Device Application
- HVAC, Temperature control, Fan speed controller
- Product Specific Application
- Humidity control
- product certifications
- CE EN 61000-6-2, CE EN 61000-6-3, CE EN 61326-1, RCM, EAC, ICES-003, CULus
- Display Resolution
- 240 x 300 pixels
- Display size
- 2.4 inch
- Display Type
- Colour touchscreen
- Information Displayed
- Temperature, Temperature set point, Menu-driven user interface, CO2
- Location
- Living Space
- Mounting Support
- Wall Mount
- Depth
- 0.94 in (24 mm)
- Height
- 3.35 in (85 mm)
- Width
- 4.53 in (115 mm)
- Network Frequency
- 50 Hz, 60 Hz
- Ambient Air Temperature for Operation
- 32…122 °F (0…50 °C)
- Standards
- UL 916, FCC Part 15 class B
- Color
- White
- Sensor Type
- Transmitter, Thin-film capacitive
- [Us] Rated Supply Voltage
- 24 V AC, 20...30 V DC
- Device presentation
- Complete product
- Surface Finish
- Matte
- Communication Network Type
- Wired
- control type
- tactile, switch
- Material
- ABS (acrylonitrile butadiene-styrene)
- Function Available
- With temperature sensor, With humidity sensor
- Hysteresis
- 1.5 %
- connections - terminals
- Screw terminal - 2 AWG 24...AWG 18)
- Number of Outputs
- 1 fan, 1 configurable
- output type
- Analog
- output voltage
- 0...10 V fan speed, 0...5 V configurable analog output, 0...10 V configurable analog output
- range compatibility
- EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
- Humidity setting range
- 0…100 %
- Temperature setting range
- 50…95 °F (10…35 °C), 32…122 °F (0…50 °C)
- GTIN
- 3606481902160
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
