HW2LA2D | Veris HW2 Series Sensor, Wall, Humidity, Replaceable 2%, Segmented LCD, Temperature, 10K Type 2 Thermistor | Veris Industries

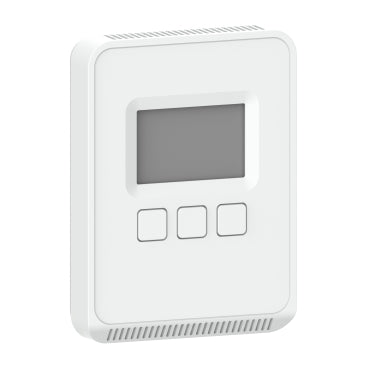

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HW2LA2D
Documents and manuals
Veris Industries HW2LA2D Documents
Overview
Details for HW2LA2D
The Veris Industries HW2LA2D is a highly accurate 2% humidity/temperature sensor designed for demanding industrial applications. Featuring a 10K Type 2 sensor, it provides precise measurements of relative humidity and temperature, allowing for critical environmental monitoring in various industries. Its robust construction and compact form factor ensure reliable performance in harsh environments.
Key Features:
* 2% accuracy for humidity and temperature measurements
* 10K Type 2 sensor for precise measurements
* Wide measurement range: 0-100% RH, -40°C to +85°C
* Robust construction for industrial applications
Applications:
* Environmental monitoring in data centers, cleanrooms, and manufacturing facilities
* HVAC system control and optimization
* Agricultural and horticultural environments
* Scientific research and testing
Order now from our HVAC supply store and experience the precision and reliability of the Veris Industries HW2LA2D. our HVAC supply store offers competitive pricing, fast shipping, and exceptional customer service, making us your preferred source for industrial supplies. The Veris HW2 Series of humidity sensors for rooms is a flexible multi-sensor platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is medium matte white. The user interface is assured by a LCD with 3 control buttons. This air quality sensor include a 10K Type 2 Thermistor and humidity elements. The relative humidity sensor is replaceable with a NIST certified version, 1 or 2%. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.
Specifications
- Range
- SpaceLogic
- Product or Component Type
- Sensor
- Product name
- SpaceLogic Room Unit
- Type of Measurement
- Humidity, Temperature
- Device Application
- HVAC, Temperature control, Fan speed controller
- Product Specific Application
- Humidity control
- product certifications
- CE EN 61000-6-2, CE EN 61000-6-3, CE EN 61326-1, RCM, EAC, ICES-003, CULus
- Display size
- 2 inch
- Display Type
- LCD display
- Information Displayed
- Temperature, Temperature set point, Menu-driven user interface, Relative humidity
- Location
- Living Space
- Mounting Support
- Wall Mount
- Depth
- 0.94 in (24 mm)
- Height
- 3.35 in (85 mm)
- Width
- 4.53 in (115 mm)
- Network Frequency
- 50 Hz, 60 Hz
- Ambient Air Temperature for Operation
- 32…122 °F (0…50 °C)
- Standards
- UL 916, FCC Part 15 class B
- Color
- White
- Sensor Type
- 10 kOhm T2 thermistor, Thin-film capacitive
- [Us] Rated Supply Voltage
- 24 V AC, 20...30 V DC
- Device presentation
- Complete product
- Surface Finish
- Matte
- Communication Network Type
- Wired
- control type
- button, button, button
- Material
- ABS (acrylonitrile butadiene-styrene)
- Function Available
- With temperature sensor, With humidity sensor
- Hysteresis
- 1.5 %
- connections - terminals
- Screw terminal - 2 AWG 24...AWG 18)
- Number of Outputs
- 1 fan, 1 configurable
- output type
- Analog
- output voltage
- 0...10 V fan speed, 0...5 V configurable analog output, 0...10 V configurable analog output
- range compatibility
- EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
- Humidity setting range
- 0…100 %
- Temperature setting range
- 50…95 °F (10…35 °C), 32…122 °F (0…50 °C)
- GTIN
- 3606481902108
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Weight
- 6.41 oz (181.82 g)
