HW2LA2C | 2%HUMID/TEMP 1K PLAT WALL SENS | Veris Industries
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HW2LA2C
Documents and manuals
Veris Industries HW2LA2C Documents
Overview
Details for HW2LA2C

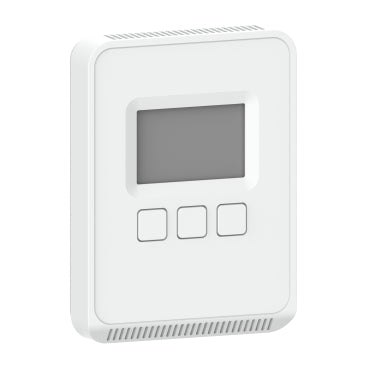

Veris Industries HW2LA2C Temperature and Humidity Wall Sensor
The Veris Industries HW2LA2C is a highly precise and accurate temperature and humidity wall sensor designed for demanding industrial applications. Crafted using premium materials, it ensures durability and reliability in various environmental conditions.
Features and Benefits:
- Dependable temperature and humidity readings with ±2% accuracy level
- Robust construction for extended service life in harsh environments
- Wall-mounted design for convenient installation and monitoring
- Transmitter output of 4-20 mA for seamless integration into control systems
- Measures temperature range from -40°F to 158°F (-40°C to 70°C)
- Humidity measurement range from 0 to 100% RH
Shop now at our HVAC supply store for the most competitive prices and swift shipping! The Veris HW2 Series of humidity sensors for rooms is a flexible multi-sensor platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is medium matte white. The user interface is assured by a LCD with 3 control buttons. This air quality sensor include a 1K Ohm Platinum RTD and humidity elements. The relative humidity sensor is replaceable with a NIST certified version, 1 or 2%. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.
Specifications
- Range
- SpaceLogic
- Product or Component Type
- Sensor
- Product name
- SpaceLogic Room Unit
- Type of Measurement
- Humidity, Temperature
- Device Application
- HVAC, Temperature control, Fan speed controller
- Product Specific Application
- Humidity control
- product certifications
- CE EN 61000-6-2, CE EN 61000-6-3, CE EN 61326-1, RCM, EAC, ICES-003, CULus
- Display size
- 2 inch
- Display Type
- LCD display
- Information Displayed
- Temperature, Temperature set point, Menu-driven user interface, Relative humidity
- Location
- Living Space
- Mounting Support
- Wall Mount
- Depth
- 0.94 in (24 mm)
- Height
- 3.35 in (85 mm)
- Width
- 4.53 in (115 mm)
- Network Frequency
- 50 Hz, 60 Hz
- Ambient Air Temperature for Operation
- 32…122 °F (0…50 °C)
- Standards
- UL 916, FCC Part 15 class B
- Color
- White
- Sensor Type
- 1000 Ohm Pt RTD thermistor, Thin-film capacitive
- [Us] Rated Supply Voltage
- 24 V AC, 20...30 V DC
- Device presentation
- Complete product
- Surface Finish
- Matte
- Communication Network Type
- Wired
- control type
- button, button, button
- Material
- ABS (acrylonitrile butadiene-styrene)
- Function Available
- With temperature sensor, With humidity sensor
- Hysteresis
- 1.5 %
- connections - terminals
- Screw terminal - 2 AWG 24...AWG 18)
- Number of Outputs
- 1 fan, 1 configurable
- output type
- Analog
- output voltage
- 0...10 V fan speed, 0...5 V configurable analog output, 0...10 V configurable analog output
- range compatibility
- EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
- Humidity setting range
- 0…100 %
- Temperature setting range
- 50…95 °F (10…35 °C), 32…122 °F (0…50 °C)
- GTIN
- 3606481902092
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Weight
- 6.41 oz (181.82 g)
