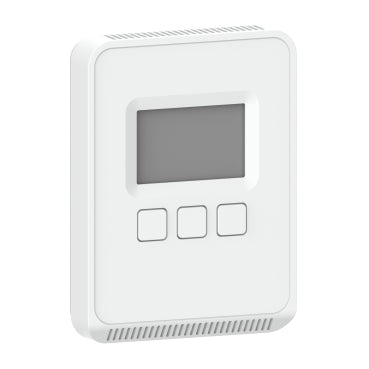

HW2LA2A | Veris HW2 Series Sensor, Wall, Humidity, Replaceable 2%, Segmented LCD, Temperature Transmitter | Veris Industries
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HW2LA2A
Documents and manuals
Veris Industries HW2LA2A Documents
Overview
Details for HW2LA2A
Veris Industries HW2 Series Wall Humid Sensor: Providing Accurate Humidity Monitoring for Industrial Applications
The HW2 Series sensor from Veris Industries is a wall-mounted humidity sensor designed for precise and reliable humidity monitoring in industrial environments. This sensor is ideal for applications where maintaining optimal humidity levels is critical for product quality, safety, and equipment performance.
Key Features:
• Accurate and reliable humidity measurement
• Wall-mounted design for easy installation
• Compact size for discreet placement
• Long-lasting performance
Benefits:
• Ensures optimal humidity levels for critical processes
• Monitors humidity in various industrial settings
• Easy to install and maintain
• Provides valuable data for process optimization
Technical Specifications:
• Sensor Type: Humidity
• Mount: Wall-mounted
• Output: Analog or digital
• Range: 0-100% RH
• Accuracy: ±2% RH
• Response Time: <5 seconds
Applications:
• Industrial manufacturing
• Pharmaceutical production
• Food processing
• Data centers
• Warehouses
Maintain precise humidity control with the Veris Industries HW2 Series Wall Humid Sensor. Its accurate measurements and reliable performance help ensure optimal conditions for industrial processes. Contact our HVAC supply store today for the best prices and fast shipping on your humidity monitoring needs! The Veris HW2 Series of humidity sensors for rooms is a flexible multi-sensor platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is medium matte white. The user interface is assured by a LCD with 3 control buttons. This air quality sensor include a temperature and humidity elements. The relative humidity sensor is replaceable with a NIST certified version, 1 or 2%. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.
Specifications
- Range
- SpaceLogic
- Product or Component Type
- Sensor
- Product name
- SpaceLogic Room Unit
- Type of Measurement
- Humidity, Temperature
- Device Application
- HVAC, Temperature control, Fan speed controller
- Product Specific Application
- Humidity control
- product certifications
- CE EN 61000-6-2, CE EN 61000-6-3, CE EN 61326-1, RCM, EAC, ICES-003, CULus
- Display size
- 2 inch
- Display Type
- LCD display
- Information Displayed
- Temperature, Temperature set point, Menu-driven user interface, Relative humidity
- Location
- Living Space
- Mounting Support
- Wall Mount
- Depth
- 0.94 in (24 mm)
- Height
- 3.35 in (85 mm)
- Width
- 4.53 in (115 mm)
- Network Frequency
- 50 Hz, 60 Hz
- Ambient Air Temperature for Operation
- 32…122 °F (0…50 °C)
- Standards
- UL 916, FCC Part 15 class B
- Color
- White
- Sensor Type
- Transmitter, Thin-film capacitive
- [Us] Rated Supply Voltage
- 24 V AC, 20...30 V DC
- Device presentation
- Complete product
- Surface Finish
- Matte
- Communication Network Type
- Wired
- control type
- button, button, button
- Material
- ABS (acrylonitrile butadiene-styrene)
- Function Available
- With temperature sensor, With humidity sensor
- Hysteresis
- 1.5 %
- connections - terminals
- Screw terminal - 2 AWG 24...AWG 18)
- Number of Outputs
- 1 fan, 1 configurable
- output type
- Analog
- output voltage
- 0...10 V fan speed, 0...5 V configurable analog output, 0...10 V configurable analog output
- range compatibility
- EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
- Humidity setting range
- 0…100 %
- Temperature setting range
- 50…95 °F (10…35 °C), 32…122 °F (0…50 °C)
- GTIN
- 3606481902085
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
