HU-226-3-VDC-12 | Temp & RH 3% | Temp: 10K Type II | RH: 0-10VDC | Duct Temp & Humidity Sensor | MAMAC Systems

NCO HU-226-3-VDC-12 Temp/Hum Sens VDC The NCO HU-226-3-VDC-12 from MAMAC Systems is a 10K Ohm temperature and humidity sensor with a VDC output. This sensor is designed for industrial applications where accurate and reliable temperature and humidity data is critical. Key Features: * 10K Ohm resistance * 3% accuracy * VDC output * Compact and robust design * Wide temperature and humidity range Benefits: * High accuracy for precise temperature and humidity measurements * VDC output for easy integration with data acquisition systems * Compact and robust design for harsh industrial environments * Suitable for a wide range of temperature and humidity applications Applications: * HVAC systems * Environmental monitoring * Industrial process control * Data centers * Warehouses Specifications: * Resistance: 10K Ohm * Accuracy: 3% * Output: VDC * Temperature Range: -40°F to 158°F * Humidity Range: 0% to 100% RH Shop our HVAC supply store for the Best Prices and Fast Shipping on Industrial Sensors!

Description

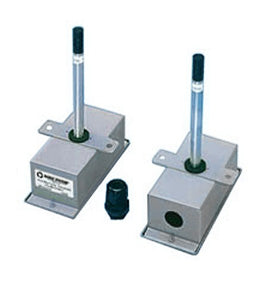

The HU-226 is an extremely fast, stable and accurate humidity/temp sensor designed for harsh environments. The polymer humidity capacitance sensor is protected with an ePTFE (expanded Teflon) filter media. The Teflon protected cross-linked capacitive humidity sensor is not affected by prolonged exposure to condensing humidity, harsh environments, contaminants, fog or other extreme environmental conditions. Each unit is individually calibrated in an environmental test chamber to meet or exceed NIST traceable ±2% or ±3% accuracies. The HU-226 is temperature compensated for -30°F (-35°C) to +130°F (55°C) operation with negligible error. Field selectable outputs, and fully temperature compensated NIST traceable accuracy, non-interacting zero and span adjustments, NEMA-4 (IP-65) steel enclosure with external mounting bracket, short circuit and reverse polarity protected output, and a liberal five year warranty are some of the features which make the HU-226 the industry's highest performance, most reliable humidity/temp sensor.
