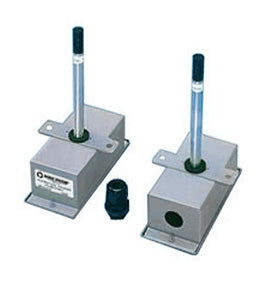

HU-226-2-MA-10 | Temp & RH 2% | Temp: 3K | RH: 4-20mA | Duct Temp & Humidity Sensor | MAMAC Systems

NCO-HU-226-2-MA-10 The NCO-HU-226-2-MA-10 from MAMAC Systems is a reliable and precise 2%Rh Hum/Temp 3K Ohm NTC Sen. Built with high-quality materials and advanced technology, this sensor is designed to provide accurate and stable humidity and temperature measurements in various industrial and environmental applications. Key Features: * Humidity and temperature sensing * 2%Rh accuracy * 3K Ohm NTC resistance * Compact and durable design Benefits: * Enhanced accuracy and reliability in humidity and temperature monitoring * Suitable for various industrial and environmental applications * Durable construction ensures longevity and performance in demanding conditions Applications: * HVAC systems * Climate control systems * Environmental monitoring * Industrial process control Specifications: * SKU: HU-226-2-MA-10 * Brand: MAMAC Systems * Type: Humidity and temperature sensor * Accuracy: 2%Rh * Resistance: 3K Ohm NTC * Dimensions: [Insert dimensions] * Weight: [Insert weight] Our HVAC supply store offers the best prices and fast shipping for your NCO-HU-226-2-MA-10 sensor. Order now to enhance the accuracy and reliability of your humidity and temperature monitoring systems.

• Ultra fast response cross-linked bulk poly- mer capacitive sensing element
• Proprietary hydrophobic and oleophobic ePTFE filter to protect the sensing element from condensation, fog, salt air, pollutants and other contaminants
• Rugged steel enclosure and thick-walled aluminum probe rated NEMA-4 (IP-65) to withstand weather extremes
• NIST traceable ±2% RH or ±3% RH calibra- tion accuracy
• Two temperature compensated humidity out- put versions, 4-20 mA 2-wire or field selectable 0-5 VDC/0-10 VDC
• Conforms to EMC and RoHS standards

The HU-226 is an extremely fast, stable and accurate humidity/temp sensor designed for harsh environments. The polymer humidity capacitance sensor is protected with an ePTFE (expanded Teflon) filter media. The Teflon protected cross-linked capacitive humidity sensor is not affected by prolonged exposure to condensing humidity, harsh environments, contaminants, fog or other extreme environmental conditions. Each unit is individually calibrated in an environmental test chamber to meet or exceed NIST traceable ±2% or ±3% accuracies. The HU-226 is temperature compensated for -30°F (-35°C) to +130°F (55°C) operation with negligible error. Field selectable outputs, and fully temperature compensated NIST traceable accuracy, non-interacting zero and span adjustments, NEMA-4 (IP-65) steel enclosure with external mounting bracket, short circuit and reverse polarity protected output, and a liberal five year warranty are some of the features which make the HU-226 the industry's highest performance, most reliable humidity/temp sensor.
