HP-1 | Hand pump. | Dwyer Instruments

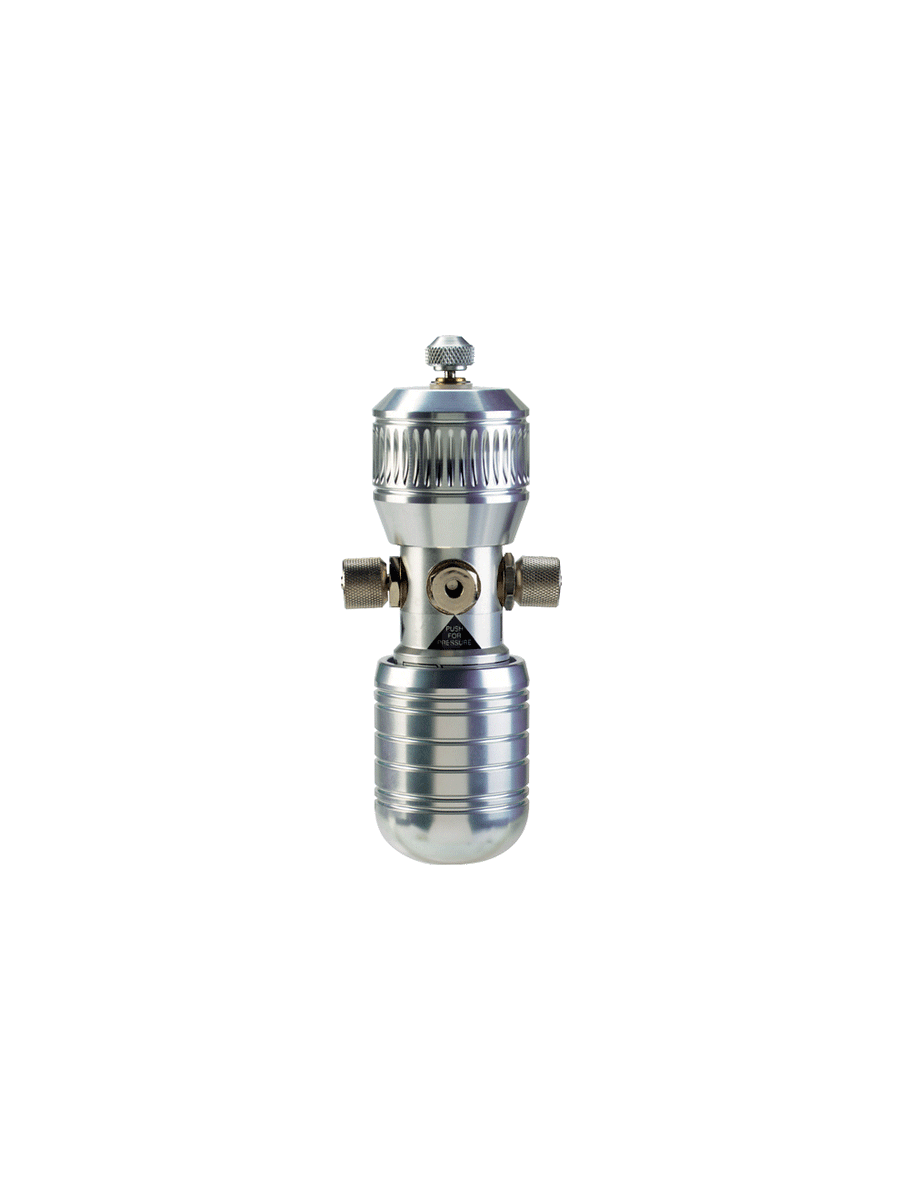

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HP-1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments HP-1 Documents

Instruction Manual Model HP Catalog Page More Info

Overview

Details for HP-1

Dwyer Instruments HP-1 Hand Pump The Dwyer Instruments HP-1 Hand Pump is a compact and portable instrument designed for accurate and efficient pressure measurements. Featuring a durable construction with a rugged aluminum body, this hand pump provides reliable performance in industrial and maintenance settings. The HP-1 offers a pressure range of 0 to 15 psig, making it suitable for a wide range of applications. Its precision-machined piston and leak-free design ensure accurate pressure readings. The pump also incorporates a built-in pressure gauge for easy and convenient pressure monitoring. The HP-1 is ideal for testing pressure switches, calibrating instruments, filling and bleeding hydraulic systems, and troubleshooting pneumatic circuits. Its compact size and lightweight design make it easy to carry and maneuver in confined spaces. Features: - Compact and portable design - Durable aluminum body - Pressure range: 0 to 15 psig - Precision-machined piston - Built-in pressure gauge Applications: - Pressure switch testing - Instrument calibration - Hydraulic system maintenance - Pneumatic circuit troubleshooting We offer the best prices and fast shipping for Dwyer Instruments products at our HVAC supply store. Contact us today to place your order or learn more about the HP-1 Hand Pump.

MODEL HP HAND PUMP

Generates Pressures up to 45 psig (3 bar), Single Hand Operation

The Model HP Hand Pump provides a dual source of pneumatic pressure and vacuum for verifying the calibration of pressure instrumentation. Pump can generate pressures up to 45 psig (3 bar) and vacuum to -27 in Hg (-910 mbar). The compact pump is designed for portability and single hand operation. Model HP features a pressure relief valve and fine adjustment for control better than 0.0015 psi (0.1 mbar). Pump includes two 39" (1 m) hoses terminating in 1/4" female NPT connections and instruction manual.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Test instrument calibration
Pressure switch calibration
Pressure transmitter calibration

Offers vacuum or positive pressure sourcing
Compact and portable
Integral relief valve for fine adjustment
Reference gage recommendation: DPG-022
