HM3531DLB300 | Differential pressure manometer | range 0-10" w.c. | 0.2% accuracy. | Dwyer Instruments

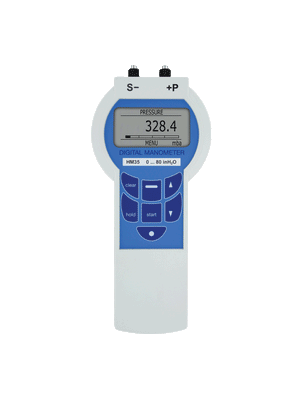

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HM3531DLB300

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments HM3531DLB300 Documents

Instruction Manual Series HM35 Catalog Page More Info

Overview

Details for HM3531DLB300

Dwyer Instruments HM3531DLB300 Differential Pressure Manometer The Dwyer Instruments HM3531DLB300 Differential Pressure Manometer is a precise and reliable instrument for measuring differential pressure in various industrial applications. With a measurement range of 0-10" w.c., it provides accurate readings for precise pressure control and monitoring. The manometer features a durable construction with a stainless steel diaphragm and a durable plastic case, ensuring reliability in challenging environments. It utilizes a liquid-filled design to provide smooth and steady readings, even with fluctuating pressure conditions. The HM3531DLB300 is equipped with a large, easy-to-read dial with clear graduations, allowing for quick and precise readings. The 3-way valve enables convenient zero referencing and isolation for improved accuracy. This differential pressure manometer is commonly used in HVAC systems, clean rooms, and other applications requiring accurate pressure measurements. It is a versatile tool for engineers, maintenance professionals, and technicians involved in monitoring and controlling pressure systems. Shop our HVAC supply store today for the best prices and fast shipping on all your industrial supply needs!

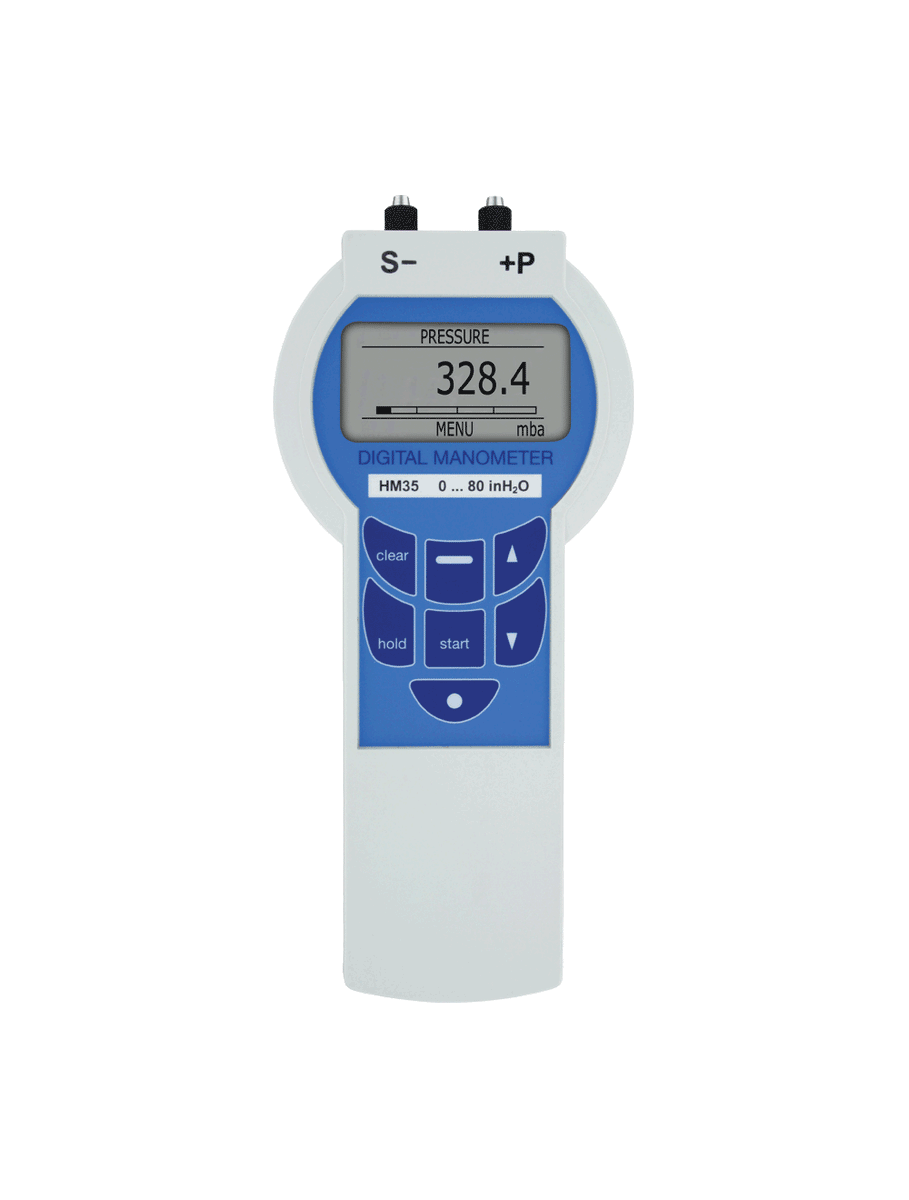

SERIES HM35 PRECISION DIGITAL PRESSURE MANOMETER

Up to 0.05% Accuracy, Graphical Display, Data Logging Capability

The Series HM35 Precision Digital Pressure Manometer is designed to reliablymeasure and log absolute pressure, differential pressure, or gage pressure withup to 0.05% accuracy. The data logging function can store up to 10,742 readingsand transmit the readings to a PC through an IR serial port. The large display cangraphically display trends in the data as well as peaks and valleys. Calibration certification included.

Product Applications

Calibration facilities
Laboratories

Able to record up to 10,742 readings, which can be downloaded to a PC
Up to 0.05% accuracy for use in critical applications
Measure absolute, differential, or gage pressure

Specifications

Series: HM35 PRECISION DIGITAL PRESSURE MANOMETER
freeship
Category/Type: Pressure
Type: Manometers
Series: HM35 PRECISION DIGITAL PRESSURE MANOMETER
Service: Air and compatible gases.
Wetted Materials: 18/8 stainless steel.
Accuracy: (Includes linearity; hysteresis; and repeatability): Depending on model. ±0.20% full-scale ±1 digit; ±0.10% full-scale ±1 digit; ±0.05% full-scale ±1 digit.
Temperature Limits: 32 to 122°F (0 to 50°C).
Storage Temperature: -4 to 140°F (-20 to 60°C).
Humidity: Maximum 95% RH non-condensing.
Display: Graphical back lit LCD. 128 x 64 points.
Power Requirements: (3) 1.5 V AA alkaline batteries; installed functional; userreplaceable. Can operate on 6 to 9 VDC external power.
Current Consumption: 25 mA without back lit display; IR; or buzzer.
Memory: 10;742 readings. Recording intervals adjustable from 1 second to 24 hours or manual.
Case Protection: IP54 (NEMA 3).
Weight: 10.5 oz (300 g).
Process Connections: Hose 4/6 mm or 1/8" NPT.
Agency Approvals: CE.
