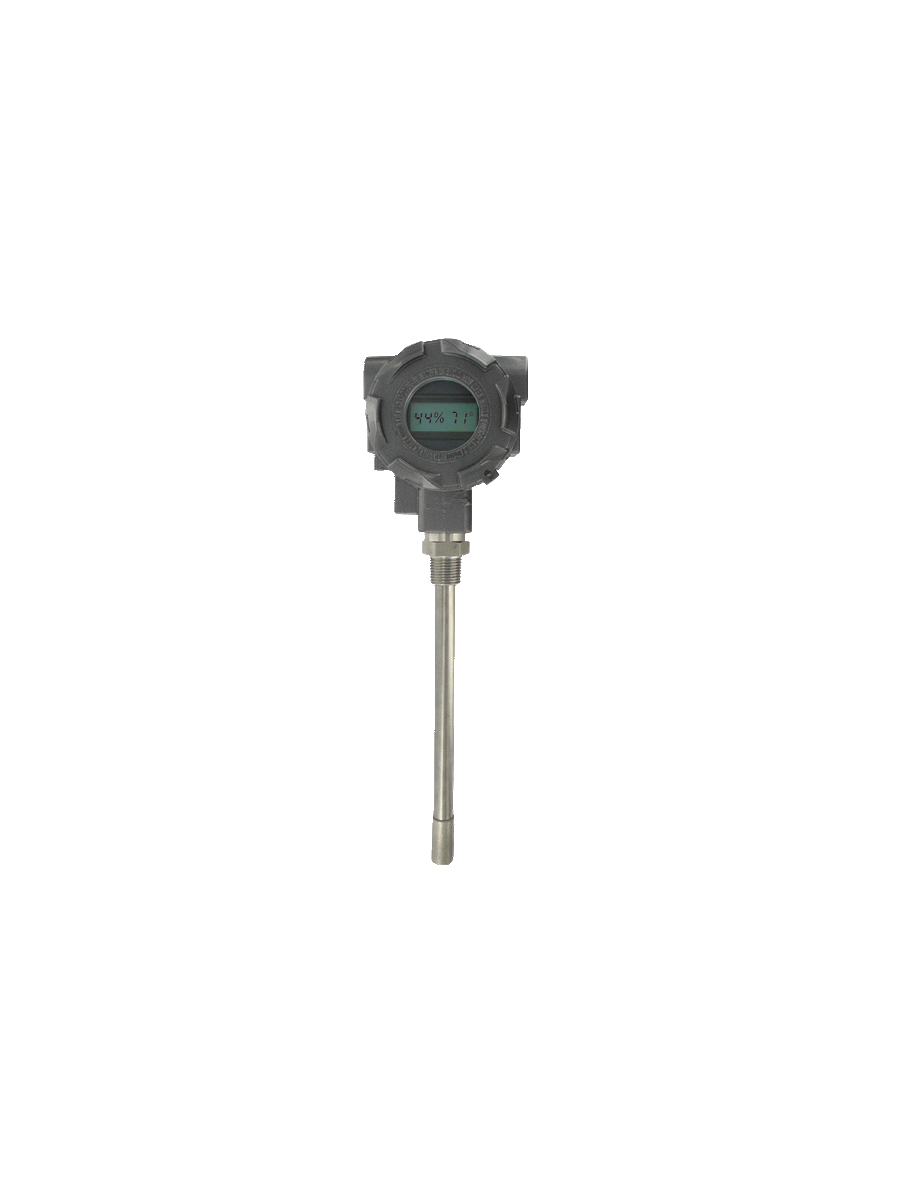

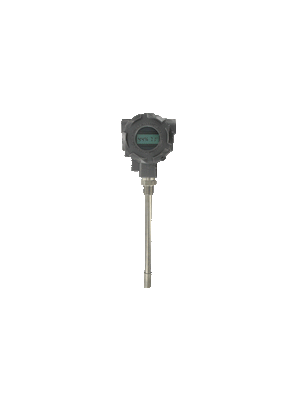

HHT-IT-LCD | Intrinsically safe humidity/temperature transmitter with LCD display. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HHT-IT-LCD

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments HHT-IT-LCD Documents

Instruction Manual Series HHT Catalog Page More Info

Overview

Details for HHT-IT-LCD

Dwyer Instruments HHT-IT-LCD Intrinsic Safe Humidity Transmitter Dwyer Instruments' HHT-IT-LCD is an intrinsically safe humidity transmitter designed for accurate and reliable humidity measurement in hazardous environments. It features a large, easy-to-read LCD display and a rugged construction that meets the requirements for Class I, Division 1, Groups A, B, C, and D locations. The transmitter utilizes a proven capacitance sensor technology to provide highly stable and linear humidity measurements with a measurement range of 5 to 95% relative humidity. It offers a 4-20 mA output signal, allowing for easy integration into existing control systems. Key Features: * Intrinsically safe for use in hazardous environments * Large, backlit LCD display for clear readings * Proven capacitance sensor technology for accurate measurements * 5 to 95% RH measurement range * 4-20 mA output signal * Rugged construction for durability Applications: * Industrial process control * Environmental monitoring * HVAC systems * Heat treating applications * Pharmaceutical manufacturing * Chemical processing Our HVAC supply store offers the best prices and fast shipping on the Dwyer Instruments HHT-IT-LCD Humidity Transmitter. Shop now for all your industrial supply needs!

Series HHT Hazardous Area Humidity/Temperature Transmitter

Intrinsically Safe or Explosion-Proof Models

The Series HHT Hazardous Area Humidity/Temperature Transmitter takes accurate measurements in the harshest of environments. The explosion-proof model is offered with 4 to 20 mA output for humidity only. The intrinsically safe version is offered with 4 to 20 mA output for humidity and temperature, and do require an intrinsically safe barrier to meet hazardous area approvals.

Product Applications

Process monitoring
Offshore HVAC monitoring
Dust and grain handling

FM approved explosion-proof and intrinsically safe models
Integral LCD option
Dual temperature and relative humidity output models

Specifications

Series: HHT Hazardous Area Humidity/Temperature Transmitter
freeship
Category/Type: Air Quality
Type: Humidity / Temperature Transmitters
Series: HHT Hazardous Area Humidity/Temperature Transmitter
Relative Humidity Range: 0 to 100% RH.
Temperature Range: -40 to 140°F (-40 to 60°C).
Accuracy: ±2% 10 to 90% RH; ±0.9°F at 72°F (±0.3°C at 25°C).
Hysteresis: ±1%.
Repeatability: ±0.1% typical.
Temperature Limits: -40 to 140°F (-40 to 60°C).
Storage Temperature: -40 to 176°F (-40 to 80°C).
Compensated Temperature: -40 to 140°F (-40 to 60°C).
Power Requirements: For instrinsically safe models HHT-IX; 9.5 to 28 VDC. For explosion-proof models HHT-EX; 16.5 to 28 VDC.
Output Signal: 4 to 20 mA; 2 channels for humidity/temperature models (loop power on RH).
Response Time: 15 s.
Electrical Connections: Screw terminal block.
Conduit Connection: 1/2" female NPT.
Drift: <1% RH/year.
RH Sensor: Capacitance polymer.
Temperature Sensor: Solid state band gap.
Housing Material: Aluminum.
Display: Optional 2 line alpha numeric; 8 characters/line. Temperature display is °F/°C selectable.
Display Resolution: RH: 0.1%; Temperature: 0.1°F (0.1°C).
Weight: 2 lb 8 oz (1134 g).
Enclosure Rating: NEMA 4X (IP66). Models HHT-EX: FM Explosion-proof; Class I Div. 1 Group B; C; D; Class II Div. 1 Group E; F; G; Class III Div. 1; Models HHT-IX: FM Instrinsically Safe; Class I Div. 1 Group A; B; C; D; Class II Div. 1 Group E; F; G; Class III Div. 1 T4.
Agency Approvals: FM; CE.
