HHT-EU | Explosion-proof humidity transmitter. | Dwyer Instruments

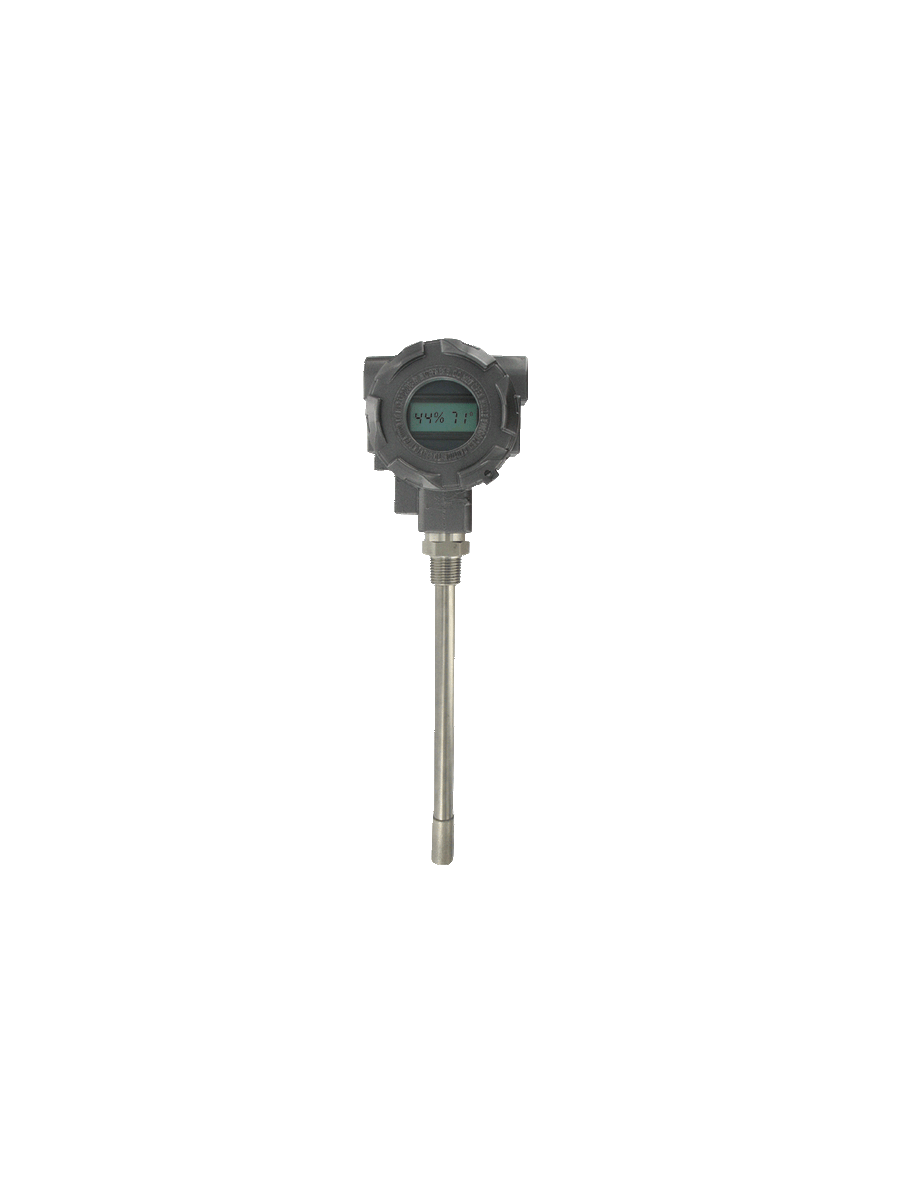

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HHT-EU

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments HHT-EU Documents

Instruction Manual Series HHT Catalog Page More Info

Overview

Details for HHT-EU

Dwyer Instruments HHT-EU Humidity Transmitter Dwyer Instruments' HHT-EU Humidity Transmitter is a highly accurate and reliable device designed to measure and transmit relative humidity levels. It is ideal for use in various industrial applications where precise humidity monitoring is crucial. Featuring a temperature sensor, the HHT-EU provides accurate and stable humidity readings over a wide range of temperatures, making it suitable for environments with fluctuating conditions. Its robust construction and IP67-rated enclosure ensure durability and resistance to harsh environments. The HHT-EU offers several key benefits: - Accurate and reliable humidity measurement - Wide measurement range of 0 to 100% RH - Temperature compensation for accurate readings across varying temperatures - IP67-rated enclosure for protection against dust and moisture - 4-20 mA output signal for easy integration with control systems Applications: - HVAC systems - Industrial processes - Environmental monitoring - Data centers - Storage facilities Our HVAC supply store offers the best prices and fast shipping on the HHT-EU Humidity Transmitter. Order today and experience the quality and precision of Dwyer Instruments' products.

Series HHT Hazardous Area Humidity/Temperature Transmitter

Intrinsically Safe or Explosion-Proof Models

The Series HHT Hazardous Area Humidity/Temperature Transmitter takes accurate measurements in the harshest of environments. The explosion-proof model is offered with 4 to 20 mA output for humidity only. The intrinsically safe version is offered with 4 to 20 mA output for humidity and temperature, and do require an intrinsically safe barrier to meet hazardous area approvals.

Product Applications

Process monitoring
Offshore HVAC monitoring
Dust and grain handling

FM approved explosion-proof and intrinsically safe models
Integral LCD option
Dual temperature and relative humidity output models

Specifications

Series: HHT Hazardous Area Humidity/Temperature Transmitter
freeship
Category/Type: Air Quality
Type: Humidity / Temperature Transmitters
Series: HHT Hazardous Area Humidity/Temperature Transmitter
Relative Humidity Range: 0 to 100% RH.
Temperature Range: -40 to 140°F (-40 to 60°C).
Accuracy: ±2% 10 to 90% RH; ±0.9°F at 72°F (±0.3°C at 25°C).
Hysteresis: ±1%.
Repeatability: ±0.1% typical.
Temperature Limits: -40 to 140°F (-40 to 60°C).
Storage Temperature: -40 to 176°F (-40 to 80°C).
Compensated Temperature: -40 to 140°F (-40 to 60°C).
Power Requirements: For instrinsically safe models HHT-IX; 9.5 to 28 VDC. For explosion-proof models HHT-EX; 16.5 to 28 VDC.
Output Signal: 4 to 20 mA; 2 channels for humidity/temperature models (loop power on RH).
Response Time: 15 s.
Electrical Connections: Screw terminal block.
Conduit Connection: 1/2" female NPT.
Drift: <1% RH/year.
RH Sensor: Capacitance polymer.
Temperature Sensor: Solid state band gap.
Housing Material: Aluminum.
Display: Optional 2 line alpha numeric; 8 characters/line. Temperature display is °F/°C selectable.
Display Resolution: RH: 0.1%; Temperature: 0.1°F (0.1°C).
Weight: 2 lb 8 oz (1134 g).
Enclosure Rating: NEMA 4X (IP66). Models HHT-EX: FM Explosion-proof; Class I Div. 1 Group B; C; D; Class II Div. 1 Group E; F; G; Class III Div. 1; Models HHT-IX: FM Instrinsically Safe; Class I Div. 1 Group A; B; C; D; Class II Div. 1 Group E; F; G; Class III Div. 1 T4.
Agency Approvals: FM; CE.
