HFS-2-02 | In-line flow monitor | 1/2" female NPT | 0.2-2 GPM (.75-7.5 LPM) water. | Dwyer Instruments

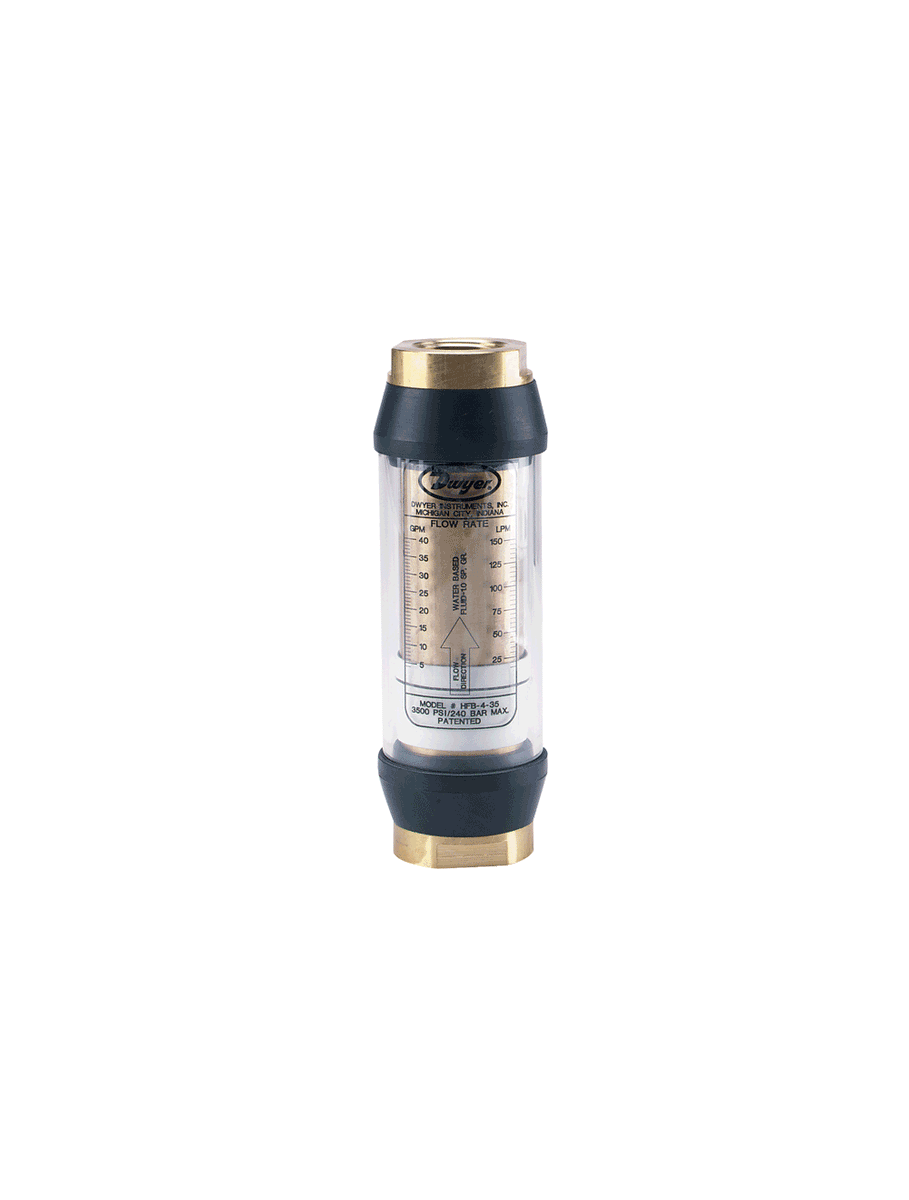

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HFS-2-02

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments HFS-2-02 Documents

Instruction Manual Series HF Catalog Page More Info

Overview

Details for HFS-2-02

The Dwyer Instruments HFS-2-02 Flow Monitor is an essential tool for industrial engineers and maintenance professionals seeking accurate, reliable flow measurement. Engineered with a 1/2" NPT connection, this stainless steel monitor can handle flow rates ranging from 0.2 to 2 GPM. Its precise monitoring capabilities allow for efficient and proactive maintenance, minimizing downtime and optimizing productivity.

Series HF In-Line Flow Monitors

For Air, Water or Caustic Fluids, ±2% FS, Unrestricted Mounting, High Temperature and Pressure Options

The Series HF In-Line Flow Monitors are ruggedly constructed and ideal for direct measurement for a range of compatible gases, oil or water based liquids. This Series is designed based on a floating orifice disk and variable area flow measurement. Flowing media forces linear motion of the orifice disk and a ring shaped magnet which ride on a tapered center shaft. The transfer magnet drives a clearly visible magnet follower located outside the flow tube, and a ring on the magnet follower indicates flow rate on the direct reading scale.

Note: If you require a calibration certificate with your flowmeter, please contact customer service to place your order.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Setting pressure relief valves
Fluid handling equipment
Detecting low-flow rates for lubricating liquids
Pulp and paper
Industrial maintenance
Fluid power
Heating loop flow

This unique design allows accurate performance with fluid viscosities up to 500 SSU
All internal wetted parts are contained inside a sealed metal tubular casing assuringa virtually maintenance-free unit
Increased application versatility with no inlet or outlet straight plumbing requirementand can be mounted horizontally, vertically, or inverted
Rugged construction allows for high pressure and temperature rating for longoperation life

Specifications

Series: HF In-Line Flow Monitors
freeship
Category/Type: Flow
Type: Flowmeters
Series: HF In-Line Flow Monitors
Service: Compatible gases or liquids.
Wetted Materials: HFA: Aluminum casing; Buna-N seals; PTFE coated Alnico magnet; SS disk; HFB: Brass casing; Buna-N seals; PTFE coated Alnico magnet; SS disk; HFS: 303 SS casing; FKM seals with PTFE backup; PTFE coated Alnico magnet; SS disk.
Maximum Viscosity: 500 SSU.
Temperature Limits: 240°F (116°C).
Pressure Limits: HFA; HFB; HFL and HFH models: 600 psig (41 bar) for air and gas;3500 psig (241 bar) for liquids;HFS model: 1000 psig (70 bar) for air and gas; 6000 psig (413 bar)for liquids.
Accuracy: ±4% FS over entire range; ±2.5% over center third of the measuring range.
Repeatability: ±1% of FS.
Shipping Weight: 1/4" to 1/2" female NPT models; 2 lb (0.9 kg);3/4" to 1" female NPT models: 3.5 lb (1.59 kg);1-1/2" female NPT models: 11 lb (5 kg);2" female NPT models: 13.5 lb (6.12 kg).
