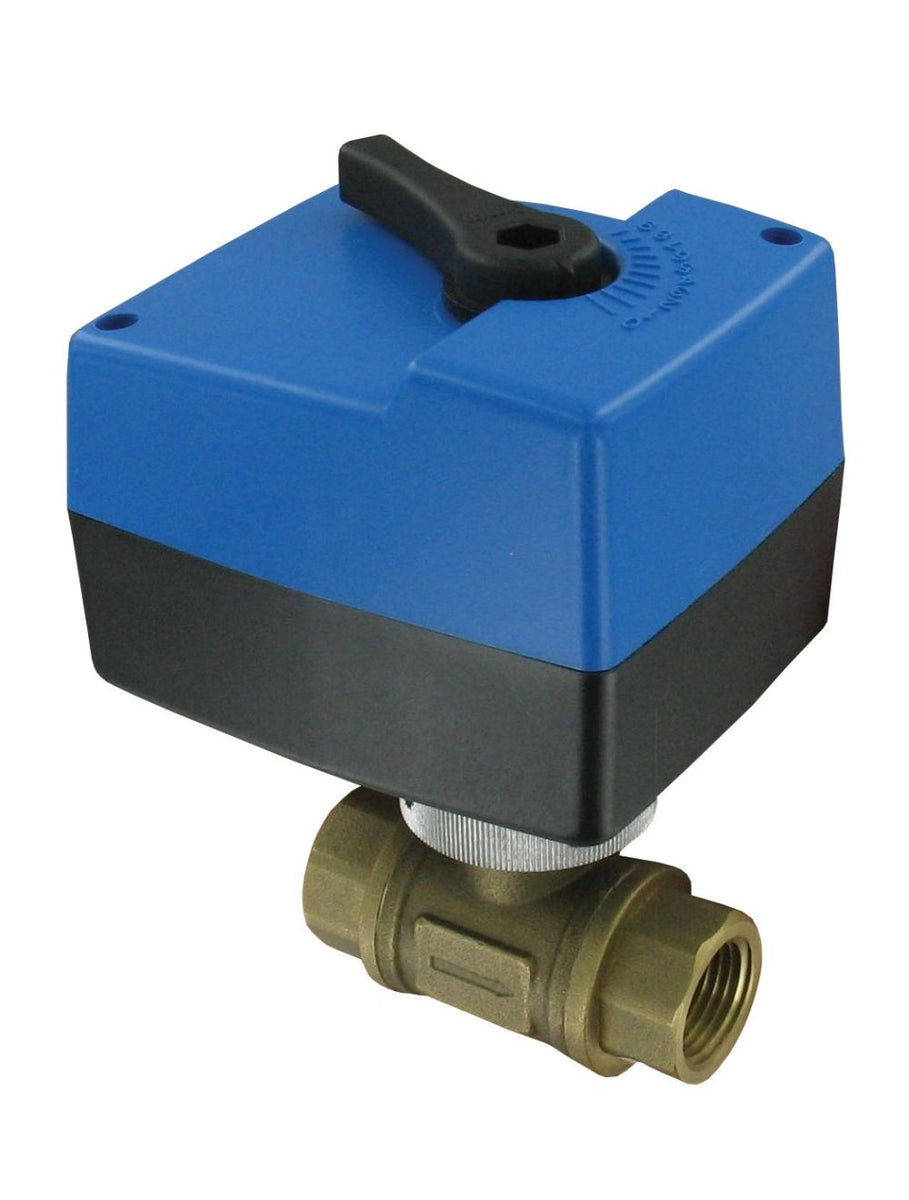

HBAV0214 | 2-Way ball valve | 1/2" NPT | floating | 24 VAC | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HBAV0214

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments HBAV0214 Documents

Instruction Manual Series HBAV Catalog Page More Info

Overview

Details for HBAV0214

Dwyer Instruments HBAV0214 1/2" NPT Floating 24VAC 2W Ball Valve Control the flow of fluids in your industrial and commercial systems with the Dwyer Instruments HBAV0214 1/2" NPT Floating 24VAC 2W Ball Valve. This valve is designed for precise and reliable flow control in a wide range of applications. Constructed with durable brass and featuring a floating ball design, the HBAV0214 valve ensures a tight seal and smooth operation. Its 1/2" NPT (National Pipe Thread) connections provide secure and leak-proof connections to standard piping systems. Operated by a 24VAC solenoid, this valve offers efficient and responsive flow control. Its 2W power consumption ensures energy-efficient operation, reducing your operating costs. With its compact size and lightweight design, the HBAV0214 valve is easy to install and maintain, making it an ideal solution for various flow control applications. Some common applications for the Dwyer Instruments HBAV0214 1/2" NPT Floating 24VAC 2W Ball Valve include: - Industrial fluid systems - Chemical processing - HVAC systems - Water treatment - Manufacturing processes If you're looking for a reliable and efficient flow control solution for your industrial or commercial applications, the Dwyer Instruments HBAV0214 1/2" NPT Floating 24VAC 2W Ball Valve is an excellent choice. Our HVAC supply store offers the best prices and fast shipping on all your industrial supply needs. Order yours today and experience the quality and reliability of Dwyer Instruments.

SERIES HBAV TWO-WAY DETACHABLE ELECTRIC BALL VALVE

Floating or Modulating, Position Indicator

The Series HBAV is an electrical ball valve ideal for flow control in hot andcold water HVAC systems. These valves are typically used in conjunction withair conditioning systems, heating systems, water treatment and productionindustries. The HBAV is electrically driven open and/or closed via abidirectional AC motor. The electrical valve offers a detachable actuator withposition switches and indicator. The HBAV is available with modulating orfloating actuators.

California Residents: Click Here for Proposition 65 WARNING.

Manual override
Detachable actuator
High Cv values

Specifications

Series: HBAV TWO-WAY DETACHABLE ELECTRIC BALL VALVE
Category/Type: Valves
Type: Valves
Valve Type: Ball
Series: HBAV TWO-WAY DETACHABLE ELECTRIC BALL VALVE
Service: Compatible fluids.
Body: 2-way; NC.
Line Size: 1/2 to 2" NPT.
End Connections: Female NPT.
Pressure Limits: Max: 375 psi (25 bar); Close off: 87 psi (6 bar).
Temperature Limit Ambient:: Ambient: -22 to 158°F (-30 to 70°C);Process: 23 to 122°F (-5 to 50°C).
Wetted Materials: Brass; SS; NBR; PTFE.
Input: Floating: 3-wire; Modulating: 4 to 20 mA (24 VAC power only).
Power Requirements: 120 VAC or 24 VAC; 50/60 Hz; single phase.
Power Consumption: Floating: 3 to 5 VA; Modulating: 4 VA.
Electrical Connection: 18 AWG.
Cycle Time (per 90°): 1/2 to 1": 45 sec.; 1-1/4 to 2": 50 sec.
Enclosure Rating: NEMA 1 (IP10).
Housing Material: Plastic; nylon; and polyoxymethylene.
Weight: See catalog page.
