GVS-111 | Globe valve switch | actuation set point 1.0-6.0 GPM (3.8-22.7 LPM). | Dwyer Instruments

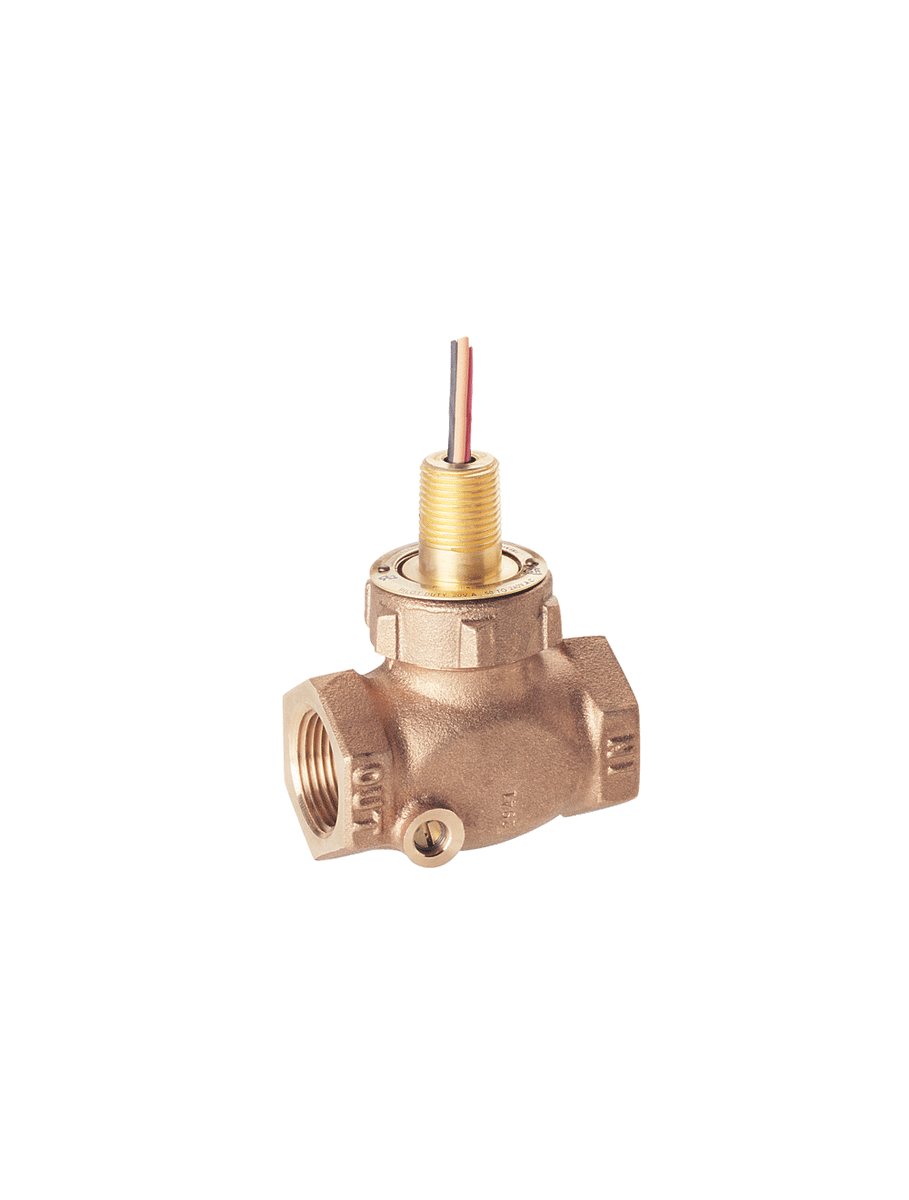

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GVS-111

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments GVS-111 Documents

GVS Series GVS Catalog Page More Info

Overview

Details for GVS-111

Dwyer Instruments GVS-111 Globe Valve Switch: Engineered for Efficient Flow ControlThe Dwyer Instruments GVS-111 Globe Valve Switch is a robust solution for controlling fluid flow in industrial applications. With its compact design and durable construction, this valve switch offers leak-proof operation and precise flow regulation.Key Features:- Compact and lightweight design for easy installation- Rugged brass body and stainless steel internals for longevity- Single-handle operation for effortless flow adjustment- Pressure ratings up to 150 psi for robust performance- Flow rates up to 6 gpm for efficient fluid managementApplications:- Regulating fluid flow in pipelines- Isolating equipment for maintenance or repair- Controlling the flow of liquids and gases in various industrial settings- Ideal for use in industrial, commercial, and OEM applicationsBenefits:- Ensures leak-proof operation for reliable fluid handling- Provides precise flow control for optimal system performance- Offers durability and longevity even in demanding environments- Simplifies maintenance and repair with single-handle operation- Backed by the trusted Dwyer Instruments brandShop our HVAC supply store for the Best Prices and Fast Shipping!

Series GVS Globe Valve Switch

Adjustable Set Point, Rugged Bronze Construction, Straight Through Flow

The Series GVS Globe Valve Switches offer accurate flow detection with 1% repeatability and external adjustability over a broad range of flow settings for compatible liquids.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Detection of improper flow rates in high volume lubrication
Low flow detection in cooling lines
Flow detection in process systems

Externally adjustable flow set point
Durable construction delivers long-life reliability in either water or oil
Ample space for flow to pass keep pressure drop low

Specifications

Series: GVS Globe Valve Switch
Category/Type: Flow
Type: Flow Switches
Series: GVS Globe Valve Switch
Service: Compatible liquids.
Wetted Materials: Housing: Bronze; Shuttle: TFE; Bonnet: Bronze; Spring: 316SS; Other: Fluoroelastomer; ceramic.
Temperature Limits: -20 to 200°F (-29 to 93°C).
Pressure Limits: 400 psig (27 bar) @ 100°F (38°C).
Accuracy: ±10%.
Repeatability: 1% maximum deviation.
Switch Type: SPDT.
Electrical Rating: .17 A @ 120 VAC; .08 A @ 240 VAC; .13 A @ 120 VDC; .06 A @ 240 VDC.
Electrical Connections: 18 AWG; 24" (61 cm) length; Polymeric lead wires.
Process Connections: 1" female NPT.
Mounting Orientation: Any position. Set points shown are based on horizontal; lead wires up positional.
Required Filtration: 150 microns or better.
Weight: 2 lb; 8 oz (1.16 kg).
Agency Approval: CE.
