GVD126.1U | Damper Actuator | Spring Return | 24 VAC | On/Off | 200 lb-in | SW | Siemens Building Technology

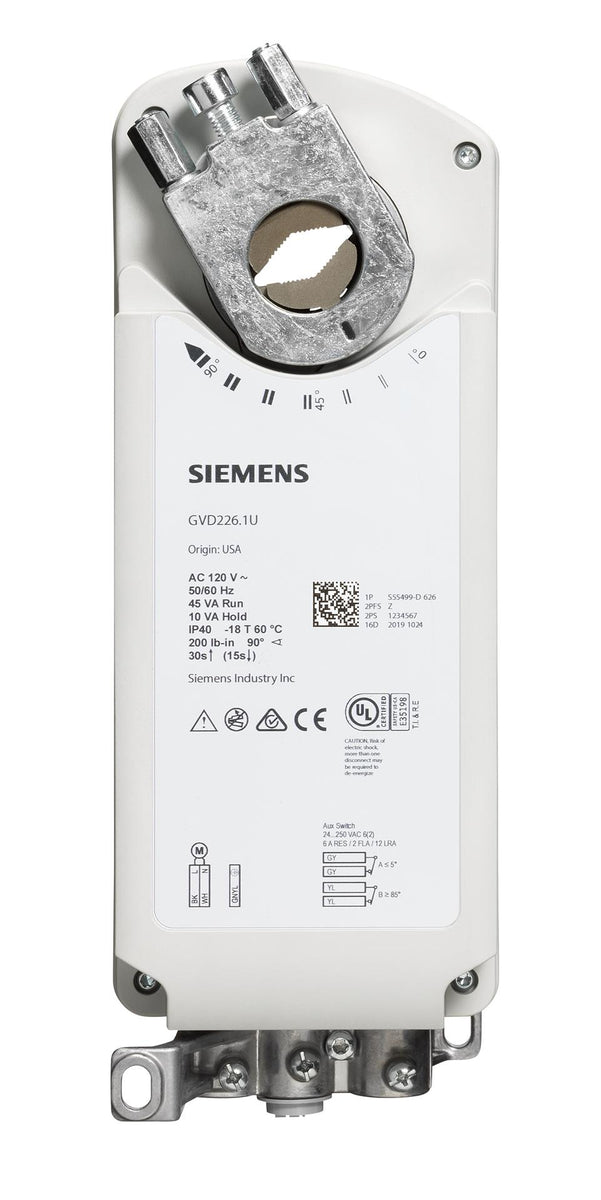

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GVD126.1U
Documents and manuals
Siemens Building Technology GVD126.1U Documents
Datasheet(OpenAir GVD/GKD Electronic Damper Actuator US Listed Fire/Smoke Technical Instructions)Declaration of conformity(Electromotoric damper actuators GVD…)Environmental Declaration(Damper Actuator GAP GVD Environmental Product Description)Installation instruction(OpenAir GVD_GKD Series Electronic Damper Actuator for UL Listed Fire_Smoke and Smoke Control Dampers Installation Instructions) More Info
Overview
Details for GVD126.1U
Siemens GVD126.1U 24V 2-POS FIRE&SMOKE DMPR ACT
The Siemens GVD126.1U is a 2-position fire and smoke damper actuator designed for use with 24V systems. This actuator is compatible with all Siemens GVD series dampers and is ideal for use in a variety of applications, including:
- HVAC systems
- Smoke control systems
- Fire protection systems
The GVD126.1U actuator is constructed of high-quality materials and is built to last. It features a durable metal housing and a heavy-duty motor that can withstand the demands of even the most challenging applications. The actuator also includes a built-in thermal overload protection circuit that helps to prevent damage to the motor in the event of a power surge or overload.
The GVD126.1U actuator is easy to install and operate. It comes with a variety of mounting options and can be easily connected to the damper using the included hardware. The actuator also features a manual override lever that allows you to open or close the damper manually in the event of a power outage or other emergency.
Our HVAC supply store has the best prices and fast shipping on Siemens GVD126.1U 24V 2-POS FIRE&SMOKE DMPR ACT. Order yours today!
Specifications
- Actuator Type
- Electronic Fire and Smoke
- Actuation Style
- Rotary
- Control or Fire/Smoke Type
- Fire/Smoke Control Damper
- Electronic Fusible Link (EFL)
- YES
- Plenum or Standard Rating
- Standard
- Torque
- 200 lb-in
- Fail Safe
- Yes
- Spring return function
- Spring return function
- Control Signal
- 2-position
- Positioning time
- Run time for 90° 30s nominal, Spring return 15 s max
- Power consumption
- 35 VA / 9 VA, Run / Hold
- Ambient temperature, operation
- 0…140 ºF
- Ambient humidity, operation
- 95 % r.h.
- Angular rotation
- 95°
- Supply Voltage
- 24 VAC
- Frequency
- 50/60
- Auxiliary Switch
- Yes
- Auxiliary switch
- 2
- Cable length
- 3 ft
- Dimensions (W x H x D)
- 3.8 x 10.75 x 3.4 in
- Material, housing
- NEMA 1 / IP40, plenum-rated plastic, high temperature polymer
- Standard
- UL60730; cUL CSA 60730; CE conformity for Residential, Commercial, and Industrial environments
