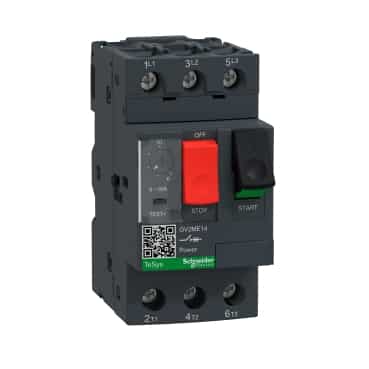

GV2ME14 | TeSys GV2 Circuit Breaker, Thermal Magnetic, 3-Pole, 10A, 690VAC, Screw Clamp Terminals, IP20 | Schneider Electric (Square D)

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GV2ME14

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) GV2ME14 Documents

More Info

Overview

Details for GV2ME14

Schneider Electric (Square D) GV2ME14 Motor Starter, Non-Reversing, 600V: The Schneider Electric (Square D) GV2ME14 motor starter is a non-reversing motor starter designed for use in industrial applications. It has a voltage rating of 600V and a current rating of 14A. The GV2ME14 is a compact motor starter that is easy to install and maintain. It has a wide range of features, including thermal overload protection, short-circuit protection, and phase loss protection. The GV2ME14 is a reliable and efficient motor starter that is ideal for use in a variety of industrial applications. Shop at our HVAC supply store for the best prices and fast shipping on the Schneider Electric (Square D) GV2ME14 motor starter! The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV2ME controls motors with full load currents up to 32 A. The manual starter is three pole with horsepower ratings. The manual starter is operated by push buttons. The Class 10 ambient compensated thermal over current is adjustable from 6 ampere to 10 ampere. This device has screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Specifications

range: TeSys Deca;TeSys Deca
product name: TeSys GV2;TeSys Deca
Product or Component Type: Motor circuit breaker
device short name: GV2ME
Device Application: Motor protection
poles description: 3P
network type: AC
Control Type: Push-button
motor power kW: 3 kW 400/415 V AC 50/60 Hz;4 kW 400/415 V AC 50/60 Hz;4 kW 500 V AC 50/60 Hz;5.5 kW 690 V AC 50/60 Hz;7.5 kW 690 V AC 50/60 Hz;5.5 kW 500 V AC 50/60 Hz
Line Rated Current: 10 A
trip unit technology: Thermal-magnetic
magnetic tripping current: 138 A
suitability for isolation: Yes IEC 60947-1 § 7-1-6
phase failure sensitivity: Yes IEC 60947-4-1
utilisation category: AC-3 IEC 60947-4-1;Category A IEC 60947-2
[Ue] rated operational voltage: 690 V AC 50/60 Hz IEC 60947-2
[Ith] conventional free air thermal current: 10 A IEC 60947-4-1
network frequency: 50/60 Hz IEC 60947-4-1
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947-2
power dissipation per pole: 2.5 W
mechanical durability: 100000 cycles
electrical durability: 100000 cycles AC-3 415 V;415 V
rated duty: Continuous IEC 60947-4-1
breaking capacity: 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2;100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2;3 kA Icu 690 V AC 50/60 Hz IEC 60947-2;10 kA Icu 500 V AC 50/60 Hz IEC 60947-2;15 kA Icu 440 V AC 50/60 Hz IEC 60947-2
[Ics] rated service short-circuit breaking capacity: 100 % 500 V AC 50/60 Hz IEC 60947-2;100 % 230/240 V AC 50/60 Hz IEC 60947-2;100 % 440 V AC 50/60 Hz IEC 60947-2;100 % 400/415 V AC 50/60 Hz IEC 60947-2;75 % 690 V AC 50/60 Hz IEC 60947-2
Height: 3.50 in (89 mm)
Width: 1.77 in (45 mm)
Depth: 3.09 in (78.5 mm)
Net Weight: 0.57 lb(US) (0.26 kg)
Standards: EN/IEC 60947-2;EN/IEC 60947-4-1
Product Certifications: CCC;UL;CSA;EAC;ATEX;BV;LROS (Lloyds register of shipping);UKCA;DNV-GL;RINA
climatic withstand: IACS E10
IP degree of protection: IP20 IEC 60529
ambient air temperature for operation: -4…140 °F (-20…60 °C)
Ambient Air Temperature for Storage: -40…176 °F (-40…80 °C)
fire resistance: 1760 °F (960 °C) IEC 60695-2-11
operating altitude: 6561.68 ft (2000 m)
Category: 22367-MANUAL STR PROTECTOR - GV2
Discount Schedule: I11
GTIN: 3389110343137
Returnability: Yes
Country of origin: TH
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.77 in (4.5 cm)
Package 1 Width: 3.35 in (8.5 cm)
Package 1 Length: 3.54 in (9.0 cm)
Package 1 Weight: 9.59 oz (272.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 24
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 14.93 lb(US) (6.773 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 384
Package 3 Height: 29.53 in (75.0 cm)
Package 3 Width: 31.50 in (80.0 cm)
Package 3 Length: 23.62 in (60.0 cm)
Package 3 Weight: 256.55 lb(US) (116.368 kg)
Warranty: 18 months
