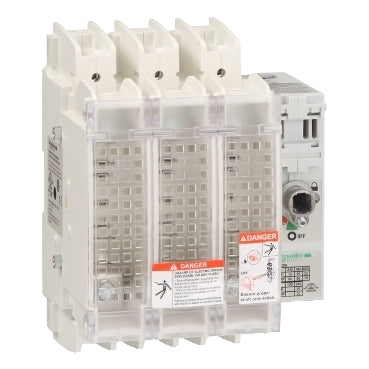

GS2JU3N | Disconnect Switch Fusible 600V 100A 3P | Schneider Electric (Square D)

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GS2JU3N

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) GS2JU3N Documents

More Info

Overview

Details for GS2JU3N

DICONNECT SWITCH FUSIBLE 100AThe GS2JU3N by Schneider Electric (Square D) is a fusible disconnect switch designed to provide overcurrent protection for electrical circuits. It features a 100A current rating and is suitable for use in various industrial and commercial applications. Key Features: * Fusible disconnect switch: Provides overcurrent protection by interrupting the circuit when a fault occurs. * 100A current rating: Suitable for applications with high current demands. * Durable construction: Built to withstand harsh industrial environments. * Easy installation: Designed for quick and efficient mounting. Applications: * Electrical distribution systems * Industrial machinery * Commercial buildings our HVAC supply store offers the GS2JU3N fusible disconnect switch at competitive prices with fast shipping. Contact us today for more information or to place an order! TeSys GS fuse switch-disconnector, 3 poles (3P), 100A/750V, to be used with class J fuse links up to 100A, for motor applications up to 51kW@400V AC-23. To be equipped with an external front side mounting operating handle GS2AH (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 200kA@600V. Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately). UL/CSA certified, Green Premium compliant (RoHS/REACh).

Specifications

range: TeSys
product name: TeSys GS
device short name: GS2JU
Product or Component Type: Switch-disconnector-fuse
Device Application: Protection
poles description: 3P
protected poles description: 3t
contacts type and composition: 3 NO
[Ith] conventional free air thermal current: 100 A 104 °F (40 °C)
[Ie] rated operational current: 100 A
fuse type: UL
fuse size: J
network type: AC;DC
Network Frequency: 50/60 Hz
type of operating handle: External frontal
Mounting Support: Plate
[Ui] rated insulation voltage: 750 V
[Uimp] rated impulse withstand voltage: 8 kV
rated operational power in W: 51 kW 400 V;63 kW 500 V;90 kW 690 V
short-circuit withstand: 22 kA
mechanical durability: 10000 cycles
electrical durability: 6000 cycles
connections - terminals: lugs-ring terminals;Power circuit bars 0.05…0.07 in² (34…42 mm²)
tightening torque: Power circuit 35.40 lbf.in (4 N.m)
Standards: CSA C22.2 No 4;UL98
IP degree of protection: IP20 IEC 60529 with terminal cover)
Ambient air temperature for operation: -4…158 °F (-20…70 °C)
Ambient Air Temperature for Storage: -40…176 °F (-40…80 °C)
fire resistance: 1760 °F (960 °C) body
Height: 7.32 in (186 mm)
Width: 5.88 in (149.3 mm)
Depth: 4.81 in (122.2 mm)
Net Weight: 6.09 lb(US) (2.761 kg)
Category: 22640-IEC DISCONNECT-GS1;LK3
Discount Schedule: I11
GTIN: 3606480512346
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.91 in (15.000 cm)
Package 1 Width: 9.25 in (23.500 cm)
Package 1 Length: 9.65 in (24.500 cm)
Package 1 Weight: 5.08 lb(US) (2.306 kg)
Unit Type of Package 2: S04
Number of Units in Package 2: 4
Package 2 Height: 11.81 in (30.000 cm)
Package 2 Width: 15.75 in (40.000 cm)
Package 2 Length: 23.62 in (60.000 cm)
Package 2 Weight: 22.13 lb(US) (10.036 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 16
Package 3 Height: 29.53 in (75.000 cm)
Package 3 Width: 23.62 in (60.000 cm)
Package 3 Length: 31.50 in (80.000 cm)
Package 3 Weight: 109.83 lb(US) (49.816 kg)
Warranty: 18 months
