GFM-1108 | Gas mass flow meter | range 0-2 LPM. Specified flow range is for an equivalent flow of nitrogen at 70┬°F (21┬°C) @ 760 mm Hg | 1/4" compression fitting. | Dwyer Instruments

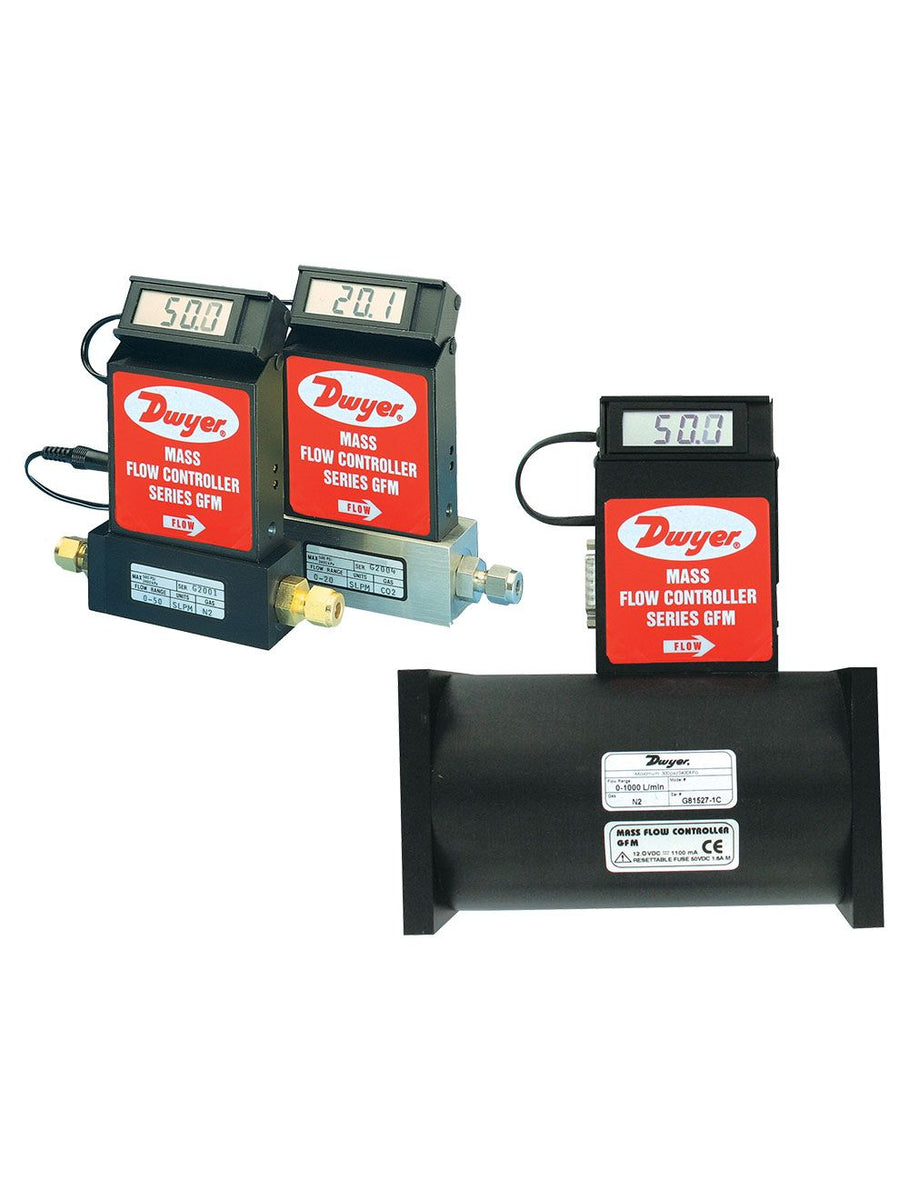

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GFM-1108

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments GFM-1108 Documents

GFM Manual Series GFM Catalog Page More Info

Overview

Details for GFM-1108

Dwyer Instruments GFM-1108 Gas Flow Meter The Dwyer Instruments GFM-1108 is a precise gas flow meter designed for measuring flow rates from 0 to 2 liters per minute (LPM). Its compact size and lightweight design make it ideal for portable or benchtop use. Featuring a durable construction and robust sensors, the GFM-1108 delivers accurate and reliable measurements, even in demanding environments. It utilizes a simple two-button interface for easy operation and calibration. The large, easy-to-read LCD display provides real-time flow measurements, allowing for precise control and monitoring. Additionally, the GFM-1108 offers programmable alarm settings, ensuring compliance with safety or process requirements. Key Features: * Flow range: 0-2 LPM * Accuracy: Â±0.5% of full scale * Repeatability: Â±0.2% of full scale * Compact and portable design * Rugged construction for harsh environments * Simple two-button interface * Programmable alarm settings * Large, backlit LCD display Applications: * Gas leak detection and monitoring * Flow rate measurement in medical devices * Industrial process control * Environmental monitoring * Laboratory analysis

Series GFM Gas Mass Flow Meter

Flow Range Up to 1000 L/min, Pressures Up to 1000 psi, NIST Traceable

Series GFM Gas Mass Flow Meters combine a straight tube sensor with a restrictor flow element to provide high accuracy and repeatability. Flow rates are virtually unaffected by temperature and pressure variations. Actual gas flow is displayed in engineering units on a 3-1/2 digit, 90° tiltable LCD readout. Units can be used with Series GFT Flow Totalizer for applications requiring totalization. Series GFM includes a NIST traceable certificate.

Note: These units require a cable, see GFM-CBL4 or GFM-CBL5, depending on your needs.

California Residents: Click Here for Proposition 65 WARNING.

Specifications

Series: GFM Gas Mass Flow Meter
freeship
Category/Type: Flow
Type: Mass Flowmeters and Controllers
Series: GFM Gas Mass Flow Meter
Service: Clean gases compatible with wetted parts.
Wetted Materials: GFM-1XXX: anodized aluminum; brass; 316 SS and fluoroelastomer o-rings; GFM-2XXX: 316 SS and fluoroelastomer o-rings.
Accuracy: ±1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series X143; X144; X145; ±1.5% FS.
Repeatability: ±0.25% of FS.
Response Time: 2 seconds to within ±2% of actual flow.
Output: Linear 0-5 VDC and 4-20 mA.
Maximum Particulate Size: 5 microns.
Temperature Limits: 32 to 122°F (0 to 50°C).
Power Supply: ±12 VDC.
Process Connections: 1/4" compression fitting for flow rates ≤50 L/m; 3/8" for 100 and 200 L/m; 1/2" for 500 L/min; 3/4" for 1000 L/min.
Pressure Limits: 1000 psig (68.9 bar); Series GFM-X143; X144; X145; 500 psig (34.5 bar).
Leak Integrity: 1 x 10-9 sccs of Helium.
Display: 90° tiltable; 3-1/2 digit.
Agency Approvals: CE.
