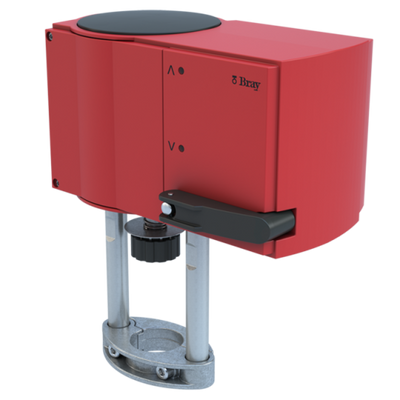

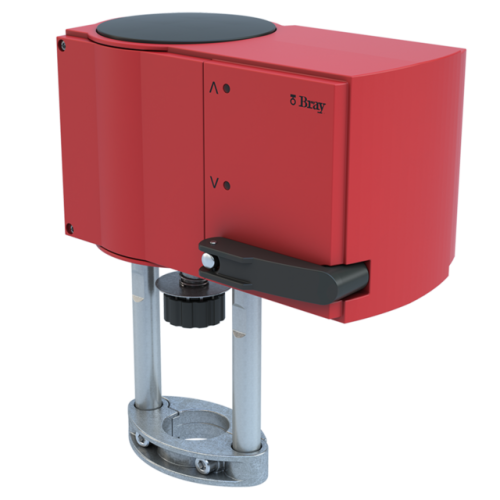

GASRE24-450 | Actuator | Spring Return | Normally Retracted | 24V | 450 In-Lbs | Bray Commercial

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GASRE24-450

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bray Commercial GASRE24-450 Documents

Bray GASRE24-450 Catalog Bray GASRE24-450 Submittal Bray GASRE24-450 Installer's Guide More Info

Overview

Details for GASRE24-450

Optimize Performance with Bray Commercial's NCO-GASRE24-450 Modulating Gas ValveThe NCO-GASRE24-450 is a 24V NEMA 1 MODULATING S/R gas valve from Bray Commercial, engineered to provide precise gas flow control in commercial and industrial applications. Its modulating design allows for continuous adjustment of gas flow, ensuring optimal performance and efficiency in various operating conditions. Constructed to meet NEMA 1 standards, the NCO-GASRE24-450 features a rugged enclosure that protects its internal components from harsh environments. Its compact design and lightweight construction make it easy to install and integrate into existing systems. This gas valve is equipped with a variety of control options, including manual override for quick and easy adjustments. Its fast response time and accurate flow control capabilities ensure precise gas delivery, leading to improved process efficiency and energy savings. Whether you need to control gas flow in HVAC systems, industrial burners, or other commercial applications, the NCO-GASRE24-450 from Bray Commercial is an ideal solution. Its reliability, efficiency, and ease of use make it a trusted choice among industrial engineers and maintenance professionals. Shop Now at our HVAC supply store our HVAC supply store offers the best prices and fast shipping on Bray Commercial's NCO-GASRE24-450 Modulating Gas Valve. Trust us for all your industrial and commercial supply needs!

Description:

Bray GASRE24-450 Actuator Features:

- 450 In-Lbs.

- 24 VAC / VDC.

- Spring return.

- Shaft normally retracted.
- On/Off, floating and modulating.

- IP66 enclosure.

- Manual override with external crank.

The Bray GA(S) series is a direct mount line of linear motor actuators to be used primarily on PIC and globe valves. The patented drive-valve coupling allows the drive to be connected to the valve automatically as soon as the power is applied to the actuator. An external crank handle enables the desired position to be set manually as well. Microprocessor technology enables the actuator to identify the functions required and to adapt itself automatically to the control valve properties.

These actuators operate on 24V AC or DC, and all input signals- 0-10V or 4-20mA modulating output, or On/Off (2-point) or Floating (3-point) control. The actuator automatically detects the control signal applied via a 2 LED display. These actuators operate both 2 and 3-way valves and are available in non-spring return (GA) and spring return (GAS) versions.

The GA(S) series is bi-directional, selectable via screw terminals.

Actuator Power:24V
Return Position:Spring Return

Specifications

Product: GASRE24-450
Actuator Control Signal: Floating | Modulating | On/Off
Actuator Action: Spring Return
Actuator Features: Enclosed Terminal Strip | Time Out
Actuator Power Supply: 24 VAC
Area Classification: IP66
Torque Imperial: 450
Actuator Stroke Time: Dip Switch Adjustable- 51 Sec/inch, 2 Sec/mm; 102 Sec/inch, 4 Sec/mm; 153 Sec/inch, 6 Sec/mm; Spring Run Time 15-30 Seconds
Conduit Connection: Knock Out - M20×1.5 (2×) and M16×1.5
Weight Lbs: 12.3
