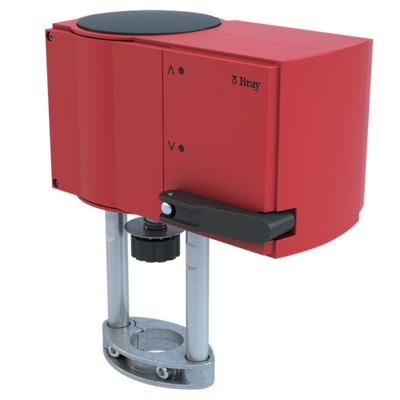

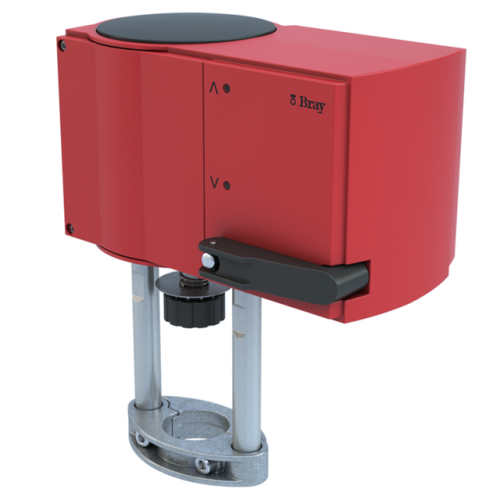

GA24-562 | Actuator | Non Spring Return | 24V | 562 In-Lbs | Bray Commercial

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GA24-562

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bray Commercial GA24-562 Documents

Bray GA24-562 Catalog Bray GA24-562 Submittal Bray GA24-562 Installer's Guide More Info

Overview

Details for GA24-562

Non-Spring Return Actuator (GA24-562): A Reliable Solution for Industrial Automation The Bray Commercial GA24-562 is a non-spring return actuator designed to provide precise control and reliable operation in industrial automation applications. This actuator is powered by a 24V power supply and provides linear motion for various industrial processes. Featuring a compact and durable design, the GA24-562 is built to withstand demanding industrial environments. Its sturdy construction ensures long-lasting performance, even in harsh conditions. This actuator offers precise control and response, making it suitable for applications requiring accurate positioning and repeatability. The GA24-562 is an ideal choice for a variety of industrial automation applications, including: Valve control Conveyor systems Robotic systems Packaging machinery And many more By choosing our HVAC supply store for your GA24-562 actuator needs, you're guaranteed the best prices and fast shipping. our HVAC supply store is your trusted source for industrial automation products and solutions. Contact us today to learn more about the GA24-562 actuator and how it can enhance your industrial processes.

Description:

Bray GA24-562 Actuator Features:

- 562 In-Lbs.

- 24 VAC / VDC.

- Non-failsafe.
- On/Off, floating and modulating.

- IP66 enclosure.

- Manual override with external crank.

The Bray GA(S) series is a direct mount line of linear motor actuators to be used primarily on PIC and globe valves. The patented drive-valve coupling allows the drive to be connected to the valve automatically as soon as the power is applied to the actuator. An external crank handle enables the desired position to be set manually as well. Microprocessor technology enables the actuator to identify the functions required and to adapt itself automatically to the control valve properties.

These actuators operate on 24V AC or DC, and all input signals- 0-10V or 4-20mA modulating output, or On/Off (2-point) or Floating (3-point) control. The actuator automatically detects the control signal applied via a 2 LED display. These actuators operate both 2 and 3-way valves and are available in non-spring return (GA) and spring return (GAS) versions.

The GA(S) series is bi-directional, selectable via screw terminals.

Actuator Power:24V
Return Position:Non-Spring Return

Specifications

Product: GA24-562
Actuator Control Signal: Floating | Modulating | On/Off
Actuator Action: Non Spring Return
Actuator Features: Enclosed Terminal Strip | Time Out
Actuator Power Supply: 24 VAC
Area Classification: IP66
Torque Imperial: 562
Actuator Stroke Time: Dip Switch Adjustable- 51 Sec/inch, 2 Sec/mm; 102 Sec/inch, 4 Sec/mm; 153 Sec/inch, 6 Sec/mm
Conduit Connection: Knock Out - M20×1.5 (2×) and M16×1.5
Weight Lbs: 9.1
