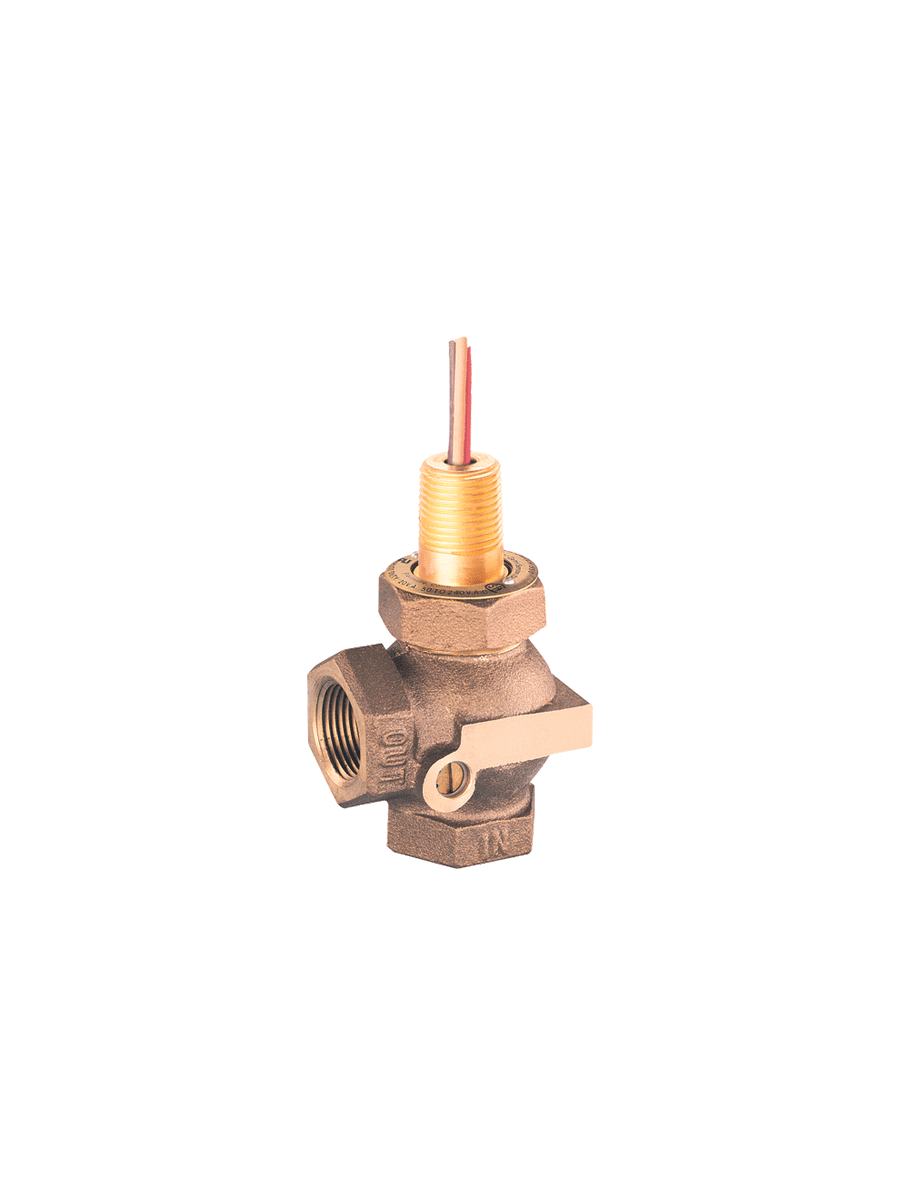

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to G9-23

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments G9-23 Documents

G9 Series G9 Catalog Page More Info

Overview

Details for G9-23

Dwyer Instruments G9-23 Globe Flow Switch: A Versatile Solution for Liquid Flow Monitoring Dwyer Instruments G9-23 Globe Flow Switch is a reliable and accurate flow switch designed to monitor the flow of liquids in pipes. It is ideal for a wide range of industrial applications, including water treatment, chemical processing, and HVAC systems. Key Features: - Adjustable flow range of 7.0 to 14 GPM - Globe-style body for low-pressure drop - SPDT snap-action switch for precise flow detection - Durable brass construction for long-lasting operation - Compact design for easy installation Benefits: - Monitors liquid flow to prevent equipment damage or system failure - Adjustable flow range provides versatility for various applications - Low-pressure drop design minimizes energy loss - SPDT switch ensures reliable and responsive flow detection - Brass construction withstands harsh environments Applications: - Flow monitoring in water pipes and treatment systems - Chemical processing equipment - HVAC systems - Irrigation systems - Industrial machinery Technical Specifications: - Flow Range: 7.0 to 14 GPM - Body Material: Brass - Switch Type: SPDT snap-action - Electrical Rating: 10A at 120/240 VAC - Pressure Rating: 150 psi - Temperature Rating: 200Â°F Enhance your liquid flow monitoring system with the reliable and efficient Dwyer Instruments G9-23 Globe Flow Switch. Our HVAC supply store offers competitive pricing and fast shipping on all Dwyer Instruments products. Contact us today for more information and to place your order!

Series G9 Globe Flow Switch

Adjustable Set Point, Water or Oil Service, 90° Flow Path

The Series G9 Globe Flow Switch provides accurate flow detection in water and oil with ±1% repeatability. A shuttle bypass vane inside the housing is controlled externally using an ordinary flat blade screwdriver, allowing flow settings to be changed without disassembly. Each switch is constructed of noncorrosive materials and resists shock and vibration. The Series G9 is suitable for triggering alarms on interlocking shutdown circuitry when flow rate is incorrect and for protecting bearings, gears, and cooling systems.

California Residents: Click Here for Proposition 65 WARNING.

Specifications

Series: G9 Globe Flow Switch
Category/Type: Flow
Type: Flow Switches
Series: G9 Globe Flow Switch
Service: Compatible liquids.
Wetted Materials: Housing: bronze; Shuttle: Acetal; Spring: 316 SS; O-ring: Fluoroelastomer; Other: ceramic.
Temperature Limits: -20 to 180°F (-29 to 82°C).
Pressure Limits: 400 psi (27 bar) @ 100°F (37.8°C).
Accuracy: ±10% of set point.
Repeatability: ±1% maximum deviation.
Switch Type: SPDT.
Electrical Rating: .17 A @ 120 VAC; .08 A @ 240 VAC; .13 A @ 120 VDC; .06 A @ 240 VDC.
Electrical Connections: 18 AWG; 24" (61 cm); polymeric lead wires.
Process Connection: 3/4" female NPT.
Mounting Orientation: Any position. Set points shown are based on vertical; lead wires up position.
Required Filtration: 150 microns or better.
Weight: 1 lb; 11 oz (0.76 kg).
Agency Approval: CE.
