F7-SB | Vertical level switch | Buna-N & epoxy float | 316SS stem | temperature limit 220°F (105°C) | pressure limit 150 psig (10 bar) | 1/8" male NPT mounting | UL listed | Dwyer Instruments

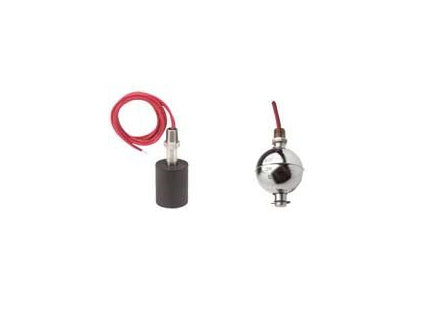

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to F7-SB

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments F7-SB Documents

F6 F7 F7-BB F7-PS F7-PVC F7-ST713 F7-ST714 F7-T1 Series F6 & F7 Vertical Catalog Page More Info

Overview

Details for F7-SB

Dwyer Instruments' F7-SB is a general-purpose level switch designed for use in high-temperature and high-pressure applications up to 220Â°F and 150 psi. The switch features a rugged stainless steel body and a corrosion-resistant exterior, making it suitable for harsh industrial environments. It utilizes a stainless steel diaphragm and a Buna-N O-ring for reliable sealing. The F7-SB has a SPDT contact arrangement and a maximum electrical rating of 5A at 125/250VAC. It has a 1/2" NPT male process connection and comes complete with a 1/2" NPT male conduit connection. The F7-SB is ideal for use in various applications, including liquid level control, pump control, and alarm systems.

Series F6 & F7 Level Switches – Vertical

Low Cost, Reliable and Compact, Hermetically Sealed Contacts

The Series F6 & F7 Vertical Level Switches are designed to be mounted at themaximum or minimum level point to provide level indication and control. Models areshipped with normally open switch contacts which close as the float rises toward themounting threads.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Water level monitoring
Oil level control
Chemical level indication
Sumps
Stand pipes
Tank level control
High viscosity liquids

Combine low cost and reliability with fast, simple installation
Hermetically sealed reed switches are actuated by magnets permanently bonded inside the float and can be easily adapted to open or close a circuit on rising or falling levels
Easily reverse switch action by removing the float, rotating it end-for-end and replacing it on the stem
Vertical models mount internally, oriented within 30° of vertical, or select optional fittings for external mounting
Switch ratings are suitable for many solid state control systems and monitors or alarms
Simple relay interfaces can be used for higher current applications
