F6-SS | Vertical level switch | 316SS float and stem | temperature limit 257°F (125°C) | pressure limit 218 psig (15 bar) | 1/8" male NPT mounting | Dwyer Instruments

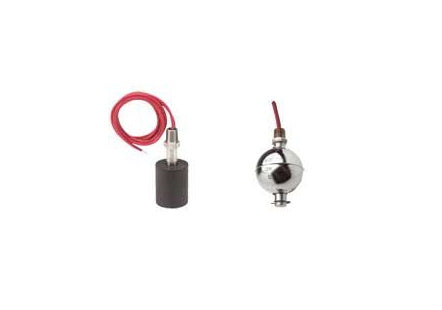

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to F6-SS

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments F6-SS Documents

F6 F7 F7-BB F7-PS F7-PVC F7-ST713 F7-ST714 F7-T1 Series F6 & F7 Vertical Catalog Page More Info

Overview

Details for F6-SS

Dwyer Instruments F6-SS VERTICAL LEVEL SWITCH 316SS The F6-SS vertical level switch from Dwyer Instruments is constructed from 316 stainless steel for durability and corrosion resistance. It features a compact design and a narrow differential, making it suitable for a wide range of level detection applications. The F6-SS is ideal for use with liquids and granular materials and can be mounted vertically or horizontally. Key Features: - 316 stainless steel construction for durability and corrosion resistance - Narrow differential for precise level detection - Compact and versatile design for easy installation and use - Can be mounted vertically or horizontally - Wide range of applications, including liquids and granular materials Benefits: - Accurate and reliable level detection - Durable and long-lasting - Versatile and easy to install - Suitable for a variety of applications Shop our HVAC supply store for the best prices and fast shipping on Dwyer Instruments F6-SS VERTICAL LEVEL SWITCH 316SS. We also have a wide selection of other Dwyer Instruments products, including pressure switches, flow switches, and temperature switches.

Series F6 & F7 Level Switches – Vertical

Low Cost, Reliable and Compact, Hermetically Sealed Contacts

The Series F6 & F7 Vertical Level Switches are designed to be mounted at themaximum or minimum level point to provide level indication and control. Models areshipped with normally open switch contacts which close as the float rises toward themounting threads.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Water level monitoring
Oil level control
Chemical level indication
Sumps
Stand pipes
Tank level control
High viscosity liquids

Combine low cost and reliability with fast, simple installation
Hermetically sealed reed switches are actuated by magnets permanently bonded inside the float and can be easily adapted to open or close a circuit on rising or falling levels
Easily reverse switch action by removing the float, rotating it end-for-end and replacing it on the stem
Vertical models mount internally, oriented within 30° of vertical, or select optional fittings for external mounting
Switch ratings are suitable for many solid state control systems and monitors or alarms
Simple relay interfaces can be used for higher current applications
