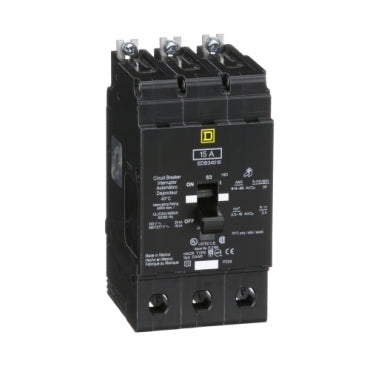

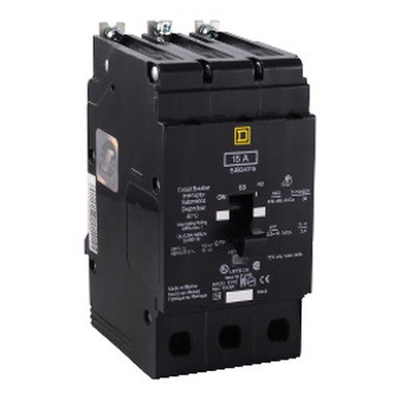

EDB34015 | Miniature Circuit Breaker, 15A, 3-Pole, 480Y/277V AC, 18/25kA, Bolt-on Mount | Schneider Electric (Square D)

Schneider Electric's EDB34015 Circuit Breaker offers reliable protection for your electrical systems. Featuring a 15A capacity and 480V voltage rating, this circuit breaker is ideal for 3-phase applications. Its compact design makes it suitable for various installations, ensuring safe and efficient operation. The Schneider Electric (Square D) brand guarantees quality and durability, making the EDB34015 Circuit Breaker a reliable choice for industrial engineers and maintenance professionals. Our HVAC supply store offers the best prices and fast shipping on products like this one, so shop now and get your electrical systems protected with confidence! E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This device is a 3 pole bolt-on breaker that is rated at 15 A at a system voltage of 480Y/277 VAC and the breaker is UL Listed as well as CSA rated. This E-Frame breaker has thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. This specific breaker is HACR rated and HID rated. The breaker has aluminium lugs which have a terminal lug rating of AWG 12...AWG 6 (aluminium) and AWG 14...AWG 6 (copper). This E-frame breaker breaking capacity has been tested a numerous voltages but at two voltages the capacity is 18 kA at 480Y/277 VAC and 25 kA at 120/240 VAC. This device has a hold current of 270 A which is the maxiumum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. The circuit breaker has a height of 5.66 in, width of 2.94 in and a depth of 4.05 in. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.
