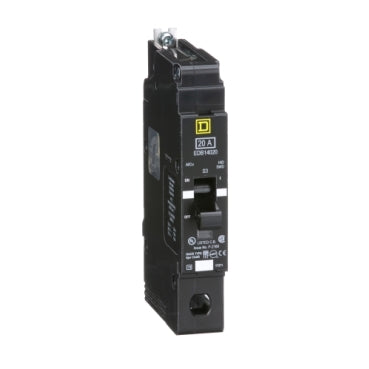

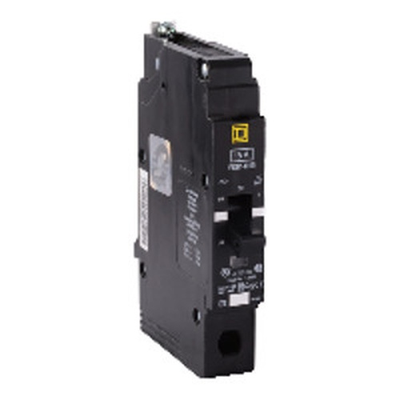

EDB14020 | Miniature Circuit Breaker, 20A, 1-Pole, 277V, 18/25kA, Bolt-on Mount | Schneider Electric (Square D)

EDB14020 Circuit Breaker: Reliable Protection for Electrical Systems Schneider Electric (Square D) brings you the EDB14020, a dependable circuit breaker designed to protect electrical systems from overcurrent conditions. Rated at 20 amperes and designed for single-phase applications, it effectively interrupts excessive current flow, preventing damage to equipment and electrical hazards. The EDB14020 operates at 277 volts AC, making it suitable for commercial and industrial environments. Its compact design allows for easy installation in electrical panels, providing maximum space utilization. Built to withstand harsh conditions, the EDB14020 features a sturdy construction that ensures durability and reliability. Its high-quality components and precision engineering contribute to its extended lifespan, providing years of uninterrupted service. Our HVAC supply store offers the EDB14020 at the most competitive prices with fast and reliable shipping. Order now and enjoy the peace of mind that comes with protecting your electrical systems with Schneider Electric's proven circuit breakers. E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This device is a 1 pole bolt-on breaker that is rated at 20 A at a system voltage of 277 VAC and the breaker is UL Listed as well as CSA rated. This E-Frame breaker has thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. This specific breaker is HID rated, Switching Duty rated and HACR rated. he breaker has aluminium lugs which have a terminal lug rating of AWG 12...AWG 6 (aluminium) and AWG 14...AWG 6 (copper). This E-frame breaker breaking capacity has been tested a numerous voltages but the capacity is 25 kA at 120 VAC. This device has a hold current of 270 A which is the maxiumum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. The circuit breaker has a height of 5.66 in, width of 0.98 in and a depth of 4.05 in. This breaker was calibrated for 40 degrees C. This product is UL Listed as Switching duty and High Intensity Discharge. HACR rated.
