Details for EDAW-N1E1-06T0

Dwyer Instruments EDAW-N1E1-06T0: Precise Electronic Draft Control for Industrial Applications The Dwyer Instruments EDAW-N1E1-06T0 is an electronic draft controller designed to provide precise and reliable draft control in industrial applications. With a measurement range of 0-300 inches of water column and a control accuracy of Â±0.5% of full scale, this instrument ensures optimal draft conditions for combustion processes, air handling systems, and other industrial applications. Featuring a rugged NEMA 1 enclosure and a 1/4" NPT connection for easy installation, the EDAW-N1E1-06T0 can withstand harsh industrial environments. Its simple and intuitive user interface allows for quick setup and configuration, and its compact design makes it ideal for applications where space is limited. The Dwyer Instruments EDAW-N1E1-06T0 is an essential tool for industrial engineers and maintenance professionals seeking precise and reliable draft control. Trust our HVAC supply store for the best prices and fast shipping on all your industrial supply needs!

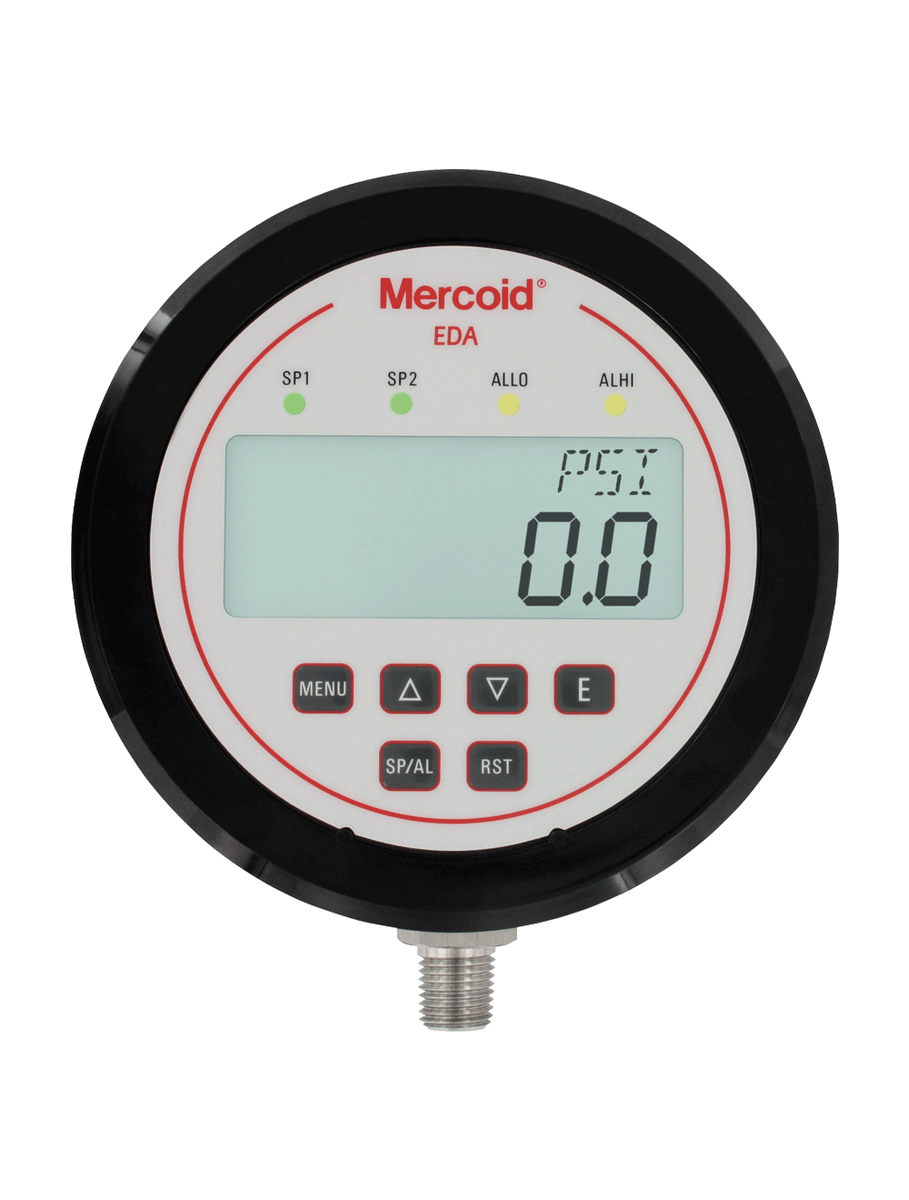

SERIES EDA ELECTRONIC PRESSURE CONTROLLER

2 Switches, Indicating Gage, and Transmitter in One Package

Series EDA Electronic Pressure Control is an extremely versatile compact package that can replace a separate gage, two switches, and a transmitter in a system saving money, installation time, and panel space. The EDA incorporates two SPDT relays that have the on and off points fully adjustable over the range for control or alarm use. Front face has LED indicators for switch status and a large backlight two-line display showing process value and indication units. Programming is easy with simple menu structure, two-line display, and external programming buttons. Weatherproof housing is ideal for a wide variety of applications with panel mount, flush mount, or pipe mount ability. Features include zero set, adjustable dampening, menu lock out, peak and valley indication, removable terminal blocks, adjustable time delay, and scalable transmitter output.

NIST CALIBRATION available in Product Configurator.

Product Applications

Process control
Compressor control
Filter status
Duct or building static pressure
Damper and fan control

Display Units: psi, kg/cm², bar, in Hg, ft w.c., kPa, MPa, %FS, in w.c., mbar, cm w.c., mm Hg, or oz/in² (choices depend on range).
Test Mode: Simulates input over the range without pressuring to easily test switches and transmitter output feature.
Fail-safe: For sensor failure, over pressure, high temperature limit, low temperature limit, or keypad short. User chooses if relay is de-energized, energized, or no action. With transmitter option, user chooses an output of 3.6 mA22 mA, or no action.
Alternation: Selectable alternation of set points between the relays for even wear on duplex pump applications.
Versatile Compact Package: Can replace a separate gage, two switches, and a transmitter in a system saving, money, installation time, and panel space.
Fully Programmable: To meet simple or complex application needs.
Weatherproof Housing: Ideal for a wide variety of applications with panel mount, flush mount, or pipe mount ability.

Specifications

Series: EDA ELECTRONIC PRESSURE CONTROLLER
Category/Type: Pressure
Type: Single Pressure
Series: EDA ELECTRONIC PRESSURE CONTROLLER
Service: Compatible liquids and gases.
Wetted Materials: 316L SS.
Housing: Polycarbonate.
Accuracy: ±1% of FS including linearity; hysteresis; and repeatability (indicator and transmitter).
Stability: < ±2% of FS per year.
Pressure Limits: 1.5 x range.
Temperature Limits: Ambient: 20 to 140°F (-6.6 to 60°C); Process: 0 to 176°F (-18 to 80°C).
Compensated Temperature Limits: 32 to 122°F (0 to 50°C).
Thermal Effect: ±0.05% of F.S./°F.
Display: 4-digit backlit LCD (Digits: 0.60"H x 0.33"W).
Power Requirements: 12-28 VDC/AC50/60 Hz. (Can work at 8 VDC for 45 s).For T5 option: 14-30 VDC/AC 50/60 Hz.For -HV option: 120-240 VAC.
Power Consumption: 12-28 VDC/VAC:2.5 watts; 120-240 VAC: 4.5 watts.
Electrical Connections: Removable terminal blocks with two 1/2" female NPT conduit connections.
Enclosure Rating: Meets NEMA 4X (IP65).
Warm Up Time: <10 seconds.
Mounting Orientation: Any position.
Weight: 1.18 lbs (535 g).
Agency Approvals: CE; UL.
SWITCH SPECIFICATIONS
Switch Type: 2 SPDT relays.
Electrical Rating: 5 A @ 120/240VAC; 1 A @ 30 VDC.
Repeatability: ±1% of FS (switching only).
Set Points: Adjustable 0-100% of FS.
Switch Indication: External LED for each relay on the front panel.
Switch Reset: Manual or Automatic.
TRANSMITTER SPECIFICATIONS
Output Signal: 4-20 mA; 1-6 VDC; 1-5 VDC; 0-5 VDC; or 0-10 VDC (direct or reverse output selection).
Minimum Excitation: 14 VDC.
Zero and Span Adjustments: Menu scalable within the range.
