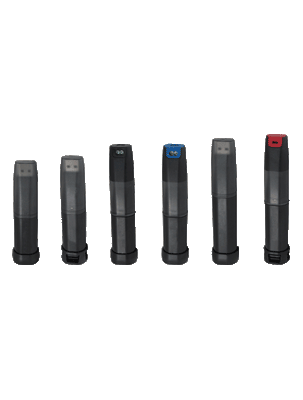

DW-USB-2 | Compact USB data logger | temperature/humidity/dew point input. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DW-USB-2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments DW-USB-2 Documents

Instruction Manual Series DW-USB Catalog Page More Info

Overview

Details for DW-USB-2

Dwyer Instruments NCO-DW-USB-2 Compact USB Data Logger This compact and reliable USB data logger from Dwyer Instruments is designed to simplify data logging and analysis for industrial engineers and maintenance professionals. With its advanced features, the NCO-DW-USB-2 offers a wide range of applications, including temperature, pressure, humidity, and other critical parameter monitoring. Its versatile design allows for easy integration with various sensors and software platforms. Key Features: * USB 2.0 interface for convenient data transfer * Compact size for easy deployment * Compatible with Windows and macOS operating systems * Easy-to-use software for data logging and analysis * Durable construction for industrial environments Benefits: * Improve accuracy and efficiency in data logging * Monitor and analyze critical parameters in real-time * Easily track and record data for analysis and reporting Our HVAC supply store offers the best prices and fast shipping for all your industrial equipment needs. Order your Dwyer Instruments NCO-DW-USB-2 Compact USB Data Logger today and experience the benefits of reliable and efficient data logging.

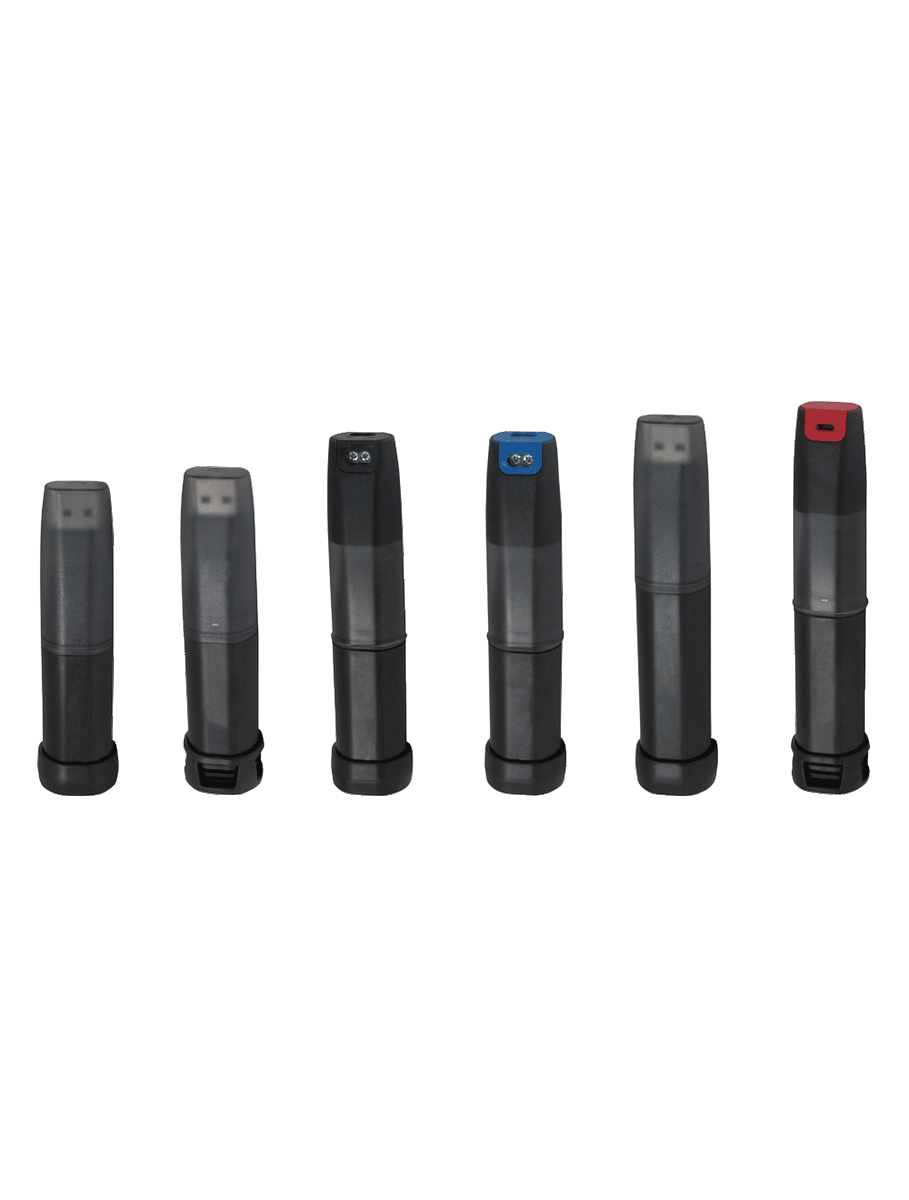

SERIES DW-USB COMPACT USB DATA LOGGER

Measure Temperature, Humidity, Dew Point, Current, Voltage, or Carbon Monoxide

The Series DW-USB Compact USB Data Logger allows users to monitor temperature, humidity, dew point, voltage, current, or carbon monoxide almost anywhere, and then download stored data by simply plugging the module directly into a PC’s USB port. The compact housing can resist moisture up to IP67 when the protective cap is attached, and has built in LED’s to indicate an alarm has been met or the battery is low. Users can set the sampling rate, start time, high/low alarms, and temperature unit via software available for free download from our website.

Product Applications

Calibration labs
Environmental chambers
Pharmaceutical plants
Storage warehouses

Meets IP67 standards when the protective cap is fitted
All in one unit plugs into PC with no cable required
LED status indicators for visual confirmation
Optional integral LCD display for local indication

Specifications

Series: DW-USB COMPACT USB DATA LOGGER
Category/Type: Test Equipment
Type: Data Loggers
Series: DW-USB COMPACT USB DATA LOGGER
Memory Size: 16;382 temperature;16;382 each temperature and RH;32;764 readings for voltage; current;and thermocouple; and 32;510 forcarbon monoxide.
Sampling Mode: Stop on memory full.
Sampling Rate: Selectable from 10 s to 12 hr (temperature and RH models); 1 s to 12 hr (voltage; current; and thermocouple models); 10 s to 5 m (CO models).
Computer Requirements: Compatible with Windows® 7; Windows® 8; and Windows® 10.
Power Requirements: 3.6 V 1/2 AAlithium metal battery; included; user-replaceable.
Housing: ABS plastic blend.
Alarms: Programmable high/low.
Interface: USB Port.
Weight: 1.5 oz (43 g).
Agency Approvals: CE.
