DS06-104-SUT-LF | 1 1/2 INCH DS06 "DIALSET" LOW LEAD PRESSURE REGULATING VALVE (PRV) - SINGLE UNION NPT | Resideo

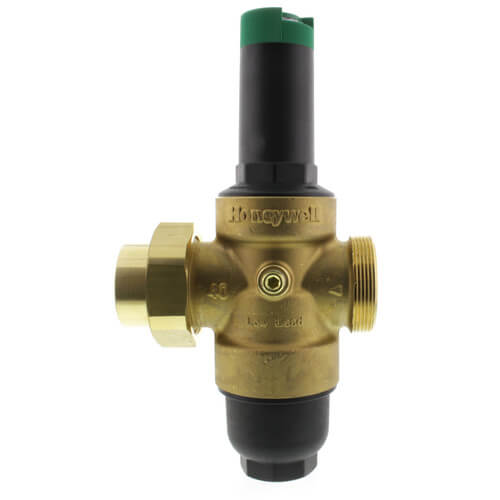

Resideo 1.5" DialSet PRV W/Bypass (DS06-104-SUT-LF)This Resideo DialSet pressure reducing valve (DS06-104-SUT-LF) effectively regulates water pressure in commercial and industrial applications. With a working pressure range of 25 to 90 psi and a maximum pressure of 150 psi, it ensures stable water flow and protects downstream fixtures and equipment from damage caused by excessive pressure.The lead-free construction guarantees safety and compliance with health regulations. Its bronze body offers durability and corrosion resistance, while the EPDM diaphragm and stainless-steel spring ensure reliable performance over an extended lifespan. The bypass feature allows for easy maintenance and repairs without interrupting the water supply.This valve is suitable for a variety of applications, including water supply lines, irrigation systems, and industrial processes. Our HVAC supply store offers this Resideo pressure reducing valve at competitive prices with fast shipping. Shop now for quality products and service!

Application

The Honeywell DS06 Dial Set® Pressure Regulating Valve is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).

Specifications

Model: DS06 Dial Set Pressure Regulating Valves.

Construction Materials:

Body: Brass.
Internal Parts: Stainless steel and engineered plastics.
Regulator Mechanism: Fabric-reinforced diaphragm.
Seat Design: Balanced single seat construction.
Inlet Pressure (Maximum): 250 psi maximum.
Reduced Pressure Range: 25 to 90 psi (1/2 in. to 2 in.).
Outlet Pressure: Factory set at 60 psi (414 kPa). Dial Calibration: ± 4 psi.
Differential: 14.5 psi minimum (inlet to outlet).
Fluid Temperature (Maximum): Water: 140° F (60° C).
