DS-400-16 | Flow sensor | 16" pipe size. | Dwyer Instruments

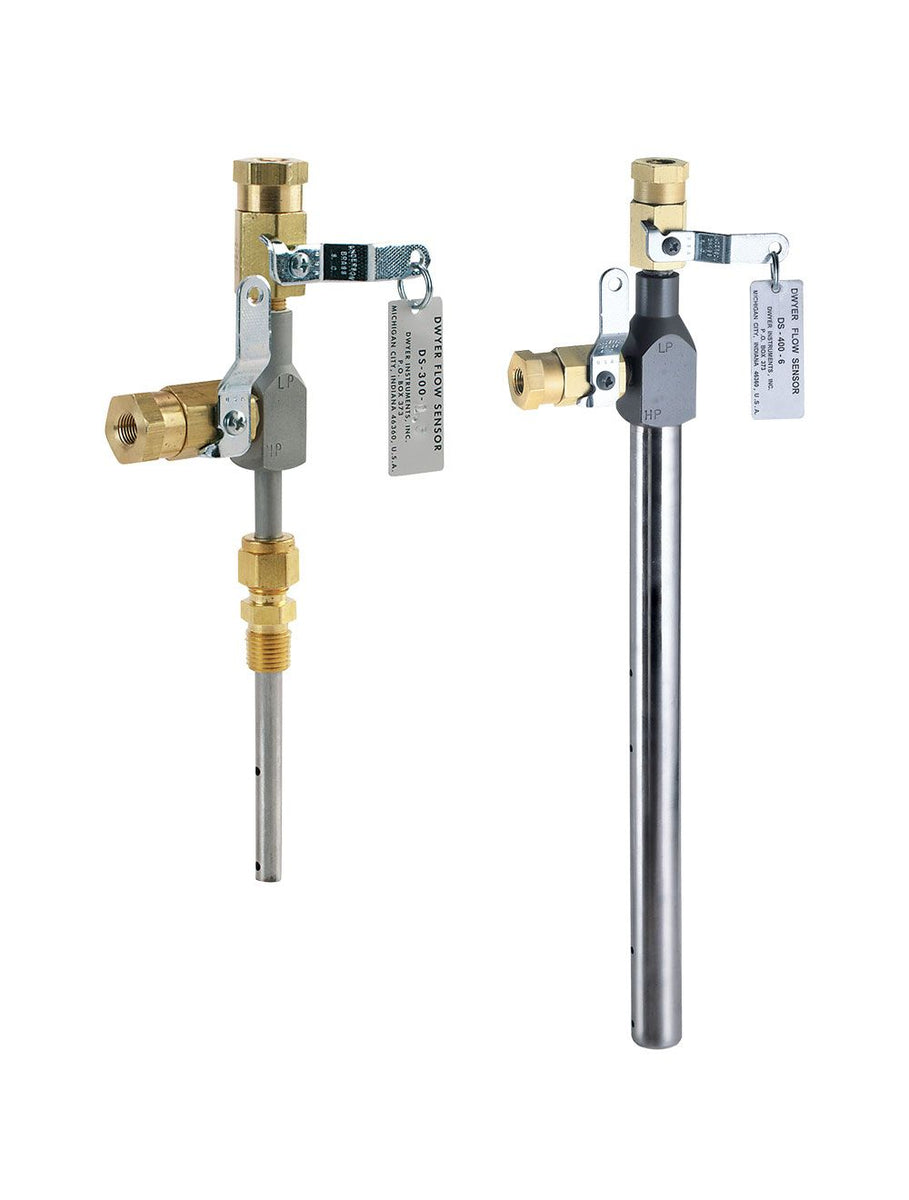

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DS-400-16

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments DS-400-16 Documents

DS-300 DS-400 Series DS Catalog Page More Info

Overview

Details for DS-400-16

DS-400-16 Averaging Flow Sensor: Accurate and Reliable Flow Measurement Dwyer Instruments' DS-400-16 Averaging Flow Sensor provides precise and dependable flow rate measurement for industrial applications. It features a unique averaging design that eliminates the effects of turbulence, resulting in stable and accurate readings, even in challenging flow conditions. Key Features: * Sensor type: Averaging flow sensor * Size: 16" * Durable construction for long-lasting performance * Advanced flow sensing technology for accuracy and reliability * Wide measurement range to accommodate varying flow rates * Easy installation and maintenance Benefits: * Monitor flow rates with confidence in harsh industrial environments * Reduce the impact of flow disturbances for accurate measurements * Minimize downtime with reliable and durable construction * Enhance process efficiency with precise flow data Applications: * HVAC systems * Industrial ventilation * Air handling units * Process control * Chemical manufacturing Our HVAC supply store offers competitive pricing and fast shipping for the DS-400-16. Optimize your flow measurement accuracy and efficiency with this exceptional product.

Series DS In-Line Flow Sensors

Use with the Dwyer® Differential Pressure Gages or Transmitters

The Series DS In-Line Flow Sensors are two Series of averaging Pitot tubes for compatible gases and liquids that provide accurate and convenient flow rate sensing, for schedule 40 pipe, when purchased with suitable differential pressure gage with appropriate range.

The Series DS-300 Averaging Flow Sensors are designed to be inserted in the pipeline through a compression fitting and available for pipe sizes from 1 to 10" (2.5 to 25.4 cm). Accessories include adapters with 1/4" SAE 45° flared ends compatible with hoses supplied with the Model A-471 Portable Capsuhelic® Gage Kit.

The Series DS-400 Averaging Flow Sensors are designed for insertion lengths up to 24" (61 cm) and include a pair of 1/8" NPT x 1/4" SAE 45° flared adapters which are compatible with hoses used in the Model A-471 Portable Capsuhelic® Gage Kit. The supplied solid brass mounting adapter has a 3/4" dia. compression fitting to lock in required insertion length and a 3/4" male NPT thread for mounting in a threaded branch connection (not included).

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Remediation
Natural, flare, flue, stack gas
Boiler feedwater
Cooling water
Superheated, saturated, or geothermal steam
Combustion or compressed air
Oil flow monitoring

Multiple sensing point measurement and built-in averaging capability eliminatesthe need for “traversing” the flowing stream with single point velocity pressuremeasurement saving time
Extremely reliable, proven technology, Pitot tubes, have been used in flowmeasurement for years
All models include convenient and quick-acting quarter-turn ball valves to isolate thesensor for zeroing with 1/8" female NPT valve assembly process connections.
Furnished with instrument shut-off valves on both pressure connections with 1/8"female NPT connections rated at 200 psig (13.7 bar) and 200°F (93.3°C)
Where valves are not required, they can be omitted at reduced cost
The Series DS-400 Averaging Flow Sensors are quality constructed from extrastrong 3/4" dia. stainless steel to resist increased forces encountered at higher flowrates with both air and water
Economical flow indication when used with appropriate differential pressure gage
Rugged construction yields, non-clogging, stable design
