DPMA-401 | LCD Digital panel meter | loop powered 4 to 20 mA | amber segments. | Dwyer Instruments

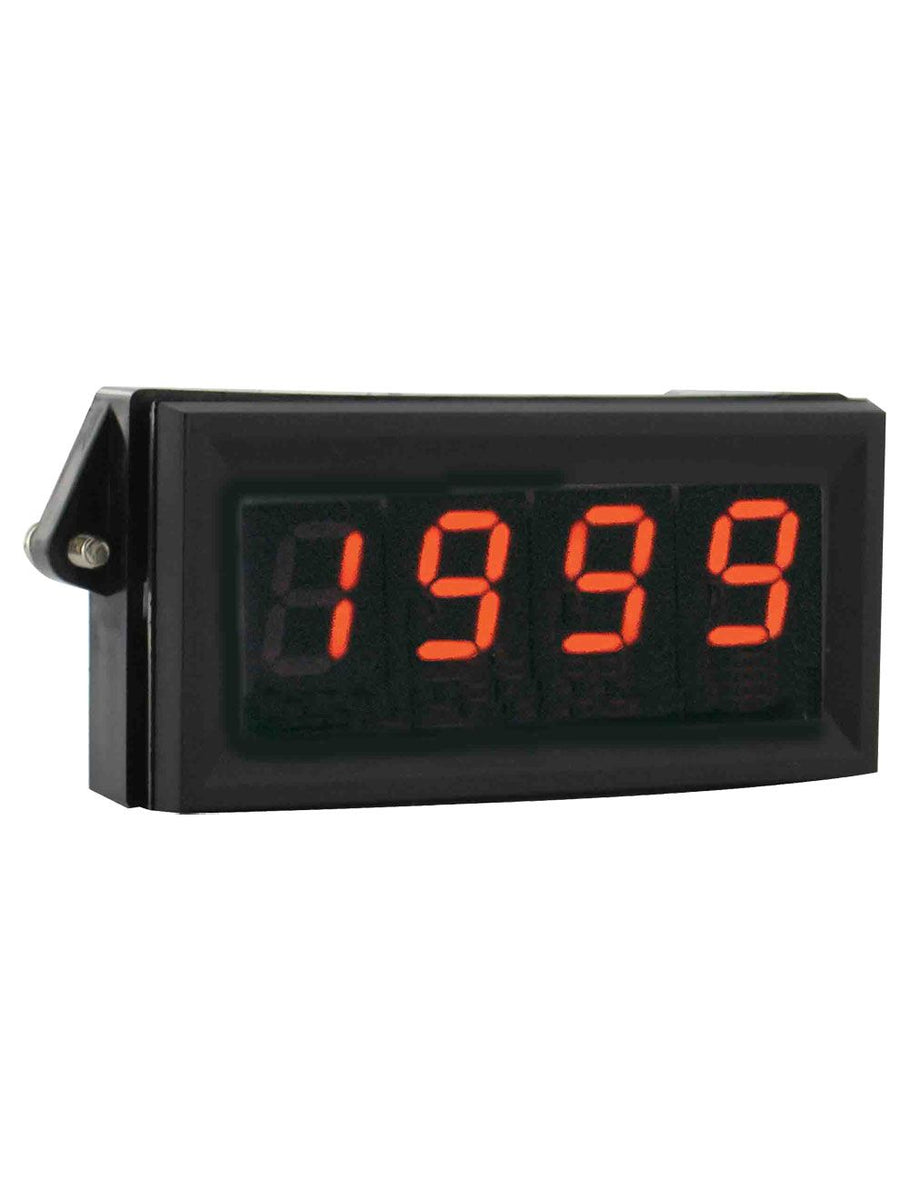

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DPMA-401

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments DPMA-401 Documents

DPMA-5 DPMA-4 Series DPMA Catalog Page More Info

Overview

Details for DPMA-401

Dwyer Instruments DPMA-401 Digital Panel Meter The Dwyer Instruments DPMA-401 Digital Panel Meter is a versatile and reliable measuring device designed for industrial applications. It features a bright and easy-to-read LED display that clearly indicates measurements. The meter provides high accuracy and precision, making it ideal for monitoring and controlling various parameters. Key Features: Multi-function: Measures voltage, current, temperature, and other critical parameters Analog and digital display: Provides both analog and digital readouts for quick and accurate data interpretation Isolated inputs: Ensures safety and reliability in applications with multiple electrical systems Compact design: Fits seamlessly into standard panels for easy installation Rugged construction: Built to withstand harsh industrial environments This panel meter is widely used in industries such as manufacturing, HVAC, and automotive. It helps monitor and control critical parameters like temperature, voltage, current, and flow rate, ensuring optimal performance of machinery and equipment. Choose the Dwyer Instruments DPMA-401 Digital Panel Meter for exceptional accuracy, reliability, and ease of use. Upgrade your industrial monitoring system today! Shop our HVAC supply store for unbeatable prices and fast shipping on all your industrial needs!

SERIES DPMA LCD DIGITAL PROCESS METER

1/8 DIN, Loop Powered, Large 3-1/2 Digit Display

The Series DPMA Adjustable LCD Digital Panel Meter offers a 3-1/2 digit, high contrast display for easy viewing in a standard 1/8 DIN package. This series can accept 4 to 20 mA, 0 to 5 VDC, or 0 to 10 VDC inputs with a wide bipolar span and zero adjustment. A 24 VDC power supply is required to illuminate the colored segments.

Product Applications

Display process values from pressure, humidity, temperature, voltage,current, watt, or power factor transmitters.

1/8 DIN panel size
3-1/2 digit display with 1" (25 mm) segments
Colored segments available in black, red, amber, green, or blue
Jumper selectable engineering units and decimal point positions

Specifications

Series: DPMA LCD DIGITAL PROCESS METER
Category/Type: Process Control
Type: Panel Meters/Indicators
Series: DPMA LCD DIGITAL PROCESS METER
Input: DPMA-4XX(P): 4 to 20 mA;DPMA-5XX(P): 0 to 200 mVDC; 0 to 5VDC or 0 to 10 VDC.
Input Impedance: DPMA-4XX(P):300Ω nominal; DPMA-5XX(P): 390KΩnominal.
Accuracy: ±(0.05% FS + 1 count).
Power Supply: DPMA-4XX(P):Powered by control loop; DPMA-5XX(P): 12 VDC or 24 VDC.
Backlight Power Supply: 24 VDC @35 mA typical.
Span and Zero: Adjustable. (±1999 counts).
Display: 3-1/2 digits; 7 segments; 1" (25.4 mm) H.
Decimal Points: 3-position; user selectable.
Engineering Units: DPMA-XXX: °F;°C; %; psi; DPMA-XXXP: V; A; KW; PF.
Polarity: Automatic; "-" displayed.
Operating Temperature: 32 to 122°F(0 to 50°C).
Storage Temperature: -4 to 158°F(-20 to 70°C).
Mounting: Snap-in panel mount or clamp (gasket included).
Connection: Screw terminals.
Conversion Rate: 3 per second.
Warm-Up: 10 minutes typical.
Weight: 4 oz (113.4 g).
Agency Approvals: RoHS.
