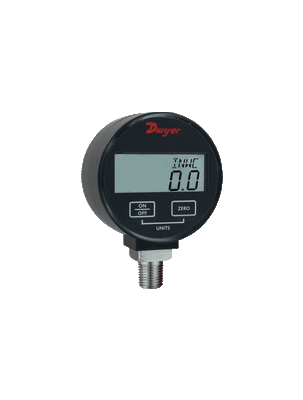

DPGW-09 | Digital pressure gage | range 0 to 200 psi | selectable engineering units: 200.0 psig | 14.06 kg/cm² | 13.79 bar | 407.2" Hg | 461.3 ft w.c. | 1379 kPa | 3200 oz/in² | 0.1 psi resolution. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DPGW-09

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments DPGW-09 Documents

Instruction Manual Series DPGA & DPGW Catalog Page More Info

Overview

Details for DPGW-09

The Dwyer Instruments DPGW-09 is a 1/4" bottom-mount digital pressure gauge that measures pressure from 0 to 200 psi. The gauge features a large, easy-to-read LCD display and a 1/4" NPT male process connection. The DPGW-09 is powered by a 9-volt battery and has a battery life of approximately 1,000 hours. The Dwyer Instruments DPGW-09 is ideal for use in a variety of applications, including: * Measuring pressure in pipelines and tanks * Troubleshooting pressure systems * Calibrating other pressure gauges * Monitoring pressure in hydraulic and pneumatic systems The Dwyer Instruments DPGW-09 is a reliable and accurate pressure gauge that is built to last. It is backed by a one-year warranty and is available at a competitive price. Our HVAC supply store offers the best prices and fast shipping on the Dwyer Instruments DPGW-09. Order yours today!

SERIES DPGA & DPGW DIGITAL PRESSURE GAGE WITH 1% ACCURACY

Economic Gage With Selectable Engineering Units, Rubber Boot

The Series DPGA is the only economic digital pressure gage with selectable engineering units on the market. With its 1% accuracy and digital push-button zero, the DPGA is the perfect choice for digitally monitoring the pressures of air and compatible gases.

The Series DPGW is the only economic digital pressure gage for liquids with the ability to select engineering units on the market. With its 1% accuracy and digital push-button zero, the DPGW is the perfect choice for digitally monitoring the pressures of air and compatible liquids and gases.

NIST CALIBRATION available in Product Configurator.

Product Applications

Process applications
Process start-up
OEM applications

Push-button zero reduces installation and service time
High accuracy provides exceptional measurement for minimizing costly out ofspecification conditions
Selectable unit button provides reading in easily recognizable units
Well-suited gage for compatible gas (DPGA) or liquid (DPGW) applications specifyingsimple operation and accuracy

Specifications

Series: DPGA & DPGW DIGITAL PRESSURE GAGE WITH 1% ACCURACY
Category/Type: Pressure
Type: Single Pressure
Series: DPGA & DPGW DIGITAL PRESSURE GAGE WITH 1% ACCURACY
Service: DPGA: air and compatible gases; DPGW: liquids and compatible gases.
Wetted Materials: DPGA: 316L SS; silicone sensor; DPGW: 316L SS.
Housing Materials: ABS plastic.
Accuracy: ±1.0% F.S. (Includes linearity; hysteresis; repeatability.)
Pressure Limits: 2X pressure range. Vacuum range max. pressure is 30 psig.
Temperature Limits: 30 to 120°F (-1 to 49°C).
Thermal Effect: 0.05% FS/°F.
Size: 2.62" OD x 1.52" deep.
Process Connection: 1/4" male NPT.
Display: 4-digit LCD (.425" H x .234" W digits).
Power Requirements: 9 V alkaline battery; included; user replaceable.
Auto Shut-Off: 20 minute auto shut-off.
Weight: 5.6 oz (160 g).
