DPGW-08 | Digital pressure gage | range 0 to 100 psi | selectable engineering units: 100.0 psig | 7.03 kg/cm² | 6.89 bar | 203.6" Hg | 230.7 ft w.c. | 689 kPa | 1600 oz/in² | 2768" w.c. | 0.1 psi resolution. | Dwyer Instruments

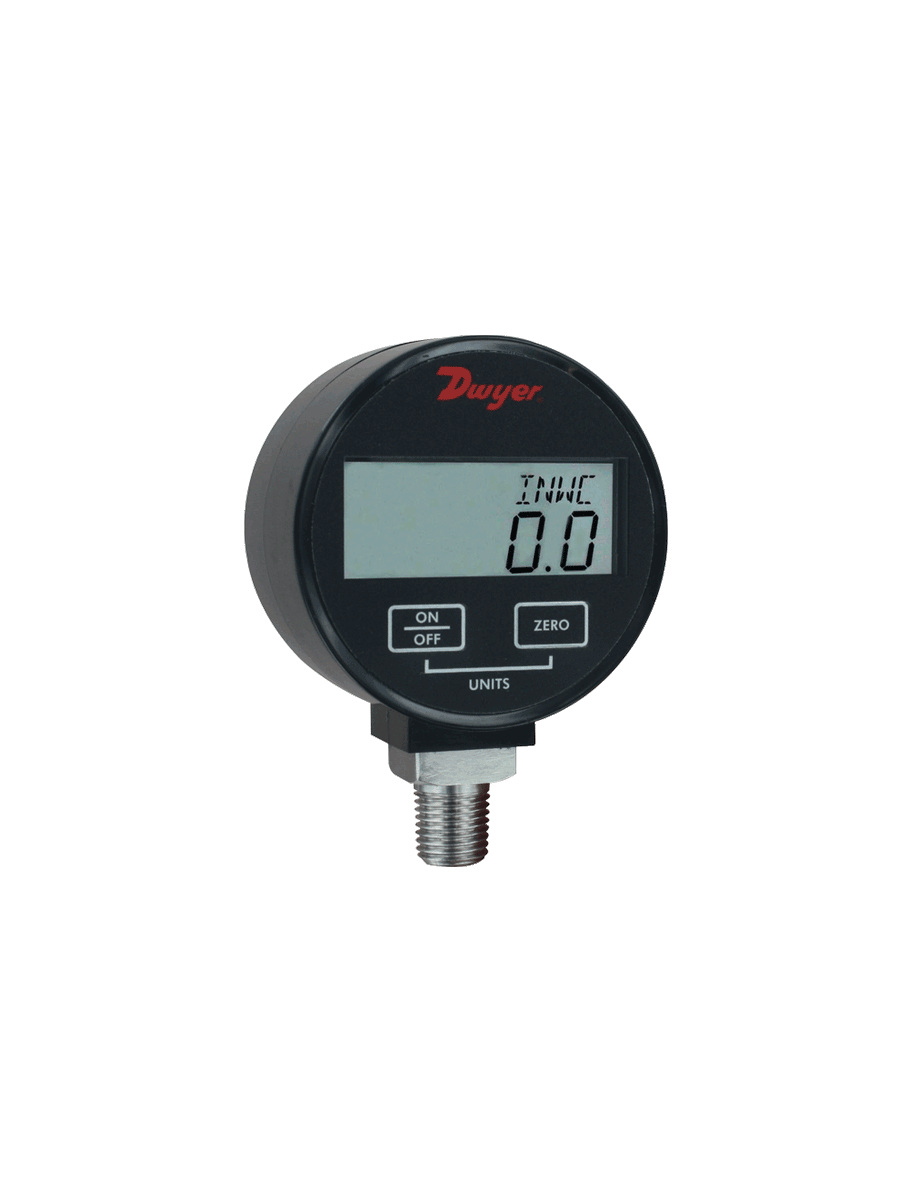

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DPGW-08
Documents and manuals
Dwyer Instruments DPGW-08 Documents
Overview
Details for DPGW-08
Dwyer Instruments DPGW-08 Pressure Gauge: Precision for Demanding Applications
The Dwyer Instruments DPGW-08 digital pressure gauge is engineered to provide accurate and reliable pressure measurements in demanding industrial environments. With a 0 to 100 psi measurement range and a high accuracy of ±0.25% full scale, the DPGW-08 ensures precise readings for critical applications. Its 1/4-inch NPT bottom mount connection allows for easy installation in various systems.
Constructed from durable materials, the DPGW-08 features a stainless steel wetted diaphragm and a rugged aluminum housing, ensuring longevity and reliability. The backlit LCD display offers clear visibility even in dim lighting conditions, while the push-button controls provide intuitive operation.
The DPGW-08 is a versatile pressure gauge suitable for a wide range of applications, including hydraulic and pneumatic systems, process control, and fluid power systems. Its compact design and versatile mounting options make it ideal for space-constrained environments.
Our HVAC supply store offers the best prices and fast shipping for your industrial products. Visit our shop today to get the Dwyer Instruments DPGW-08 digital pressure gauge for your precision measurement needs.
SERIES DPGA & DPGW DIGITAL PRESSURE GAGE WITH 1% ACCURACY
Economic Gage With Selectable Engineering Units, Rubber Boot
The Series DPGA is the only economic digital pressure gage with selectable engineering units on the market. With its 1% accuracy and digital push-button zero, the DPGA is the perfect choice for digitally monitoring the pressures of air and compatible gases.
The Series DPGW is the only economic digital pressure gage for liquids with the ability to select engineering units on the market. With its 1% accuracy and digital push-button zero, the DPGW is the perfect choice for digitally monitoring the pressures of air and compatible liquids and gases.
NIST CALIBRATION available in Product Configurator.
Product Applications
- Process applications
- Process start-up
- OEM applications
- Push-button zero reduces installation and service time
- High accuracy provides exceptional measurement for minimizing costly out ofspecification conditions
- Selectable unit button provides reading in easily recognizable units
- Well-suited gage for compatible gas (DPGA) or liquid (DPGW) applications specifyingsimple operation and accuracy
Specifications
- Series
- DPGA & DPGW DIGITAL PRESSURE GAGE WITH 1% ACCURACY
- Category/Type
- Pressure
- Type
- Single Pressure
- Series
- DPGA & DPGW DIGITAL PRESSURE GAGE WITH 1% ACCURACY
- Service
- DPGA: air and compatible gases; DPGW: liquids and compatible gases.
- Wetted Materials
- DPGA: 316L SS; silicone sensor; DPGW: 316L SS.
- Housing Materials
- ABS plastic.
- Accuracy
- ±1.0% F.S. (Includes linearity; hysteresis; repeatability.)
- Pressure Limits
- 2X pressure range. Vacuum range max. pressure is 30 psig.
- Temperature Limits
- 30 to 120°F (-1 to 49°C).
- Thermal Effect
- 0.05% FS/°F.
- Size
- 2.62" OD x 1.52" deep.
- Process Connection
- 1/4" male NPT.
- Display
- 4-digit LCD (.425" H x .234" W digits).
- Power Requirements
- 9 V alkaline battery; included; user replaceable.
- Auto Shut-Off
- 20 minute auto shut-off.
- Weight
- 5.6 oz (160 g).
