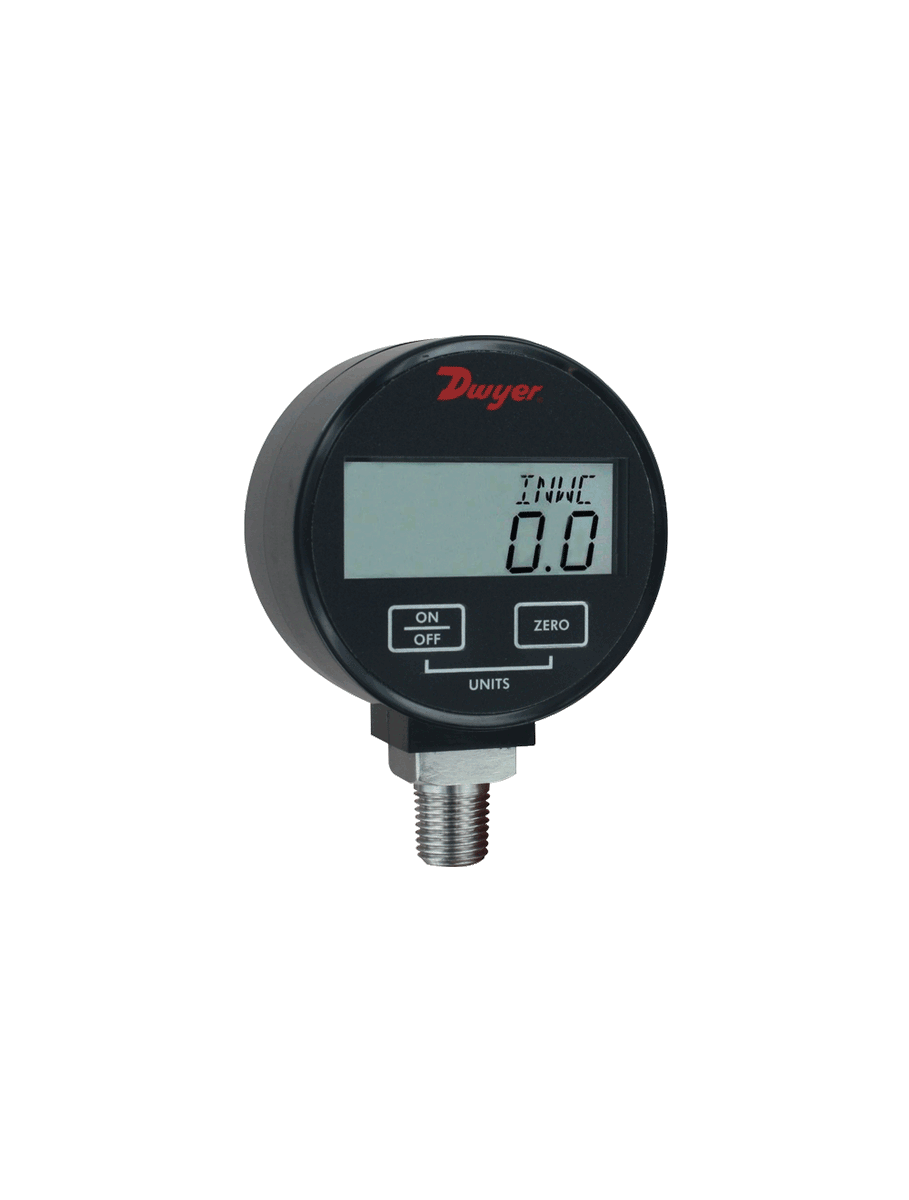

DPGA-08 | Digital pressure gage | range 0 to 100 psi | selectable engineering units: 100.0 psig | 7.03 kg/cm² | 6.89 bar | 203.6" Hg | 230.7 ft w.c. | 689 kPa | 1600 oz/in² | 2768" w.c. | 0.1 psi resolution. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DPGA-08

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments DPGA-08 Documents

Instruction Manual Series DPGA & DPGW Catalog Page More Info

Overview

Details for DPGA-08

Dwyer Instruments DPGA-08 Digital Pressure Gauge: Precision Pressure Measurement for Industrial ApplicationsThe Dwyer Instruments DPGA-08 digital pressure gauge is an advanced measuring device designed for accurate pressure measurement across a wide range of industrial applications. Its digital display provides precise readings with a resolution of 0.1%. Versatile Performance: Measuring pressures up to 100 psi, this gauge is perfect for various compressed air and industrial gas applications. Its dual display feature allows simultaneous monitoring of pressure and peak pressure, making it ideal for both static and dynamic pressure measurements. Robust Construction: Engineered with a durable stainless steel housing, the DPGA-08 is built to withstand the harsh conditions of industrial environments. Its compact and lightweight design ensures easy portability and installation in different locations. User-Friendly Interface: Equipped with an intuitive keypad, this gauge offers convenient operation and allows users to easily configure measurement units, set alarms, and view historical data. Its automatic power-off function conserves battery life, extending its operating time. Applications: The DPGA-08 digital pressure gauge is widely used in various industrial settings, including power plants, manufacturing facilities, water treatment plants, and HVAC systems. Its versatility makes it suitable for measuring pressure in pipelines, tanks, compressors, and other pressure-critical applications. Shop our HVAC supply store for the Best Prices and Fast Shipping!

SERIES DPGA & DPGW DIGITAL PRESSURE GAGE WITH 1% ACCURACY

Economic Gage With Selectable Engineering Units, Rubber Boot

The Series DPGA is the only economic digital pressure gage with selectable engineering units on the market. With its 1% accuracy and digital push-button zero, the DPGA is the perfect choice for digitally monitoring the pressures of air and compatible gases.

The Series DPGW is the only economic digital pressure gage for liquids with the ability to select engineering units on the market. With its 1% accuracy and digital push-button zero, the DPGW is the perfect choice for digitally monitoring the pressures of air and compatible liquids and gases.

NIST CALIBRATION available in Product Configurator.

Product Applications

Process applications
Process start-up
OEM applications

Push-button zero reduces installation and service time
High accuracy provides exceptional measurement for minimizing costly out ofspecification conditions
Selectable unit button provides reading in easily recognizable units
Well-suited gage for compatible gas (DPGA) or liquid (DPGW) applications specifyingsimple operation and accuracy

Specifications

Series: DPGA & DPGW DIGITAL PRESSURE GAGE WITH 1% ACCURACY
Category/Type: Pressure
Type: Single Pressure
Series: DPGA & DPGW DIGITAL PRESSURE GAGE WITH 1% ACCURACY
Service: DPGA: air and compatible gases; DPGW: liquids and compatible gases.
Wetted Materials: DPGA: 316L SS; silicone sensor; DPGW: 316L SS.
Housing Materials: ABS plastic.
Accuracy: ±1.0% F.S. (Includes linearity; hysteresis; repeatability.)
Pressure Limits: 2X pressure range. Vacuum range max. pressure is 30 psig.
Temperature Limits: 30 to 120°F (-1 to 49°C).
Thermal Effect: 0.05% FS/°F.
Size: 2.62" OD x 1.52" deep.
Process Connection: 1/4" male NPT.
Display: 4-digit LCD (.425" H x .234" W digits).
Power Requirements: 9 V alkaline battery; included; user replaceable.
Auto Shut-Off: 20 minute auto shut-off.
Weight: 5.6 oz (160 g).
