DPG-107 | Digital pressure gage | selectable engineering units: 300.0 psi | 21.09 kg/cm² | 20.69 bar | 610.8" Hg | 692.1 ft w.c. | 2069 kPa | 4800 oz/in² | 8304" w.c. | not CE and FM approved. | Dwyer Instruments

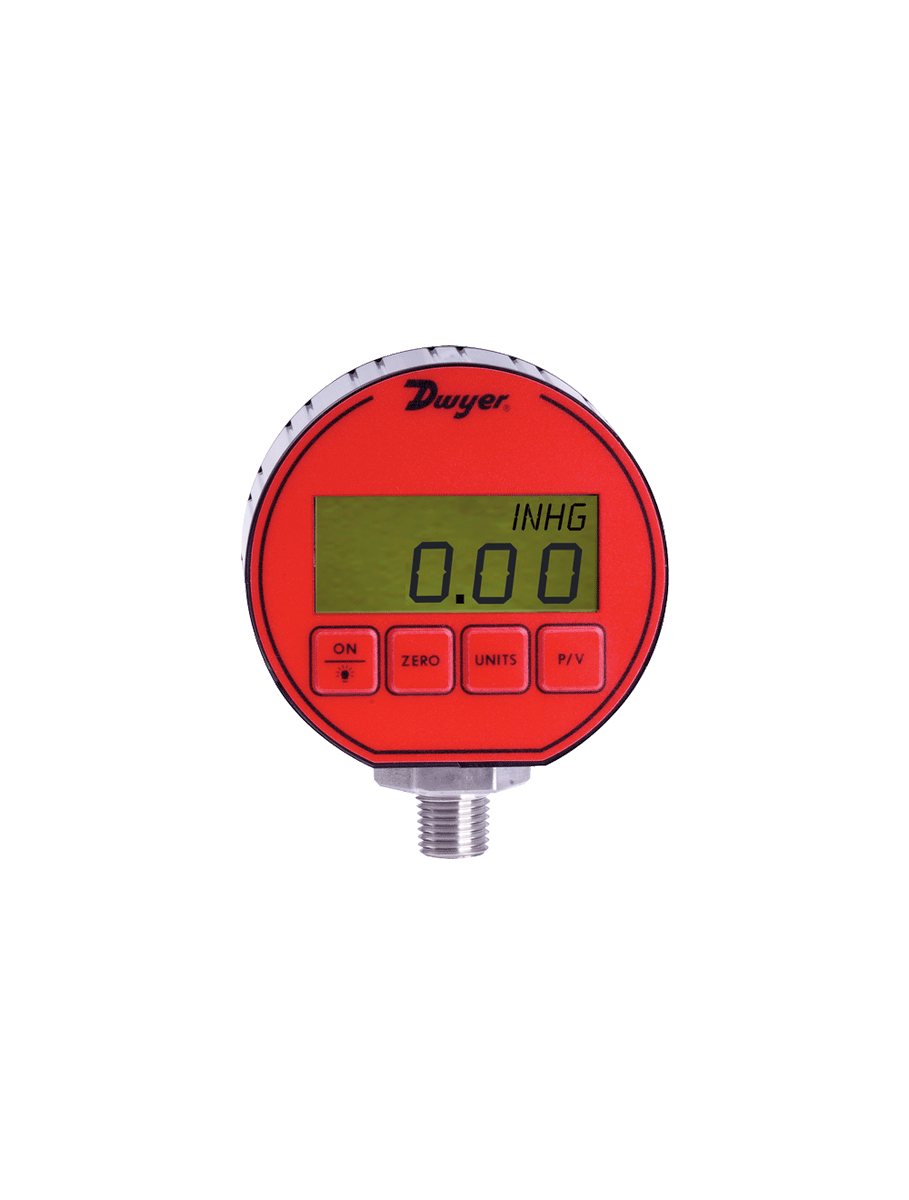

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DPG-107

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments DPG-107 Documents

Instruction Manual - DPG-100 Instruction Manual - DPG-000 Series DPG Catalog Page More Info

Overview

Details for DPG-107

Dwyer Instruments' DPG-107 1/4" 0/300# NEMA4 DigPressGage is an exceptional pressure gauge designed for demanding industrial applications. This NEMA4-rated gauge features a corrosion-resistant stainless steel case, ensuring durability even in harsh environments. The large, easy-to-read digital display provides precise pressure measurements, while the 1/4" NPT connection ensures compatibility with various pressure systems. Its high accuracy of Â±0.5% FS ensures reliable readings. The DPG-107 is ideal for measuring pressure in a variety of industrial settings, including hydraulic systems, compressors, and pumps. Our HVAC supply store offers the best prices and fast shipping on this high-quality Dwyer Instruments pressure gauge. Order now to enhance your pressure monitoring capabilities!

SERIES DPG DIGITAL PRESSURE GAGE

±0.25% or ±0.5% F.S. Accuracy, NEMA 4X (IP66) Aluminum Housing

Replace your outdated analog gages with the new Series DPG Digital Pressure Gage. The Series DPG has a high ±0.25% or ±0.5% full-scale accuracy. The 4 digit digital display will reduce the potential for errors in readings by eliminating parallax error commonly produced with analog gages. Series DPG is battery powered and has an auto-shut off to conserve battery life. Battery life, on average, will last 2000 hours. A 4 button key pad allows easy access to features without the need to work through complex menus or difficult key combinations. These features include backlight, peak and valley, tare or auto zero and conversion of the pressure units.

NIST CALIBRATION available in Product Configurator.

Product Applications

Process applications
Replacement for legacy analog gages
OEM applications

High accuracy provides exceptional measurement minimizing costly out ofspecification conditions
Backlit 4-digit display provides clear parallax-free reading reducing potential forerrors
Battery-powered gage with auto-shutoff eliminates wiring and prolongs battery lifereducing service calls
Push-button zero reduce installation and service time

Specifications

Series: DPG DIGITAL PRESSURE GAGE
Category/Type: Pressure
Type: Single Pressure
Series: DPG DIGITAL PRESSURE GAGE
Service: Compatible liquids and combustible gases (for FM listing see Agency Approvals below).
Wetted Materials: Type 316L SS.
Housing Materials: Polycarbonate front and back cover; anodized aluminum extruded housing with recessed grooves; polycarbonate overlay; Buna-N O-rings; 316L SS sensor construction.
Accuracy: DPG-000: 0.5% FS; DPG-100: ±0.25% FS; ±1 least significant digit @ 70°F (21°C) (includes linearity; hysteresis; repeatability).
Pressure Limit: 2x pressure range for models ≤1000 psi; 5000 psi for 3000 psi range; 7500 psi for 5000 psi range.
Enclosure Rating: Designed to meet NEMA 4/4X (IP66).
Temperature Limits: 0 to 130°F (-18 to 55°C).
Thermal Effect: Between 70 to 130°F is 0.016%/F. Between 32 to 70°F is 0.026%/F. Between 10 to 32°F is 0.09%/F. Between 0 to 10°F is 0.50%/F.
Size: 3.00" OD x 1.90" deep (max).
Process Connection: 1/4" male NPT.
Weight: 8.84 oz (275 g).
Display: 4 digit (.425" H x .234" W digits).
Power Requirements: (2) AAA alkaline batteries; included; user replaceable.
Battery Life: 2000 hours typical; Low battery indicator. (60 hours in continuous use).
Auto Shut-Off: Gage: 60 minute auto shut-off. Auto shut-off may be disengaged. Backlight: 2 minute auto shut-off.
Agency Approvals: DPG-000: CE; DPG-100: CE; FM approved to be intrinsically safe for Class I; Division 1; Groups A; B; C and D; for ranges 0-5 to 0-3000 psi.
