DPG-103 | Digital pressure gage | selectable engineering units: 30.00 psi | 2.109 kg/cm² | 2.069 bar | 61.08" Hg | 69.21 ft w.c. | 206.9 kPa | 480 oz/in² | 830.4" w.c. | 2069 mbar | 2109 cm w.c. | 1551 mm Hg | CE and FM approved. | Dwyer Instruments

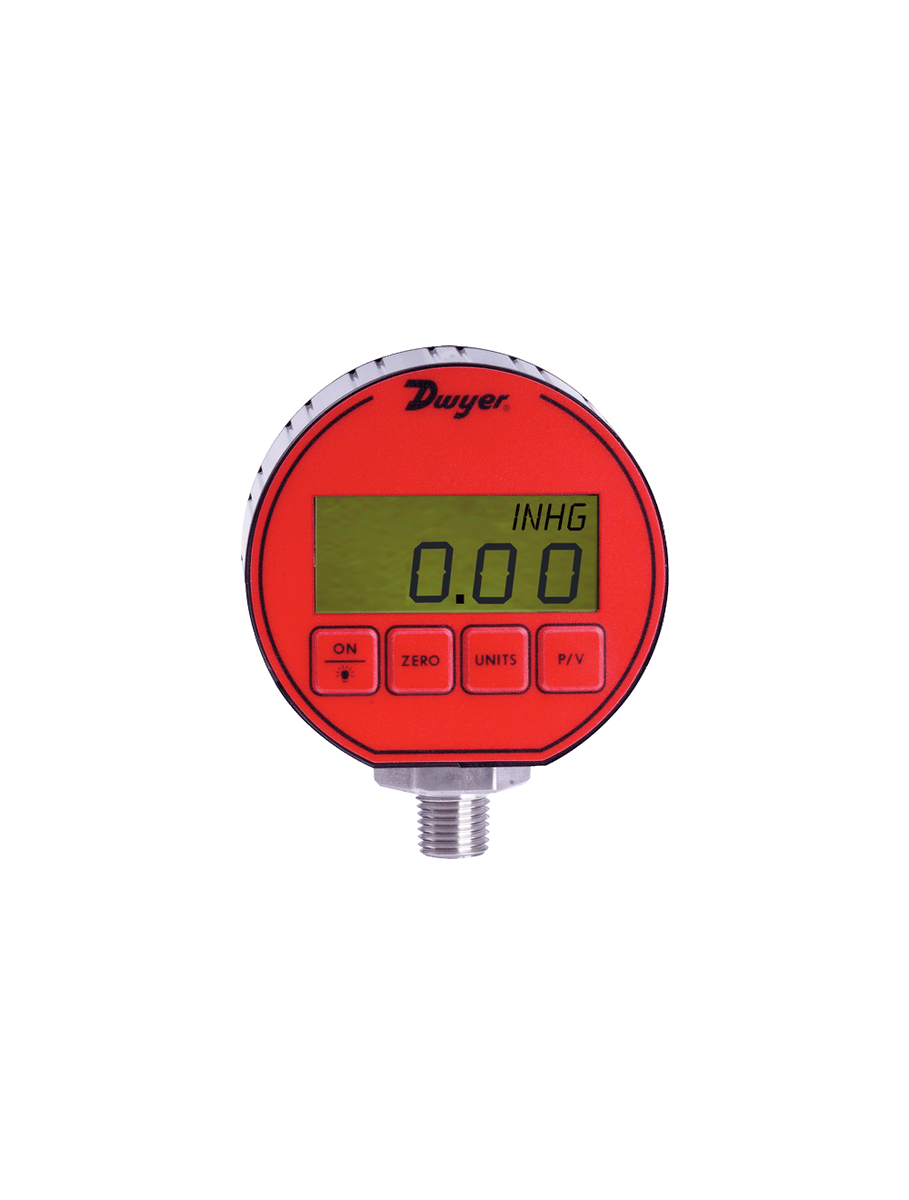

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DPG-103

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments DPG-103 Documents

Instruction Manual - DPG-100 Instruction Manual - DPG-000 Series DPG Catalog Page More Info

Overview

Details for DPG-103

The Dwyer Instruments DPG-103 is a 30# NEMA4X Digital Press Gage designed for industrial applications requiring precise pressure measurement. Its rugged construction and IP66-rated housing ensure reliable operation even in harsh environments. The DPG-103 features a large, easy-to-read digital display that provides real-time pressure readings. It offers a wide measurement range of 0 to 30 psi with an accuracy of Â±0.5% of full scale. The gage also includes a tare function for zeroing the display and a data hold function to capture and maintain readings. Additional features of the DPG-103 include: * Pressure connection: 1/4" NPT male * Display resolution: 0.1 psi * Operating temperature range: -40Â°F to 158Â°F (-40Â°C to 70Â°C) * Power supply: 9V alkaline battery (included) The DPG-103 is ideal for a variety of industrial applications, including: * Pressure monitoring in pneumatic systems * Leak detection * Filter monitoring * Hydraulic system testing Our HVAC supply store offers the best prices and fast shipping on the Dwyer Instruments DPG-103 Digital Press Gage. Contact us today to learn more or place your order!

SERIES DPG DIGITAL PRESSURE GAGE

±0.25% or ±0.5% F.S. Accuracy, NEMA 4X (IP66) Aluminum Housing

Replace your outdated analog gages with the new Series DPG Digital Pressure Gage. The Series DPG has a high ±0.25% or ±0.5% full-scale accuracy. The 4 digit digital display will reduce the potential for errors in readings by eliminating parallax error commonly produced with analog gages. Series DPG is battery powered and has an auto-shut off to conserve battery life. Battery life, on average, will last 2000 hours. A 4 button key pad allows easy access to features without the need to work through complex menus or difficult key combinations. These features include backlight, peak and valley, tare or auto zero and conversion of the pressure units.

NIST CALIBRATION available in Product Configurator.

Product Applications

Process applications
Replacement for legacy analog gages
OEM applications

High accuracy provides exceptional measurement minimizing costly out ofspecification conditions
Backlit 4-digit display provides clear parallax-free reading reducing potential forerrors
Battery-powered gage with auto-shutoff eliminates wiring and prolongs battery lifereducing service calls
Push-button zero reduce installation and service time

Specifications

Series: DPG DIGITAL PRESSURE GAGE
Category/Type: Pressure
Type: Single Pressure
Series: DPG DIGITAL PRESSURE GAGE
Service: Compatible liquids and combustible gases (for FM listing see Agency Approvals below).
Wetted Materials: Type 316L SS.
Housing Materials: Polycarbonate front and back cover; anodized aluminum extruded housing with recessed grooves; polycarbonate overlay; Buna-N O-rings; 316L SS sensor construction.
Accuracy: DPG-000: 0.5% FS; DPG-100: ±0.25% FS; ±1 least significant digit @ 70°F (21°C) (includes linearity; hysteresis; repeatability).
Pressure Limit: 2x pressure range for models ≤1000 psi; 5000 psi for 3000 psi range; 7500 psi for 5000 psi range.
Enclosure Rating: Designed to meet NEMA 4/4X (IP66).
Temperature Limits: 0 to 130°F (-18 to 55°C).
Thermal Effect: Between 70 to 130°F is 0.016%/F. Between 32 to 70°F is 0.026%/F. Between 10 to 32°F is 0.09%/F. Between 0 to 10°F is 0.50%/F.
Size: 3.00" OD x 1.90" deep (max).
Process Connection: 1/4" male NPT.
Weight: 8.84 oz (275 g).
Display: 4 digit (.425" H x .234" W digits).
Power Requirements: (2) AAA alkaline batteries; included; user replaceable.
Battery Life: 2000 hours typical; Low battery indicator. (60 hours in continuous use).
Auto Shut-Off: Gage: 60 minute auto shut-off. Auto shut-off may be disengaged. Backlight: 2 minute auto shut-off.
Agency Approvals: DPG-000: CE; DPG-100: CE; FM approved to be intrinsically safe for Class I; Division 1; Groups A; B; C and D; for ranges 0-5 to 0-3000 psi.
