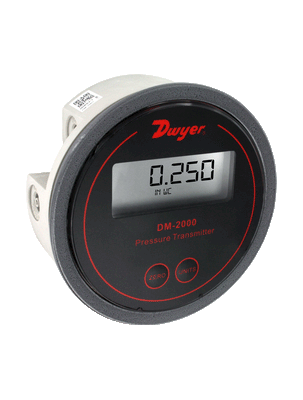

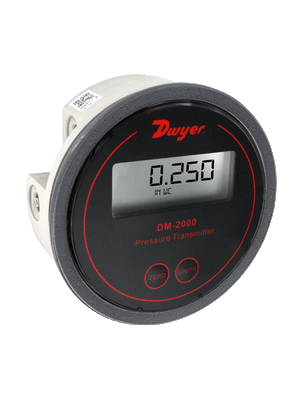

DM-2007-LCD | Differential pressure transmitter | range 5.00" w.c. | 1243 Pa | 127.0 mm w.c. | 12.43 mbar | 1.243 kPa | .180 psi | black overlay with LCD display | Dwyer Instruments (OBSOLETE)

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DM-2007-LCD

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments DM-2007-LCD Documents

Instruction Manual Series DM-2000 Catalog Page DM-2000 More Info

Overview

Details for DM-2007-LCD

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS DM-2007-LCD Differential Pressure Switch The DM-2007-LCD Differential Pressure Switch from Dwyer Instruments is a versatile and precise device designed to measure and control pressure differentials in various applications. This switch features a compact and rugged housing with an easy-to-read LCD display, providing clear and accurate readings. The DM-2007-LCD offers high accuracy and repeatability, making it suitable for demanding industrial environments. It utilizes a piezoresistive pressure sensor for reliable and stable measurements. The switch has adjustable set points and deadband, allowing for precise pressure control. Its versatile configuration options enable the DM-2007-LCD to be used in both high and low-pressure applications. The switch can handle pressures up to 50 psi and features a built-in surge protector for added protection. The DM-2007-LCD is ideal for monitoring and controlling pressure differentials in systems such as HVAC, industrial automation, and fluid handling. It provides reliable and accurate pressure measurement, ensuring efficient operation and safety. Invest in the DM-2007-LCD Differential Pressure Switch from our HVAC supply store today! Our competitive pricing and fast shipping ensure that you receive the best value and timely delivery.

Series DM-2000 Differential Pressure Transmitter

Quick Response, Easy Calibration Checks

The Dwyer Series DM-2000 Differential Pressure Transmitter senses the pressure of air and compatible gases and sends a standard 4-20 mA output signal. The DM-2000 housing is specifically designed to mount in the same diameter cutout as a standard Magnehelic® gage. A wide range of models are available factory calibrated to specific ranges.

Pressure connections are inherent to the glass filled plastic molded housing making installation quick and easy. Digital push-button zero and span simplify calibration over typical turn-potentiometers. An optional 3.5 digit LCD shows process and engineering units. A single push button allows field selection of 4 to 6 engineering units depending on range.

LIMITED QUANTITIES AVAILABLE.

Product Applications

Filter monitoring
Fan pressure indication
Static pressures in ducts or buildings
Bi-direction ranges ideal for sensing fluctuating building pressure

Zero and span controls provide easy calibration checks and shorter installationtime to get device running and monitoring
Quick response to pressure changes means no delay in signaling and alerting tocritical situations
Easy to read LCD display provides immediate local alerts allowing corrective actionto be taken quicker to eliminate the problem from becoming widespread
Same size as Magnehelic simplifies field upgrade to digital pressure gage byreducing install steps
Tamper proof button configuration to prevent accidental changes to the settings

Specifications

Series: DM-2000 Differential Pressure Transmitter
Category/Type: Pressure
Type: Differential Pressure
Series: DM-2000 Differential Pressure Transmitter
Service: Air and non-combustible; compatible gases.
Wetted Materials: Consult Factory.
Accuracy: ±1% FS; ±30 Pa model ±4% FS at 70°F.
Stability: ±1% FS/yr.
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Pressure Limits: 10 psig (0.69 bar).
Thermal Effect: ±0.055% FS/°F (0.099% FS/°C); ±30 Pa model ±0.13% FS/°F (0.234% FS/°C).
Power Requirements: 10 to 35 VDC (2 wire).
Output Signal: 4 to 20 mA.
Zero and Span Adjustments: Digital push-button zero and span.
Loop Resistance: DC: 0 to 1250 Ω maximum.
Current Consumption: DC: 38 mA maximum.
Electrical Connections: Screw-type terminal block.
Display: 3.5 digit LCD; 0.7" height.
Process Connections: 1/8" I.D. tubing.
Mounting Orientation: Vertical.
Weight: 4.8 oz (136 g).
