DLI-H | DLI-H | Dwyer Instruments

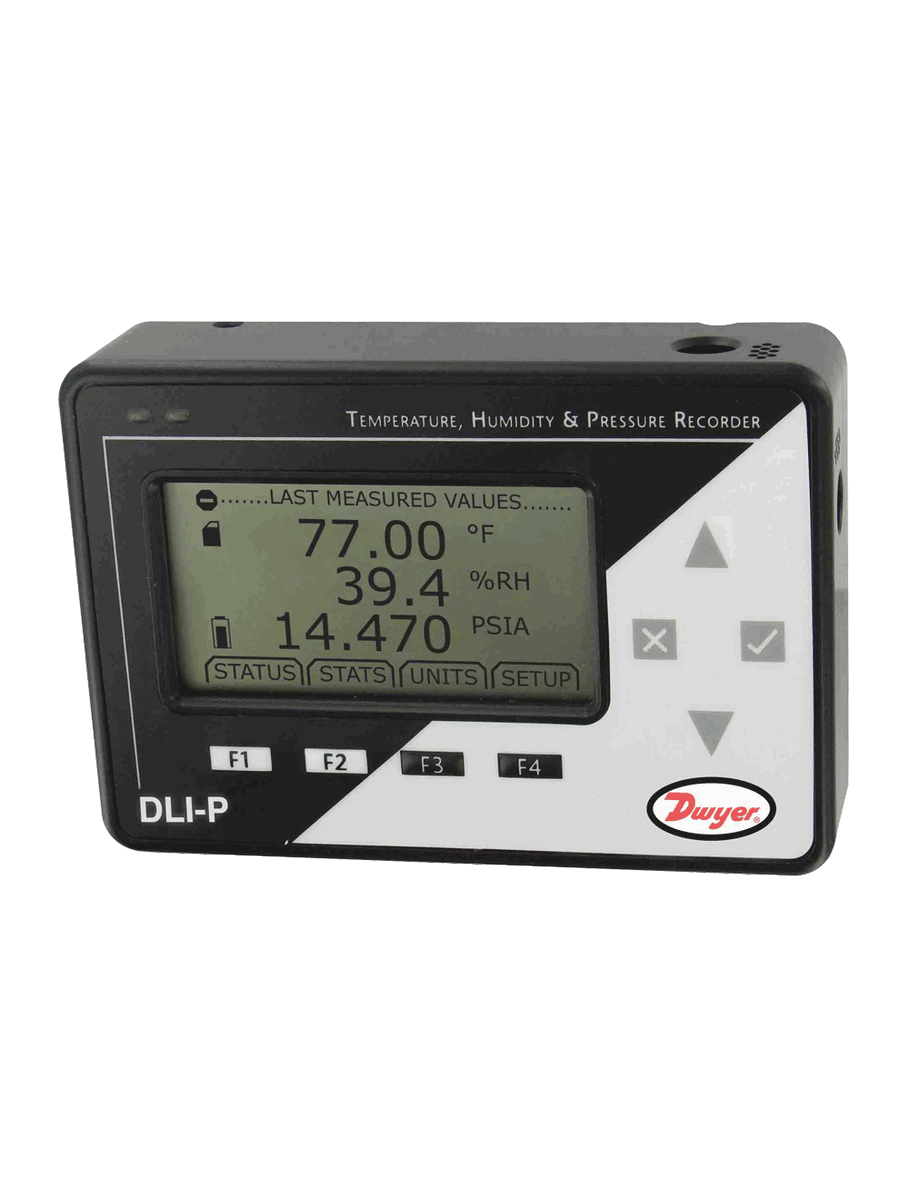

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DLI-H

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments DLI-H Documents

DLI-H DLI-P DLI-R DLI-T Software Manual Series DLI Catalog Page More Info

Overview

Details for DLI-H

The Dwyer Instruments DLI-H is a state-of-the-art data logger designed to monitor temperature and humidity levels with precision and accuracy. Its compact size and rugged construction make it ideal for use in harsh industrial environments and maintenance applications. Key Features: * Real-time monitoring of temperature and humidity data * Easy-to-read LCD display for quick data analysis * Internal memory capable of storing up to 16,000 data points * User-programmable sampling rate for customized monitoring intervals * Durable housing for protection against harsh conditions Benefits: * Prevent equipment failure and downtime by detecting environmental changes that can impact performance * Optimize energy consumption by monitoring temperature and humidity levels in HVAC systems * Ensure product quality by maintaining optimal storage conditions * Comply with industry regulations and standards related to environmental monitoring Applications: * Industrial manufacturing facilities * Warehouses and storage areas * Data centers and server rooms * HVAC system monitoring * Process control and automation Shop our HVAC supply store today for the best prices and fast shipping on the Dwyer Instruments DLI-H data logger. Ensure the reliability and efficiency of your industrial operations with our commitment to quality and customer satisfaction.

Series DLI LCD Data Logger

Front Keypad, Wall Mountable, Remote Readings

The Series DLI LCD Data Logger gives instant remote readings of temperature, humidity, or atmospheric pressure. The large, back-lit LCD and 8-button keypad provide convenient access to current data and recorder setup as well as memory and battery levels. The wall-mountable data logger can store at least 87,000 readings per channel. The easy to use DL700 software makes creating permanent records, performing data calculations, and graphing of data simple. The DLI can easily be started and stopped from a PC or delayed to start up to six months in advance. It can also stop recording at a specified time or after a certain number of readings have been taken.

Specifications

Series: DLI LCD Data Logger
freeship
Category/Type: Test Equipment
Type: Data Loggers
Series: DLI LCD Data Logger
RTD Sensor: Range: -328 to 1562°F (-200 to 850°C); Probe accuracy:±0.09°F (±0.05°C) for -328 to 500°F (-200 to 260°C); ±0.5°F (±0.3°C) for500 to 1562°F (260 to 850°C); Resolution: 0.01°F (0.01°C).
Thermocouple sensor: Internal range: -4 to 140°F (-20 to 60°C); Accuracy:±0.9°F (±0.5°C) internally and for types J; K; T; E; and N;±3°F (±2°C) for types R; S; and B; Resolution: 0.2°F (0.1°C) internallyand for types J; K; T; E; and N; 0.9°F (0.5°C) for types R; S; and B.
Temperature/Humidity Sensor: Range: -4 to 140°F (-20 to 60°C); 0 to95% RH; Accuracy: ±0.9°F (±0.5°C) for 32 to 122°F (0 to 50°C); 3% RH;Resolution: 0.2°F (0.1°C); 0.1% RH.
Temperature/Humidity/Pressure sensor: Range: -4 to 140°F(-20 to 60°C); 0 to 95% RH; 0 to 30 psia; Accuracy: ±0.9°F (±0.5°C);±3% RH; ±1.0% FSR @ 77°F (25°C); Resolution: 0.1°F (0.05°C); 0.1%RH; 0.002 psia.
Memory size: 174;762 readings (DLI-R); 131;071 readings per channel(DLI-T; DLI-H) and 87;381 readings per channel (DLI-P).
Sampling Method: Stop on memory full or continuous recording.
Sampling rate: Selectable from 2 s to 24 hrs.
Computer requirements: Windows® 95; Windows ® 98; Windows®2000; Windows ® ME; Windows NT®; and Windows ® XP operatingsystem; one free USB port.
Power requirements: 9 V lithium metal battery; installed functional;user replaceable. Optional AC adapter.
Battery Life: 1 yr with display off; 30 days with continuous displayusage (approx).
Interface: USB port (interface cable required).
Housing: Black anodized aluminum case.
Weight: 16 oz (440 g).
Agency Approvals: CE; model DLI-R not CE approved.
