DHII-007 | Differential pressure controller | Dwyer Instruments

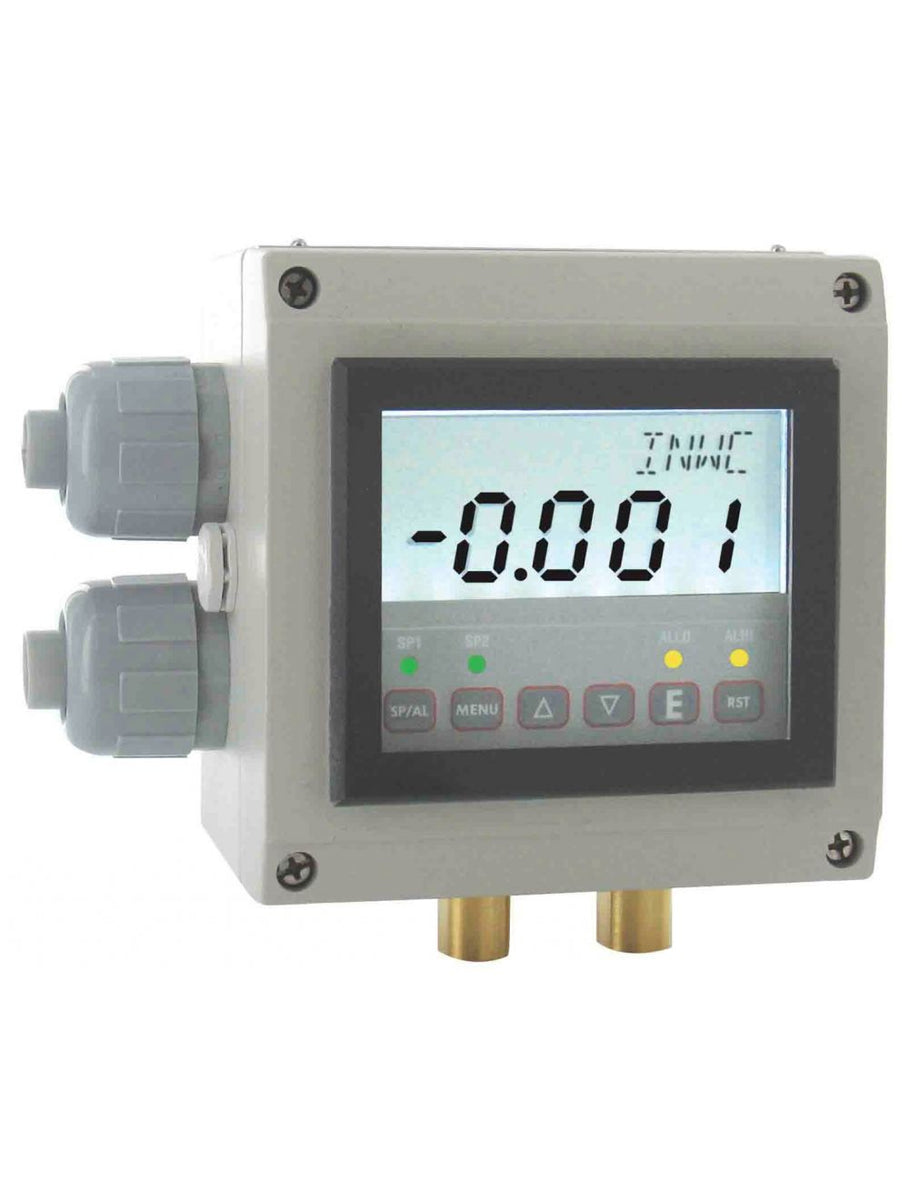

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DHII-007

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments DHII-007 Documents

Instruction Manual Digihelic® Modbus® Register List Series DHII Catalog Page More Info

Overview

Details for DHII-007

Dwyer Instruments DHII-007 0/10" Digihelic Diff # Cntrl The Dwyer Instruments DHII-007 is a highly precise and reliable differential pressure controller specifically designed for industrial applications. This advanced instrument provides precise control and measurement of differential pressure, making it an ideal choice for HVAC, plumbing, and other industrial systems. Key Features: * Accurate and stable differential pressure measurement with a range of 0-10" w.c. * Large, easy-to-read LCD display for clear and convenient monitoring * Versatile analog output for remote monitoring or control * Dual setpoints with adjustable hysteresis for precise control * Durable and compact housing for reliable performance in harsh environments Benefits: * Optimizes system efficiency by maintaining precise differential pressure settings * Improves comfort levels in HVAC systems by regulating airflow * Ensures optimal performance of plumbing systems by monitoring and controlling water pressure * Simplifies remote monitoring and control through analog output * Reduces maintenance costs with its robust construction and reliable design Applications: * HVAC systems * Plumbing systems * Industrial process control * Differential pressure measurement and control Upgrade your industrial systems with the Dwyer Instruments DHII-007 0/10" Digihelic Diff # Cntrl for precise pressure control, enhanced efficiency, and reliable performance. Order now at our HVAC supply store and enjoy the best prices and fast shipping on all your industrial products!

Series DHII Digihelic® Differential Pressure Controller

NEMA 4 (IP66) Housing with Large, Bright LCD, Square Root Output for Flow

The Series DHII Digihelic® Differential Pressure Controller takes all the features of the standard Digihelic® Pressure Controller and packages them in a robust NEMA 4 (IP66) housing.

The Digihelic® II Pressure Controller combines the 2 SPDT control relays, 4-20 mA process output and Modbus® communications with a large, brightly backlit 4 digit LCD display that can easily be seen from long distances. The electrical wiring has also been enhanced in the DHII with its detachable terminal blocks. The removable terminals allow the install to easily wire the terminal block outside the housing and then attach to the circuit board, reducing wiring difficulties and installation time on the process.

The Digihelic® II Differential Pressure Control in the NEMA 4 (IP66) enclosure enables this product to be the perfect choice when mounting pressure controls outdoors in such applications as rooftop air handlers. This housing also makes it the ideal solution for surface mounting in clean rooms or facilities where water or a cleaning solution is utilized in maintaining plant cleanliness.

NIST CALIBRATION available in Product Configurator.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Air Handlers
Clean Rooms

NEMA 4 housing enables a range of uses both outdoors or indoors where water is present
Large backlight LCD display provides local reading from a distance
Detachable terminal blocks reduce wiring difficulties saving installation time

Specifications

Series: DHII Digihelic® Differential Pressure Controller
Category/Type: Pressure
Type: Differential Pressure
Series: DHII Digihelic® Differential Pressure Controller
Service: Air and non-combustible;compatible gases.
Wetted Materials: Consult factory.
Housing Material: Aluminum; glass.
Accuracy: ±0.5% at 77°F (25°C)including hysteresis andrepeatability (after 1 hour warmup).
Stability: < ±1% per year.
Pressure Limits: Ranges ≤ 2.5 in w.c. = 2 psi; 5": 5 psi; 10": 5 psi;25": 5 psi; 50": 5 psi; 100": 9 psi.
Temperature Limits: 32 to 140°F (0 to 60°C).
Compensated Temperature Limits: 32 to 140°F (0 to 60°C).
Thermal Effects: 0.020%/°F (0.036/°C) from 77°F (25°C).
Power Requirements: High voltage power = 100 to 240VAC; 50 to 400 Hz or 132 to 240VDC; Low voltage power = 24VDC ±20%.
Power Consumption: Low voltage power = 24 VDC -130 mA max; High voltage power= 100 to 240 VAC; 132 to 240VDC - 7 VA max.
Output Signal: 4-20 mA DC into900 Ω max.
Zero & Span Adjustments: Accessible via menus.
Response Time: 250 ms (dampening set to 1).
Display: 4 digit backlit LCD 0.6"height. LED indicators for set pointand alarm status.
Electrical Connections: Euro type removable terminal blockswith watertight conduit fittings for1/2" watertight conduit.
Process Connections: 1/8" female NPT.
Enclosure Rating: Designed to meet NEMA 4 (IP66).
Mounting Orientation: Mount unit in horizontal plane.
Weight: 2 lb 10 oz (1.19 kg).
Serial Communications: Modbus® RTU; RS485; 9600 Baud.
Agency Approvals: CE; UL.
: SWITCH SPECIFICATIONS
Switch Type: 2 SPDT relays.
Electrical Rating: 8 amps at 240 VAC resistive.
Set Point Adjustment: Adjustable via keypad on face.
