DHII-006 | Differential pressure controller | selectable engineering units: 5.000" w.c. | .4167 ft w.c. | 127.0 mm w.c. | 12.70 cm w.c. | .1806 psi | .3678" Hg | 9.342 mm Hg | 12.45 mbar | 1245 Pa | 1.245 kPa | | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DHII-006

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments DHII-006 Documents

Instruction Manual Digihelic® Modbus® Register List Series DHII Catalog Page More Info

Overview

Details for DHII-006

Digihelic Differential Pressure Controller: Precise Control for Industrial ApplicationsThe DHII-006 Digihelic Differential Pressure Controller from Dwyer Instruments is a highly accurate and reliable device designed to provide precise control of differential pressure in various industrial applications. With its user-friendly interface and advanced features, the DHII-006 is an indispensable tool for engineers and maintenance professionals. Key Features: - Differential pressure range: 0-5" WC - Accuracy: Â±1% of full scale - Dual-display for easy monitoring - Simple push-button programming - Compact and rugged design for long-lasting performance - NEMA 4X enclosure for added protection in harsh environments Benefits: - Precise pressure control for optimized process efficiency - Easy setup and operation for reduced downtime - Enhanced durability for reliable operation in demanding conditions - Suitable for a wide range of applications, including HVAC, clean rooms, and laboratory environments Applications: - Maintaining differential pressure in air handling systems - Controlling pressure in clean rooms and laboratory environments - Monitoring and adjusting pressure in HVAC systems Conclusion: The Dwyer Instruments DHII-006 Digihelic Differential Pressure Controller is a superior choice for precise pressure control in industrial applications. Its advanced features, user-friendly design, and rugged construction make it an ideal tool for engineers and maintenance professionals. At our HVAC supply store, we provide competitive prices, fast shipping, and exceptional customer service. Contact us today to learn more and order the DHII-006 for your specific requirements!

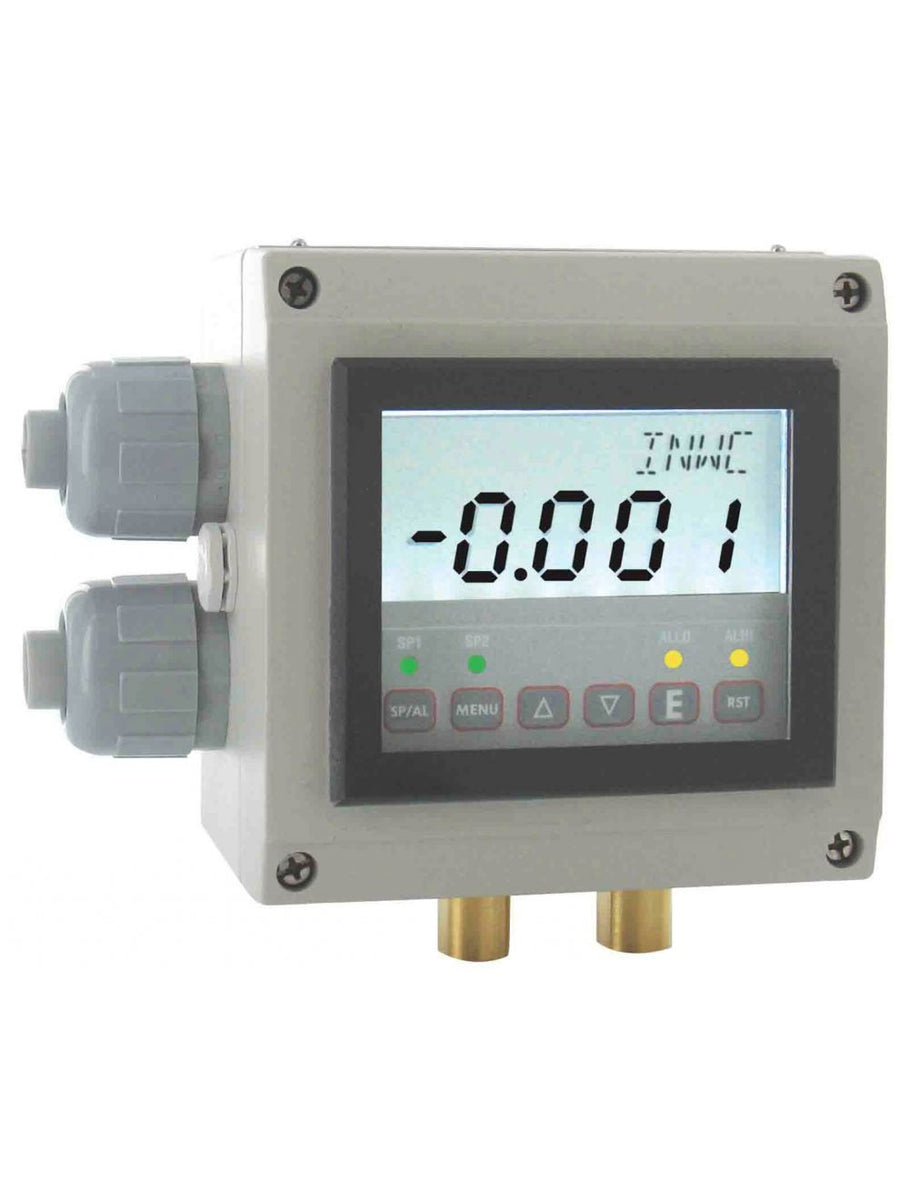

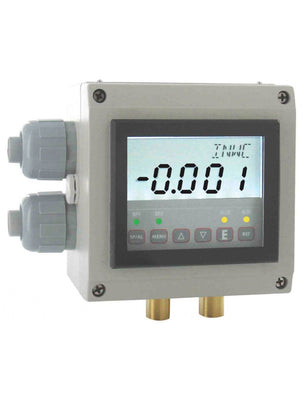

Series DHII Digihelic® Differential Pressure Controller

NEMA 4 (IP66) Housing with Large, Bright LCD, Square Root Output for Flow

The Series DHII Digihelic® Differential Pressure Controller takes all the features of the standard Digihelic® Pressure Controller and packages them in a robust NEMA 4 (IP66) housing.

The Digihelic® II Pressure Controller combines the 2 SPDT control relays, 4-20 mA process output and Modbus® communications with a large, brightly backlit 4 digit LCD display that can easily be seen from long distances. The electrical wiring has also been enhanced in the DHII with its detachable terminal blocks. The removable terminals allow the install to easily wire the terminal block outside the housing and then attach to the circuit board, reducing wiring difficulties and installation time on the process.

The Digihelic® II Differential Pressure Control in the NEMA 4 (IP66) enclosure enables this product to be the perfect choice when mounting pressure controls outdoors in such applications as rooftop air handlers. This housing also makes it the ideal solution for surface mounting in clean rooms or facilities where water or a cleaning solution is utilized in maintaining plant cleanliness.

NIST CALIBRATION available in Product Configurator.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Air Handlers
Clean Rooms

NEMA 4 housing enables a range of uses both outdoors or indoors where water is present
Large backlight LCD display provides local reading from a distance
Detachable terminal blocks reduce wiring difficulties saving installation time

Specifications

Series: DHII Digihelic® Differential Pressure Controller
Category/Type: Pressure
Type: Differential Pressure
Series: DHII Digihelic® Differential Pressure Controller
Service: Air and non-combustible;compatible gases.
Wetted Materials: Consult factory.
Housing Material: Aluminum; glass.
Accuracy: ±0.5% at 77°F (25°C)including hysteresis andrepeatability (after 1 hour warmup).
Stability: < ±1% per year.
Pressure Limits: Ranges ≤ 2.5 in w.c. = 2 psi; 5": 5 psi; 10": 5 psi;25": 5 psi; 50": 5 psi; 100": 9 psi.
Temperature Limits: 32 to 140°F (0 to 60°C).
Compensated Temperature Limits: 32 to 140°F (0 to 60°C).
Thermal Effects: 0.020%/°F (0.036/°C) from 77°F (25°C).
Power Requirements: High voltage power = 100 to 240VAC; 50 to 400 Hz or 132 to 240VDC; Low voltage power = 24VDC ±20%.
Power Consumption: Low voltage power = 24 VDC -130 mA max; High voltage power= 100 to 240 VAC; 132 to 240VDC - 7 VA max.
Output Signal: 4-20 mA DC into900 Ω max.
Zero & Span Adjustments: Accessible via menus.
Response Time: 250 ms (dampening set to 1).
Display: 4 digit backlit LCD 0.6"height. LED indicators for set pointand alarm status.
Electrical Connections: Euro type removable terminal blockswith watertight conduit fittings for1/2" watertight conduit.
Process Connections: 1/8" female NPT.
Enclosure Rating: Designed to meet NEMA 4 (IP66).
Mounting Orientation: Mount unit in horizontal plane.
Weight: 2 lb 10 oz (1.19 kg).
Serial Communications: Modbus® RTU; RS485; 9600 Baud.
Agency Approvals: CE; UL.
: SWITCH SPECIFICATIONS
Switch Type: 2 SPDT relays.
Electrical Rating: 8 amps at 240 VAC resistive.
Set Point Adjustment: Adjustable via keypad on face.
