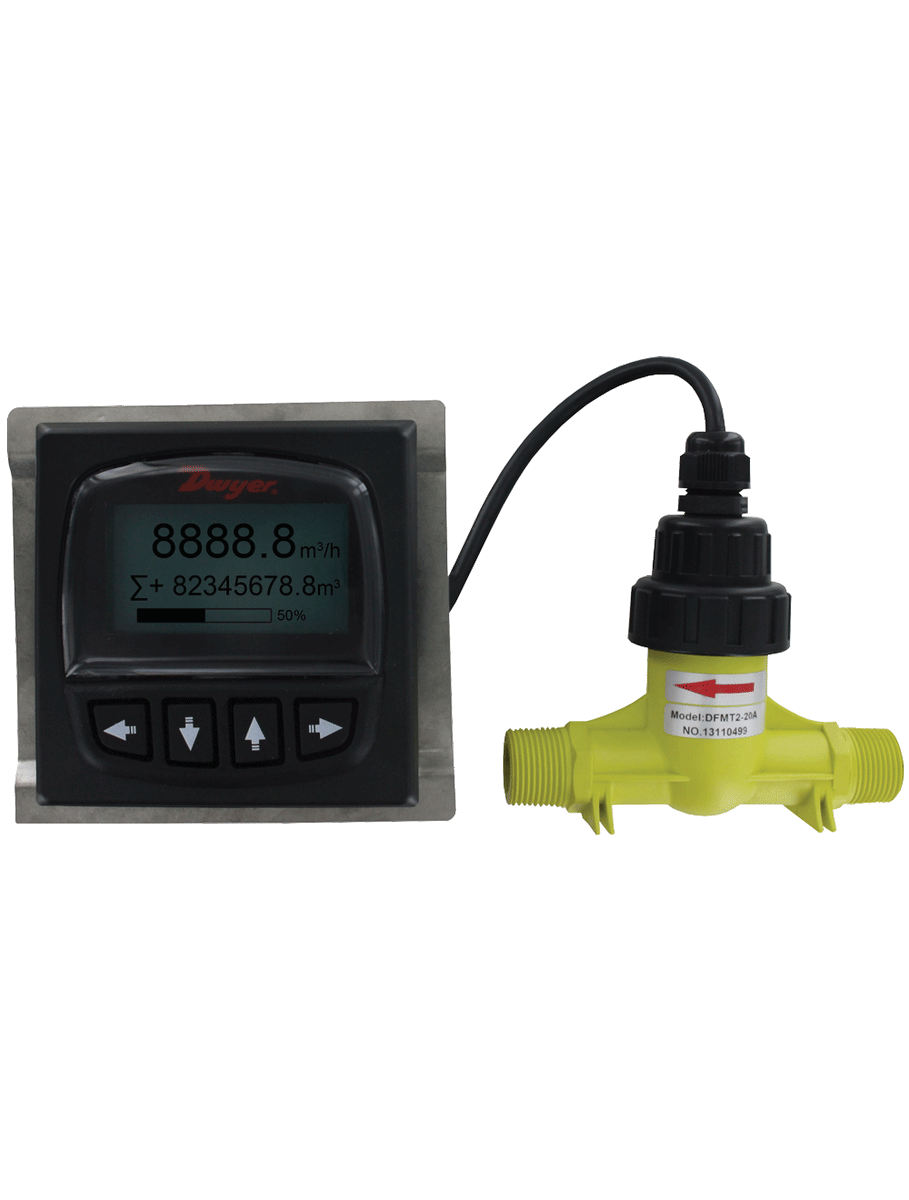

DFMT2-25A | Remote Digital Flow Transmitter | 1" NPT | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DFMT2-25A

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments DFMT2-25A Documents

Instruction Manual Series DFMT2 Catalog Page More Info

Overview

Details for DFMT2-25A

DFMT2-25A - Dwyer Instruments - Remote Digital Flow Transmitter Dwyer Instruments DFMT2-25A Remote Digital Flow Transmitter is a highly accurate and reliable device designed for measuring and transmitting flow rates of liquids and gases. With its rugged construction and advanced digital technology, this transmitter is ideal for a wide range of industrial applications. The DFMT2-25A features a durable, corrosion-resistant 316 stainless steel sensor that ensures longevity and stability in harsh environments. The built-in digital display provides clear and precise flow rate readings, while the 4-20 mA output signal allows for easy integration with remote monitoring and control systems. Key features: - 316 stainless steel sensor for corrosion resistance - Digital display for precise flow rate readings - 4-20 mA output signal for remote monitoring and control - Wide flow range from 0.025 to 2.5 GPM - Accuracy of Â±2% of reading - Compact and lightweight design The DFMT2-25A is a versatile flow transmitter suitable for various applications, including: - Water and wastewater treatment - Chemical processing - Food and beverage processing - HVAC systems - Irrigation systems Our HVAC supply store has you covered with the best prices and fast shipping on our wide range of products. Shop now and upgrade your operations with the DFMT2-25A Remote Digital Flow Transmitter.

Series DFMT2 Digital Paddlewheel Flow Transmitter

Flow and Total Indication, Easy to Read LCD Display, Remote Indication

The Series DFMT2 Remote Digital Paddlewheel Flow Transmitter is a two piecedigital flow transmitter that provides instantaneous, as well as totalizing flow monitoring.The two piece design allows the user to separate the control panel from the application,making it ideal for industrial use in reverse osmosis water purifying systems and any otherapplications where space is limited. The large backlit display makes navigating throughthe menu structure simple. The Series DFMT2 uses high accuracy, industry provenpaddlewheel technology, offers a user selectable 4 to 20 mA or pulse output, and has acorrosion resistant PVDF sensor giving it a long operation life. Users can reset the totalizerat any time and set a security password protecting the system settings from unauthorizedchanges.

Product Applications

Continuous Water Monitoring
Reverse Osmosis Systems
Remote Flow Monitoring
Cooling Towers
Chemical Proportioning or Blending
Industrial Water & Wastewater Treatment
Fluctuating Fluid Conductivity Applications

Two piece design allows the user to separate the control display from the application,making it ideal in areas where space is limited
The large backlit LCD display defines instantaneous as well as cumulative flow withvisual indication bar designating percent of max flow
Long operation life with high accuracy paddlewheel technology and corrosionresistant PVDF sensor
Totalizer is user resettable at any time ideal for single batch totalization
Security password protecting prevents any unauthorized changes

Specifications

Series: DFMT2 Digital Paddlewheel Flow Transmitter
freeship
Category/Type: Flow
Type: Flow Transmitters
Series: DFMT2 Digital Paddlewheel Flow Transmitter
Service: Compatible clean liquids.
Range: See model chart on the catalog page.
Wetted Materials: Sensor and Impeller: PVDF;Shaft: Ceramic;O-Rings: Fluoroelastomer;
Accuracy: ±1.5% FS.
Repeatability: ±0.5% FS.
Output: Analog: 4 to 20 mA (750 O max. loop resistance);Pulse: NPN square wave output;Frequency: 0 to 2 kHz (adjustable);Pulse width: 0 to 1000 ms (adjustable).
Electrical Connections: Removable screw terminal.
Temperature Limits: Process: -4 to 194°F (-20 to 90°C);Ambient: -4 to 149°F(-20 to 65°C).
Pressure Limit: 145 psi (1.0 MPa).
Power Requirements: 12 to 24 VDC.
Power Consumption: 2 W.
Display: 2.38 x 1.25" (60.33 x 31.75 mm) LCD.
Totalizing Display Maximum: 9;999;999;999.
Process Connection: See model chart on the catalog page.
Enclosure Rating: IP65.
Enclosure Material: ABS plastic.
Weight: See model chart on catalog page.
