DFMT-50A | 2" NPT Digital Flow Transmitter | range 8.8 to 180 GPM (2 to 40.9 m3/h) | Dwyer Instruments

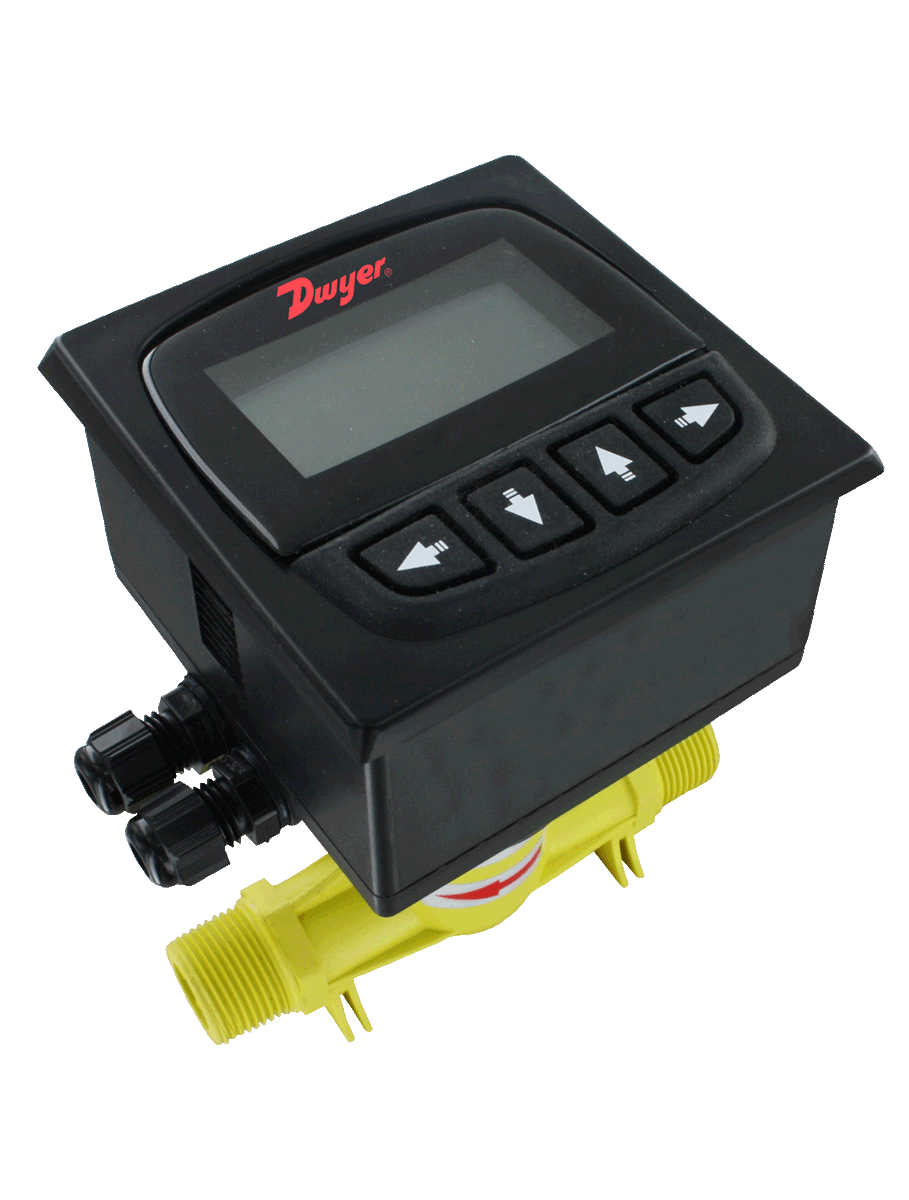

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DFMT-50A

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments DFMT-50A Documents

Instruction Manual Series DFMT Catalog Page More Info

Overview

Details for DFMT-50A

Dwyer Instruments DFMT-50A Digital Flow Transmitter The Dwyer Instruments DFMT-50A Digital Flow Transmitter is a 2" transmitter designed to measure air or non-corrosive gases accurately. Featuring a Â±2.0% accuracy, this transmitter provides reliable flow measurements for a wide range of industrial applications. The DFMT-50A boasts a dual LCD display that simultaneously shows both the flow rate and totalized flow, allowing for easy monitoring. The transmitter's wide flow measurement range of 0-50 SFPM (Standard Cubic Feet per Minute) makes it suitable for measuring low to medium flow rates. Its rugged construction ensures durability and withstands harsh industrial environments. The transmitter is also equipped with a built-in filter to protect the sensor from dust and debris. The DFMT-50A features a 4-20 mA analog output, allowing for easy integration into control systems. Applications for the DFMT-50A include HVAC systems, flow monitoring in manufacturing processes, and compressed air systems. Its versatility and accuracy make it an ideal solution for industrial flow measurement needs. Order now from our HVAC supply store for the best prices, quick shipping, and exceptional customer service!

Series DFMT Digital Paddlewheel Flow Transmitter

Flow and Total Indication, Easy to Read LCD Display, 4 to 20 mA or Pulse Output

The Series DFMT Digital Paddlewheel Flow Transmitter provides instantaneous, aswell as totalizing flow monitoring. The unit offers a user selectable 4 to 20 mA or pulse output with compact display.

Product Applications

Cooling water monitoring
Cooling towers
Chemical proportioning or blending
Industrial water & wastewater treatment
Fluctuating fluid conductivity applications
Reverse osmosis systems

The large backlit LCD display defines instantaneous as well as cumulative flow withvisual indication bar designating percent of max flow
Long operation life with high accuracy paddlewheel technology and corrosionresistant PVDF sensor
Totalizer is user resettable at any time ideal for single batch totalization
Security password protecting prevents any unauthorized changes

Specifications

Series: DFMT Digital Paddlewheel Flow Transmitter
freeship
Category/Type: Flow
Type: Flow Transmitters
Series: DFMT Digital Paddlewheel Flow Transmitter
Service: Compatible clean liquids.
Range: See model chart on catalog page.
Wetted Materials: Sensor and impeller: PVDF; Shaft: Ceramic; O-rings: Fluoroelastomer.
Accuracy: ±1.5% FS.
Repeatability: ±0.5% FS.
Output: Analog: 4 to 20 mA (750 Ω max. loop resistance);Pulse: NPN square wave output; Frequency: 0 to 2 kHz (adjustable); Pulse width:0 to 1000 ms (adjustable).
Electrical Connections: Removable screw terminal.
Temperature Limits: Process: -4 to 194°F (-20 to 90°C);Ambient: -4 to 149°F(-20 to 65°C).
Pressure Limit: 145 psi (1.0 MPa).
Power Requirements: 12 to 24 VDC.
Power Consumption: 2 W.
Display: 2.38 x 1.25" (60.33 x 31.75 mm) LCD.
Totalizing Display Maximum: 9;999;999;999.
Process Connection: See model chart on catalog page.
Enclosure Rating: IP65.
Enclosure Material: ABS plastic.
Weight: See model chart on catalog page.
