DFMT-25A | 1" NPT Digital Flow Transmitter | range 2.2 to 50 GPM (0.5 to 11.36 m3/h) | Dwyer Instruments

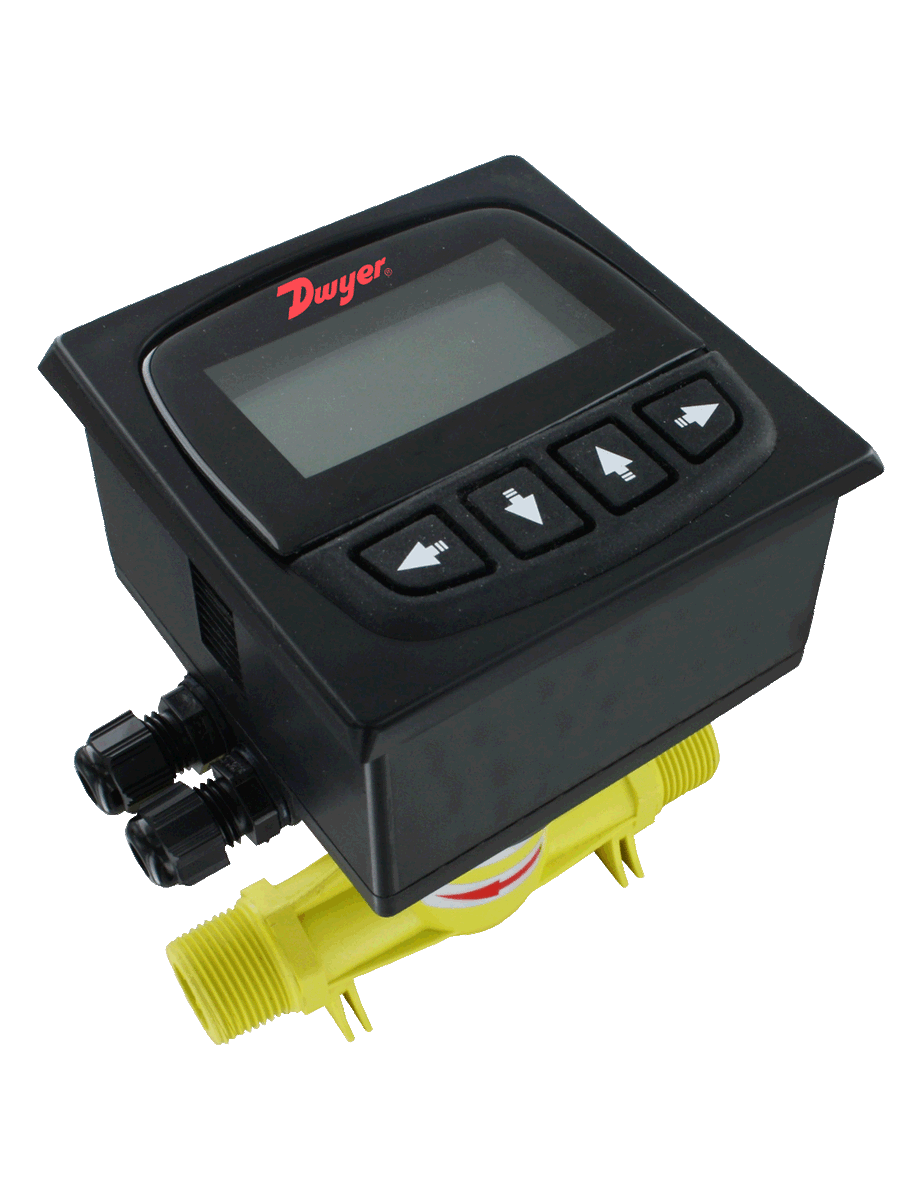

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DFMT-25A

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments DFMT-25A Documents

Instruction Manual Series DFMT Catalog Page More Info

Overview

Details for DFMT-25A

Dwyer Instruments DFMT-25A Digital Flow Transmitter The DFMT-25A from Dwyer Instruments is a highly accurate digital flow transmitter designed to monitor and transmit flow rate data in industrial applications. Featuring a compact and rugged design, this transmitter offers reliable performance in harsh environments. With its 1" NPT connection, the DFMT-25A is compatible with various pipe sizes. It utilizes a piezoresistive silicon sensor to precisely measure flow rates from 0.5 to 25 GPM (gallons per minute). The digital output signal provides accurate flow measurements, making it suitable for monitoring and controlling flow in water, air, and other compatible fluids. The DFMT-25A's compact design allows for easy installation in confined spaces. With its rugged construction and corrosion-resistant materials, it withstands demanding industrial conditions. The transmitter's digital display provides a clear and concise readout of flow rate data in real-time. Key Features and Benefits: * Accurate flow measurement with piezoresistive silicon sensor * 0.5 to 25 GPM flow rate range * 1" NPT connection for easy installation * Rugged construction for harsh environments * Digital output signal for reliable data transmission * Compact design for space-saving installations * Easy-to-read digital display Applications: * Flow monitoring and control in water systems * Compressed air flow measurement * Chemical flow monitoring * HVAC (Heating, Ventilation, Air Conditioning) systems * Industrial equipment and machinery Our HVAC supply store offers the best prices and fast shipping on all your industrial supply needs. Get your Dwyer Instruments DFMT-25A Digital Flow Transmitter today!

Series DFMT Digital Paddlewheel Flow Transmitter

Flow and Total Indication, Easy to Read LCD Display, 4 to 20 mA or Pulse Output

The Series DFMT Digital Paddlewheel Flow Transmitter provides instantaneous, aswell as totalizing flow monitoring. The unit offers a user selectable 4 to 20 mA or pulse output with compact display.

Product Applications

Cooling water monitoring
Cooling towers
Chemical proportioning or blending
Industrial water & wastewater treatment
Fluctuating fluid conductivity applications
Reverse osmosis systems

The large backlit LCD display defines instantaneous as well as cumulative flow withvisual indication bar designating percent of max flow
Long operation life with high accuracy paddlewheel technology and corrosionresistant PVDF sensor
Totalizer is user resettable at any time ideal for single batch totalization
Security password protecting prevents any unauthorized changes

Specifications

Series: DFMT Digital Paddlewheel Flow Transmitter
freeship
Category/Type: Flow
Type: Flow Transmitters
Series: DFMT Digital Paddlewheel Flow Transmitter
Service: Compatible clean liquids.
Range: See model chart on catalog page.
Wetted Materials: Sensor and impeller: PVDF; Shaft: Ceramic; O-rings: Fluoroelastomer.
Accuracy: ±1.5% FS.
Repeatability: ±0.5% FS.
Output: Analog: 4 to 20 mA (750 Ω max. loop resistance);Pulse: NPN square wave output; Frequency: 0 to 2 kHz (adjustable); Pulse width:0 to 1000 ms (adjustable).
Electrical Connections: Removable screw terminal.
Temperature Limits: Process: -4 to 194°F (-20 to 90°C);Ambient: -4 to 149°F(-20 to 65°C).
Pressure Limit: 145 psi (1.0 MPa).
Power Requirements: 12 to 24 VDC.
Power Consumption: 2 W.
Display: 2.38 x 1.25" (60.33 x 31.75 mm) LCD.
Totalizing Display Maximum: 9;999;999;999.
Process Connection: See model chart on catalog page.
Enclosure Rating: IP65.
Enclosure Material: ABS plastic.
Weight: See model chart on catalog page.
