DCV62T1D | 2-1/2" diaphragm valve | integrated coil | NPT connection | 110 VAC | DIN electrical connection | two diaphragms | Cv factor of 136. | Dwyer Instruments

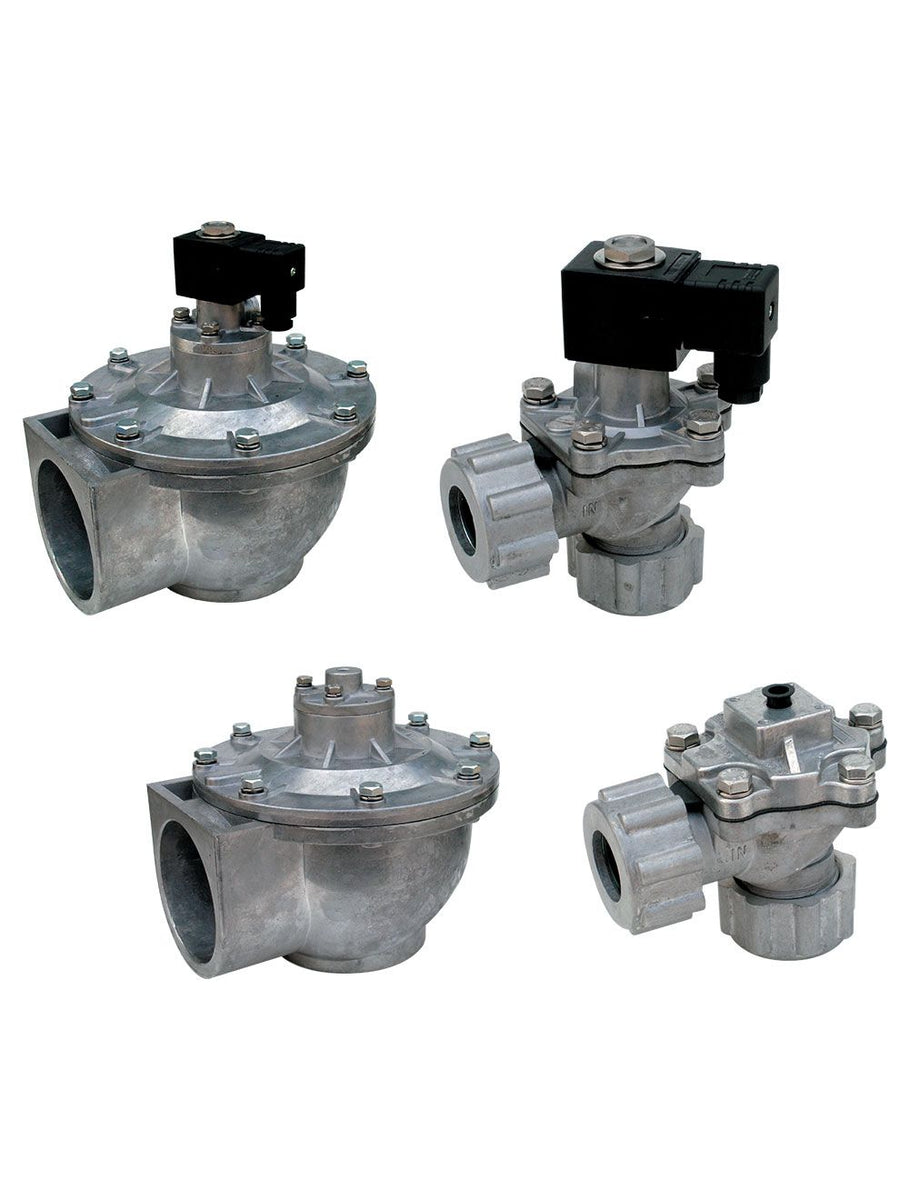

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DCV62T1D

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments DCV62T1D Documents

Instruction Manual Series DCV/RDCV Catalog Page More Info

Overview

Details for DCV62T1D

2.5" NPT 120Vac DIN Diaphragm Valve: DCV62T1D The DCV62T1D from Dwyer Instruments reliably controls fluid flow in industrial applications. This 2.5" NPT valve features a diaphragm actuator, making it suitable for handling corrosive fluids and slurries. The 120Vac power supply ensures reliable operation in various electrical systems. Its rugged construction with a cast iron body and stainless steel diaphragm provides durability and longevity. Key Features: * 2.5" NPT connection for easy installation * Diaphragm actuator for handling harsh fluids * 120Vac power supply for reliable operation * Cast iron body and stainless steel diaphragm for durability * Ideal for controlling fluid flow in industrial applications Applications: * Chemical processing * Water treatment * Food and beverage production * Pharmaceutical manufacturing Our HVAC supply store offers the best prices and fast shipping for your industrial products. Shop now!

Series DCV/RDCV Diaphragm Valve

NPT connections, Easy Installation

The Series DCV/RDCV Diaphragm Valves are ideal for use with the Series DCT1000and Series DCT500 duct collection timer boards for controlling the air pulse in jet pulsetype dust collectors to clean the filters. Both the Series DCV and RDCV have theoption for either coupling or NPT connections. The coupling connection allows for aquick and simple installation. Only the stub pipe and blowtube need to be cleaned anddeburred before the valve is fit into position. The “T” Series DCV has female threadedconnections. Both the “C” and “T” versions have a 90° angle between the inlet andoutlet the most suitable configuration for pulse valve applications. The design offers notonly ease of installation, but also minimal airflow restriction for an exceptional cleaningpulse. The valves are offered in both integrated and remote coil configurations.

Product Applications

Dust collection systems
Bag houses
For use with DCT1000 and DCT500

Thermoplastic polyurethane diaphragm for longer life
High flow factor for effective cleaning
Valve can be mounted in any position
Quick on & off response time

Specifications

Series: DCV/RDCV Diaphragm Valve
Category/Type: Valves
Type: Valves
Valve Type: Diaphragm Pulse
Series: DCV/RDCV Diaphragm Valve
Service: Compatible gases; filtered and oil free.
Wetted Materials: Body: aluminum; Trim: 304 SS; Diaphragm and Seals: NBR; Diaphragm Disc: polyamide.
Other Materials: Cover: aluminum; Body Bolts and Spring: 304 SS.
Pressure Limits: Minimum of 4.4 psi (0.3 bar); maximum of 124.7 psi (8.6 bar).
Temperature Limits: Ambient: -4 to 140°F (-20 to 60°C) for RDCV models; -4 to 122°F (-20 to 50°C) for DCV models; Operating: -4 to 185°F (-20 to 85°C).
Power Requirements: 110 VAC; 220 VAC; or 24 VDC for DCV models.
Power Consumption: 12 W; inrush: 17 VA; holding: 14.5 VA for DCV models.
Electrical Connection: DIN connection for DCV models.
Enclosure Rating: NEMA 4X (IP65) for DCV models.
Process Connection: See Catalog page.
Mounting Orientation: Any position.
Agency Approval: CE.
