DCV45T1D | 1-1/2" diaphragm valve | integrated coil | NPT connection | 110 VAC | DIN electrical connection | two diaphragms | Cv factor of 51. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DCV45T1D

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments DCV45T1D Documents

Instruction Manual Series DCV/RDCV Catalog Page More Info

Overview

Details for DCV45T1D

120V, 1.5" NPT Diaphragm Valve (DCV45T1D) by Dwyer InstrumentsThe Dwyer Instruments DCV45T1D diaphragm valve is a pneumatically actuated valve designed for precise control of fluid flow in industrial applications. This valve features a 1.5" NPT connection, making it suitable for use with standard piping systems. It operates on a 120V power supply and has a DIN-style electrical connection for easy installation and maintenance. The valve's diaphragm construction provides excellent sealing capabilities, even with dirty or corrosive fluids, making it ideal for a wide range of applications. The DCV45T1D is constructed with durable materials to ensure long-lasting performance in demanding industrial environments. Our HVAC supply store - We offer the best prices and fast shipping for your products!

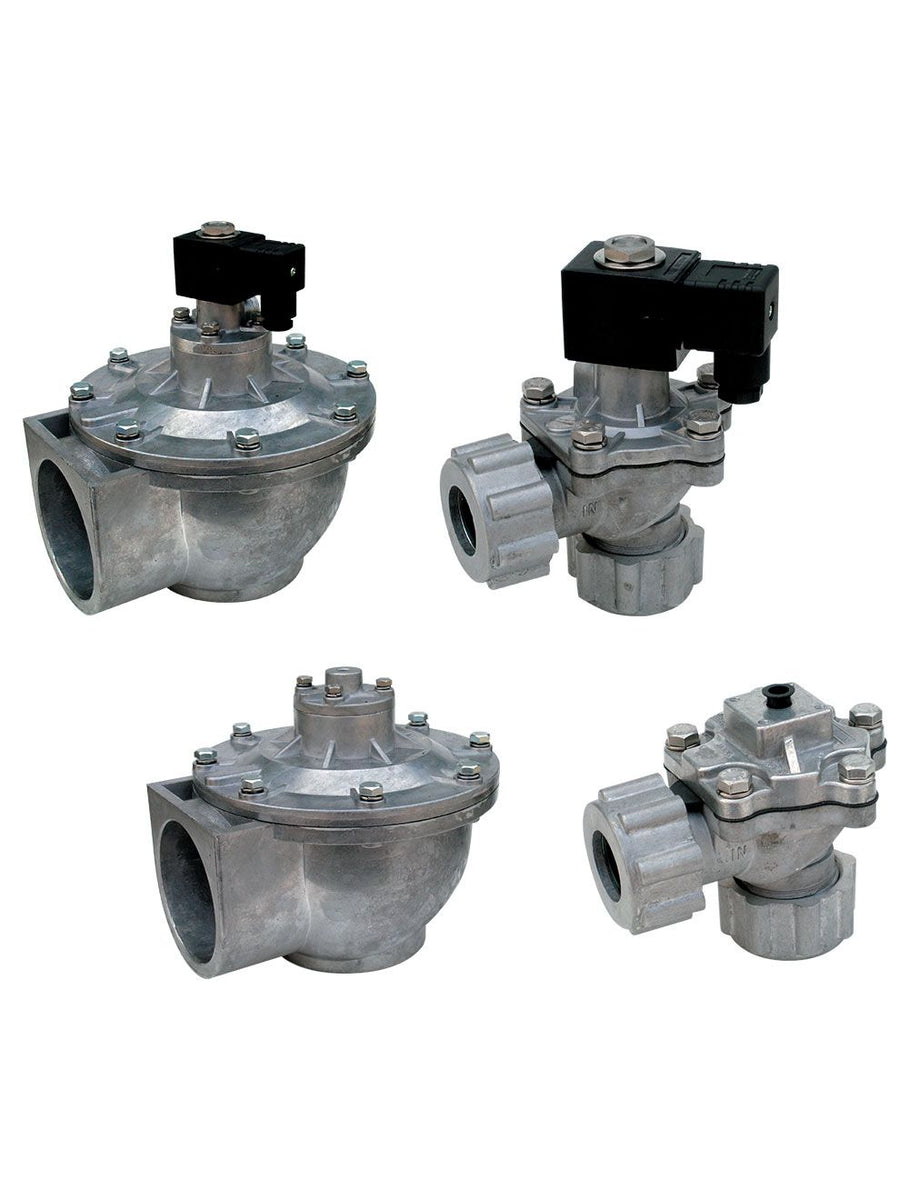

Series DCV/RDCV Diaphragm Valve

NPT connections, Easy Installation

The Series DCV/RDCV Diaphragm Valves are ideal for use with the Series DCT1000and Series DCT500 duct collection timer boards for controlling the air pulse in jet pulsetype dust collectors to clean the filters. Both the Series DCV and RDCV have theoption for either coupling or NPT connections. The coupling connection allows for aquick and simple installation. Only the stub pipe and blowtube need to be cleaned anddeburred before the valve is fit into position. The “T” Series DCV has female threadedconnections. Both the “C” and “T” versions have a 90° angle between the inlet andoutlet the most suitable configuration for pulse valve applications. The design offers notonly ease of installation, but also minimal airflow restriction for an exceptional cleaningpulse. The valves are offered in both integrated and remote coil configurations.

Product Applications

Dust collection systems
Bag houses
For use with DCT1000 and DCT500

Thermoplastic polyurethane diaphragm for longer life
High flow factor for effective cleaning
Valve can be mounted in any position
Quick on & off response time

Specifications

Series: DCV/RDCV Diaphragm Valve
Category/Type: Valves
Type: Valves
Valve Type: Diaphragm Pulse
Series: DCV/RDCV Diaphragm Valve
Service: Compatible gases; filtered and oil free.
Wetted Materials: Body: aluminum; Trim: 304 SS; Diaphragm and Seals: NBR; Diaphragm Disc: polyamide.
Other Materials: Cover: aluminum; Body Bolts and Spring: 304 SS.
Pressure Limits: Minimum of 4.4 psi (0.3 bar); maximum of 124.7 psi (8.6 bar).
Temperature Limits: Ambient: -4 to 140°F (-20 to 60°C) for RDCV models; -4 to 122°F (-20 to 50°C) for DCV models; Operating: -4 to 185°F (-20 to 85°C).
Power Requirements: 110 VAC; 220 VAC; or 24 VDC for DCV models.
Power Consumption: 12 W; inrush: 17 VA; holding: 14.5 VA for DCV models.
Electrical Connection: DIN connection for DCV models.
Enclosure Rating: NEMA 4X (IP65) for DCV models.
Process Connection: See Catalog page.
Mounting Orientation: Any position.
Agency Approval: CE.
