DCV25T1D | 1" diaphragm valve | integrated coil | NPT connection | 110 VAC | DIN electrical connection | Cv factor of 23. | Dwyer Instruments

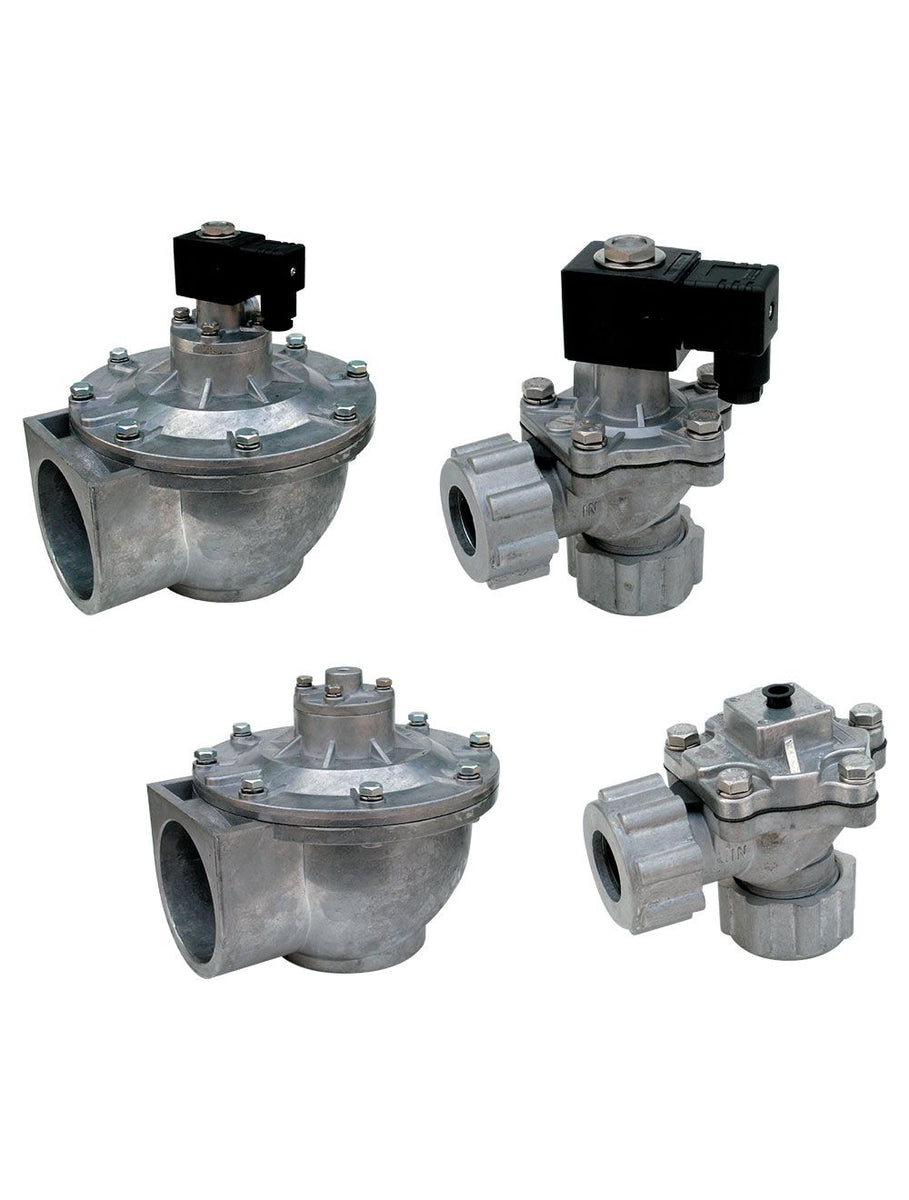

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DCV25T1D

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments DCV25T1D Documents

Instruction Manual Series DCV/RDCV Catalog Page More Info

Overview

Details for DCV25T1D

Dwyer Instruments DCV25T1D: 1" NPT 120Vac DIN Diaphragm Valve The Dwyer Instruments DCV25T1D is a reliable and precise diaphragm valve designed for industrial applications. This valve features a 1" NPT connection and operates on 120Vac power. Key Features: - 1" NPT connection for easy installation - 120Vac operation for compatibility with standard industrial power systems - Durable diaphragm construction for reliable performance - Compact design for space-saving installations Benefits: - Regulates fluid flow precisely with a diaphragm design - Simple installation process with NPT connections - Reliable operation in demanding industrial environments - Space-efficient design for crowded installations Applications: The DCV25T1D diaphragm valve is commonly used in industrial applications such as: - Fluid control in pneumatic and hydraulic systems - Chemical processing and handling - Food and beverage processing - HVAC systems Our HVAC supply store offers the best prices and fast shipping for your industrial supply needs. Order the Dwyer Instruments DCV25T1D diaphragm valve today and experience the difference in quality and reliability.

Series DCV/RDCV Diaphragm Valve

NPT connections, Easy Installation

The Series DCV/RDCV Diaphragm Valves are ideal for use with the Series DCT1000and Series DCT500 duct collection timer boards for controlling the air pulse in jet pulsetype dust collectors to clean the filters. Both the Series DCV and RDCV have theoption for either coupling or NPT connections. The coupling connection allows for aquick and simple installation. Only the stub pipe and blowtube need to be cleaned anddeburred before the valve is fit into position. The “T” Series DCV has female threadedconnections. Both the “C” and “T” versions have a 90° angle between the inlet andoutlet the most suitable configuration for pulse valve applications. The design offers notonly ease of installation, but also minimal airflow restriction for an exceptional cleaningpulse. The valves are offered in both integrated and remote coil configurations.

Product Applications

Dust collection systems
Bag houses
For use with DCT1000 and DCT500

Thermoplastic polyurethane diaphragm for longer life
High flow factor for effective cleaning
Valve can be mounted in any position
Quick on & off response time

Specifications

Series: DCV/RDCV Diaphragm Valve
Category/Type: Valves
Type: Valves
Valve Type: Diaphragm Pulse
Series: DCV/RDCV Diaphragm Valve
Service: Compatible gases; filtered and oil free.
Wetted Materials: Body: aluminum; Trim: 304 SS; Diaphragm and Seals: NBR; Diaphragm Disc: polyamide.
Other Materials: Cover: aluminum; Body Bolts and Spring: 304 SS.
Pressure Limits: Minimum of 4.4 psi (0.3 bar); maximum of 124.7 psi (8.6 bar).
Temperature Limits: Ambient: -4 to 140°F (-20 to 60°C) for RDCV models; -4 to 122°F (-20 to 50°C) for DCV models; Operating: -4 to 185°F (-20 to 85°C).
Power Requirements: 110 VAC; 220 VAC; or 24 VDC for DCV models.
Power Consumption: 12 W; inrush: 17 VA; holding: 14.5 VA for DCV models.
Electrical Connection: DIN connection for DCV models.
Enclosure Rating: NEMA 4X (IP65) for DCV models.
Process Connection: See Catalog page.
Mounting Orientation: Any position.
Agency Approval: CE.
