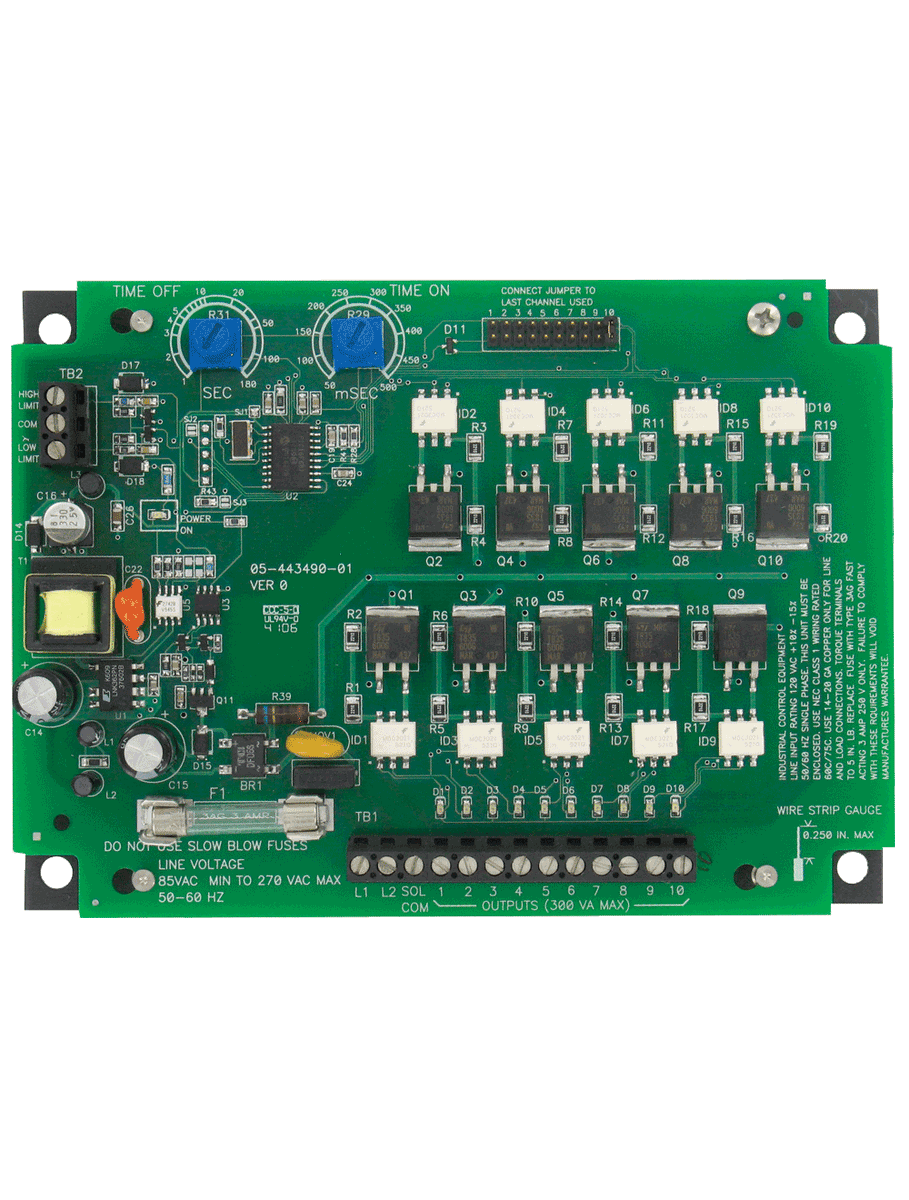

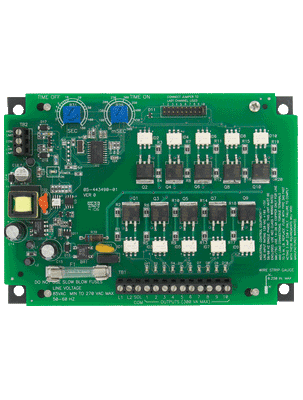

DCT622 | Timer controller | 22 channels. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DCT622

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments DCT622 Documents

DCT600 Series DCT600 Catalog Page DCT600 More Info

Overview

Details for DCT622

Introducing the DCT622 Timer Controller from Dwyer Instruments, an exceptional solution for automating complex industrial processes with precision and reliability. This advanced controller boasts 22 independent channels, providing exceptional flexibility for managing multiple timing sequences simultaneously. Featuring a user-friendly interface and intuitive programming, the DCT622 simplifies setup and operation, saving you valuable time and effort. Its advanced features include programmable time intervals, on/off delays, and a wide range of timing modes to cater to diverse application needs. The rugged construction and durable components of the DCT622 ensure reliable performance even in harsh industrial environments. Its compact design makes it easy to integrate into existing systems, while the clear LED display provides real-time status updates for convenient monitoring. As engineers and maintenance professionals, you demand precision and dependability in your industrial equipment. Choose the Dwyer Instruments DCT622 Timer Controller for exceptional performance, enhanced productivity, and peace of mind. Our HVAC supply store offers the best prices and fast shipping for the DCT622 Timer Controller. Shop now to equip your industrial operations with the latest and most efficient technology.

Series DCT600 Timer Controller

With Universal Power for Both 120 and 220 VAC

The Series DCT600 Timer Controller is a timing system for pulse-jet type dust collectors or pneumatic conveying systems in either continuous or on-demand cleaning applications. It provides either 4, 6, 10, 22 or 32 channels. The DCT600 was designed for ease of installation in your dust collector system. For installations requiring fewer channels than available on the board, a shorting plug (DCT604 & DCT610) or dip switches (DCT622 & DCT632) allows selection of the last used channel. Time-on and time-off settings are selected using two potentiometers. High-limit and low-limit control inputs are provided for use with on-demand systems. Units can also work in continuous clean mode. The new enhanced board circuitry of the DCT600 synchronizes the on-time pulse to the power line to achieve a pulse stability of ±1 msec. For safety, the control circuitry including the control inputs and the last channel jumper is isolated from the power line.

Product Applications

Dust collection
Pneumatic conveying

Better synchronized on-time pulse to the power line for better pulse stability
Adjustable potentiometers to select time-on and time-off settings
Simple and easy to use design
