DCT506A | Low cost timer controller | 6 channels. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DCT506A

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments DCT506A Documents

Instruction Manual Series DCT500A Catalog Page DCT500A More Info

Overview

Details for DCT506A

DCT506A Timer Controller: Precision Control for Industrial AutomationThe Dwyer Instruments DCT506A Timer Controller offers precise timing control for a wide range of industrial applications. This 6-channel timer features a user-friendly interface, allowing for easy programming and operation. With its versatility and reliability, the DCT506A is ideal for various automation processes, including equipment sequencing, process timing, and alarm activation.Key Features:- 6 independent timer channels- Time ranges from 0.1 seconds to 9999 hours- 120 VAC operation- Millisecond resolution- Repeat, interval, and delayed start modes- Event counting and totalizing functions- DIN rail mountable- UL/CSA approvalBenefits:- Accurate and reliable timing control for industrial processes- Versatile programming options for flexible automation- User-friendly interface for easy setup and operation- Compact design saves space in control panels- Robust construction ensures long-lasting performanceApplications:- Equipment sequencing- Process timing- Alarm activation- Data logging- Industrial automationOur HVAC supply store: Your Trusted Source for Industrial ProductsAt Our HVAC supply store, we offer the best prices and fast shipping on our extensive range of industrial products. Trust us to provide the highest quality equipment and exceptional customer service for all your industrial supply needs. Shop now and elevate your operations with the Dwyer Instruments DCT506A Timer Controller!

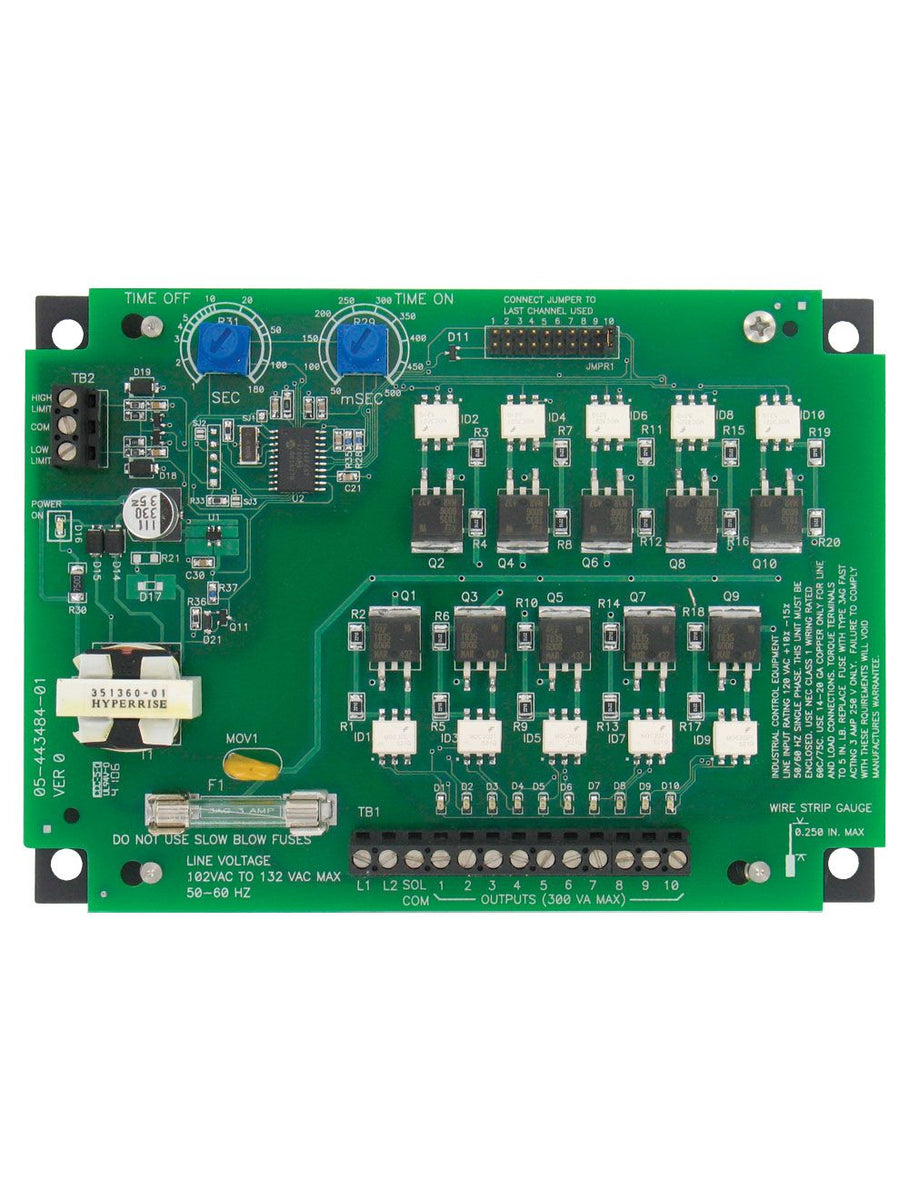

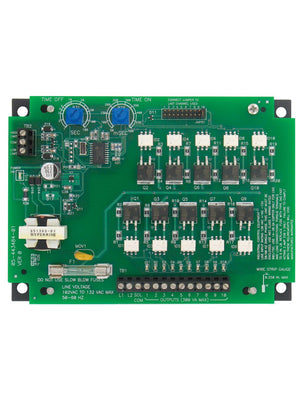

Series DCT500A Low Cost Timer Controller

Compact, Easy to Use; 4, 6 or 10 Channels

Ideal for pneumatic conveying systems, the Series DCT500A Low Cost Timer Controller is designed to provide continuous or on-demand cleaning for receivers and pulse jet systems. Available in either 4, 6 or 10 channels, each unit is the same size, minimizing enclosure space and reducing overall system installation cost.

The DCT500A is simple and easy to use. Time-On and Time-Off settings are selected using two potentiometers. High Limit and Low Limit control inputs are provided for use with on demand systems. The new enhanced board circuitry of the DCT500A synchronizes the on-time pulse to the power line to achieve a pulse stability of ±1 msec.

For added safety, the control circuitry including the control inputs are isolated from the line voltage.

To meet your system requirements, an optional weatherproof enclosure is available. For on demand systems, a Dwyer Series A3000 Photohelic® gage or Series 1800 Pressure Switch may be used with the DCT500A.

Product Applications

Dust collection
Pneumatic conveying
Cement batch plants

Simple and easy to use design
Optional weatherproof enclosure available
