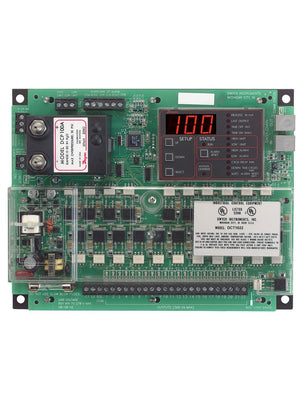

DCT1010 | Master controller | 10 channels. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DCT1010

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments DCT1010 Documents

DCT1000 DCP100/DCP200 Series DCT1000 Catalog Page DCT1000 More Info

Overview

Details for DCT1010

10 CHANNEL DUST COLL TIME CNTR Dwyer's DCT1010 Dust Collector Time Controller is ideal for monitoring dust collection systems. It features 10 channels, each of which can be programmed to activate a relay at a specific time interval. This allows you to automate the cleaning cycle of your dust collector, ensuring optimal performance and extending its lifespan. The DCT1010 is easy to use, with a simple 3-button interface and a large LCD display. It can be programmed to operate in either manual or automatic mode, and offers a variety of programming options. The unit also includes a built-in real-time clock, so you can be sure that your cleaning cycles will be performed on time. The DCT1010 is a versatile and reliable solution for monitoring dust collection systems. It is perfect for use in industrial and commercial applications, and can help you to improve the efficiency and safety of your operation. Our HVAC supply store offers the best prices and fast shipping for your products!

Series DCT1000 Dust Collector Timer Controller

Modular Design, User Friendly, Up to 22 Channels

The SERIES DCT1000 Dust Collector Timer Controller simplifies on-demand cleaning requirements by eliminating the need for external devices such as pressure switches, relays, and timers. The modular design allows for use as a continuous cleaning control or on-demand cleaning control using the optional plug-in pressure module. The DCT1000 is the same size for 6, 10, and 22 channels, allowing one board size to be the standard on one enclosure.

Product Applications

Dust collection
Pneumatic conveying

Universal power requirements for both domestic and overseas use
Standard mounting holes to other dust collector controllers for use in existing installations
Able to automatically detect any channel expander connected

Specifications

Series: DCT1000 Dust Collector Timer Controller
Category/Type: Process Control
Type: Timer Boards
Series: DCT1000 Dust Collector Timer Controller
DCT1000 TIMER CONTROLLER
Output Channels: 6; 10 & 22 channels. Expandable to 255 channels using DCT1122 & DCT1110 channel expander boards.
Power Requirements: 85 to 270 VAC; 50 or 60 Hz.
Power Consumption: 5 W.
Solenoid Supply: 3A maximum per channel.
Fuse: 3 A @ 250 VAC. Low voltage control circuitry is isolated from the line voltage for system safety.
Temperature Limits: -40 to 140°F (-40 to 60°C).
Storage Temperature Limits: -40 to 176°F (-40 to 80°C).
On-time: 10 msec to 600 msec; 10 msec steps.
On-time Accuracy: ±10 msec.
Off-time: 1 second to 255 seconds; 1 second steps.
Off-time Accuracy: ±1% of the value or ±50 msec; whichever is greater.
Weight: 1 lb; 3.0 oz (538.6 g).
Agency Approvals: cUL; UL.
DCP PRESSURE MODULE
Pressure Ranges: 10" w.c. or 20" w.c.
Temperature Limits: -40 to 140°F (-40 to 60°C).
Pressure Limits: 10 psi (68.95 kPa).
Pressure Limits (differential): 10 psi (68.95 kPa).
Accuracy: ±1.5% F.S. @ 73°F (22.8°C).
Output Signal: 4-20 mA.
Alarm Contacts: 1.5A inductive load; 3A resistive load @ 30 VAC or 40 VDC.
Process Connections: Two barbed connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm) I.D. tubing.
Weight: 5.5 oz (155.9 g).
