DC2800CE1S02100000 | Digital Controller for use with 100 to 240Vac Power | Honeywell

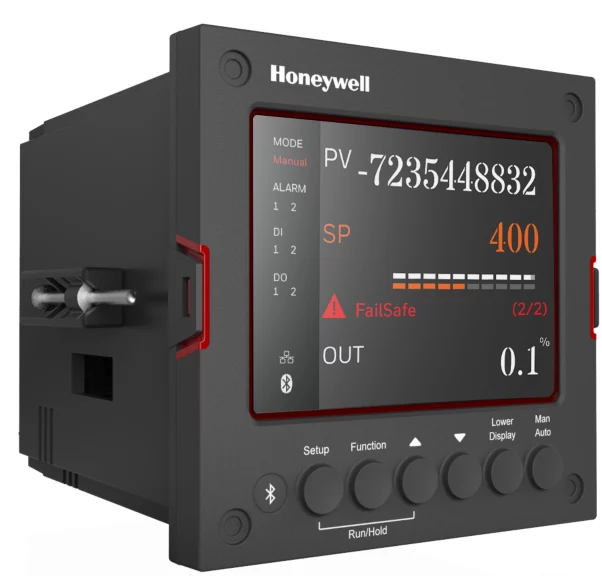

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DC2800CE1S02100000
Documents and manuals
Honeywell DC2800CE1S02100000 Documents
Overview
Details for DC2800CE1S02100000
The UDC 2800 is the next generation of panel-based temperature controller. It’s more connected, more accurate, faster and more efficient, delivering improved performance and a lower cost of ownership. With Bluetooth and remote connectivity, app-based configuration and a full-color TFT screen it’s an easy to use, powerful solution for single loop control of furnaces, ovens, boilers, heaters, environmental chambers, cookers, dryers and freezers.
The UDC2800 delivers 0.15% accuracy and a market-leading scanning speed of 100ms to capture trends quickly and enable users to achieve their targeted temperature profile. It supports up to 64 setpoints segment and four PID sets, with RTD, TC, mV, mA, RH, carbon and oxygen inputs as standard, as well as two universal analogue inputs. UDC2800 can meet the needs of even the most complex operations. The controller is ASM2750F aerospace standard compliant as well as NEMA4X for food and beverage wash downs. The controller is a single solution upgrade from both UDC2500 and UDC3200 controllers with a single solution for simpler maintenance, stock management and orders. It’s also entirely backwards compatible, retaining the same 1/4 DIN form factor, terminal arrangement and back panel as previous models.
The UDC2800 delivers 0.15% accuracy and a market-leading scanning speed of 100ms to capture trends quickly and enable users to achieve their targeted temperature profile. It supports up to 64 setpoints segment and four PID sets, with RTD, TC, mV, mA, RH, carbon and oxygen inputs as standard, as well as two universal analogue inputs. UDC2800 can meet the needs of even the most complex operations. The controller is ASM2750F aerospace standard compliant as well as NEMA4X for food and beverage wash downs. The controller is a single solution upgrade from both UDC2500 and UDC3200 controllers with a single solution for simpler maintenance, stock management and orders. It’s also entirely backwards compatible, retaining the same 1/4 DIN form factor, terminal arrangement and back panel as previous models.
Specifications
Item Number | DC2800CE1S02100000 |
Brand | Honeywell |
